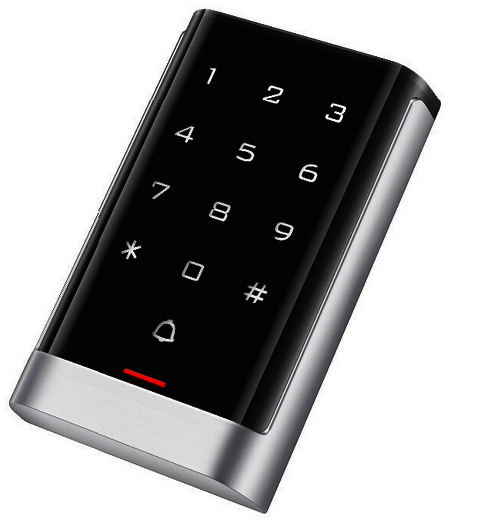

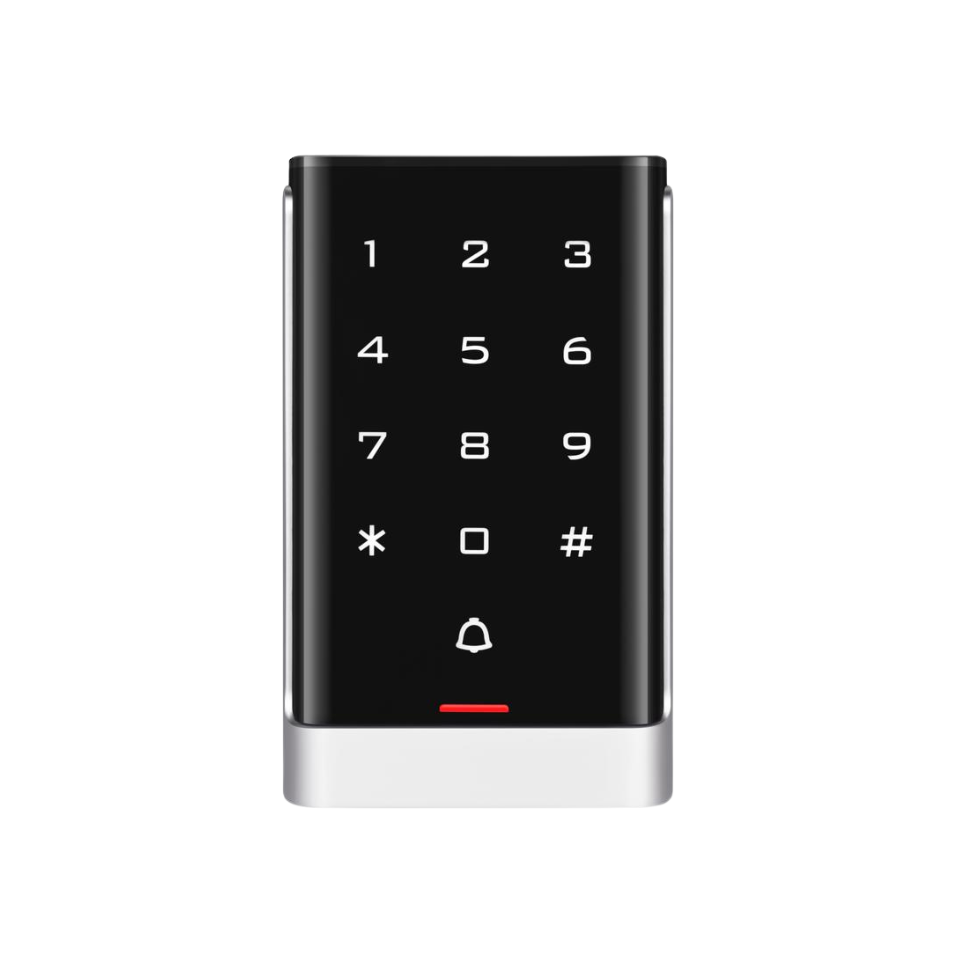

EL-T1102EM Touch Access Keypad Controller
The EL-T1102EM is an anti-vandal touch access controller designed for secure entry management. It features a sleek metal housing and supports dual authentication methods for versatile user access.
-
User Capacity: Supports up to 2,000 unique cards or PINs.
-
Access Methods: Provides flexible door opening options via PIN or 125kHz EM Card.
-
Reading Performance: Maximum card reading distance of 20mm to 40mm (1.6”).
-
Construction: Durable anti-vandal metal housing for enhanced physical security.
-
Power Requirements: Operates on a standard DC12V input voltage.
-
Communication Interface: Equipped with a 26-bit Wiegand interface.
-
Environmental Ratings:
-
Standard: IP40 rated for dry indoor use.
-
Enhanced Version: Also available in an IP68 rated version (dust tight and waterproof up to 1m).
-
-
System Compatibility: Can be used as a standalone unit or paired with an MX63 Elock X Access Controller.
-
Dimensions: Compact profile measuring 119mm (H) x 73mm (W) x 23mm (D).
