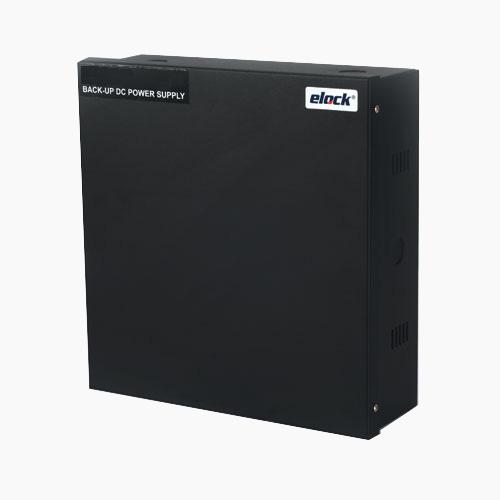

KY-150 12V 5A DC Regulated Power Supply

The KY-150 power supply unit is constructed with built-in backup battery charger, over load protection device and output voltage adjustment capability. An ideal power supply unit for household and office usage.

Specification:

  • Input Voltage: 220 ~ 240 VAC
  • Input Frequency: 50~60 Hz
  • Output No Load Voltage: 13.5 VDC
  • Output Rated Voltage: 13.0 VDC
  • Output Rated Current: 5.0 A DC
  • Load Regulation: NL to FL3%
  • Battery Low Cut-off: 10.5 VDC
  • Operating Temperature: 0 ~ 65° C
  • Casing Surface Finishing: Oven baked epoxy powder coating
  • Dimension: 245 mm (W) x 255 mm (H) x 88 mm (D)

Key Features:

  • Over load protection
  • Built-in backup battery charger
  • Batter low cut-off
  • Output voltage adjustment

Product Code : KY-150

12V 5A DC Regulated Power Supply KY-150

Download Our Data Sheet Here
