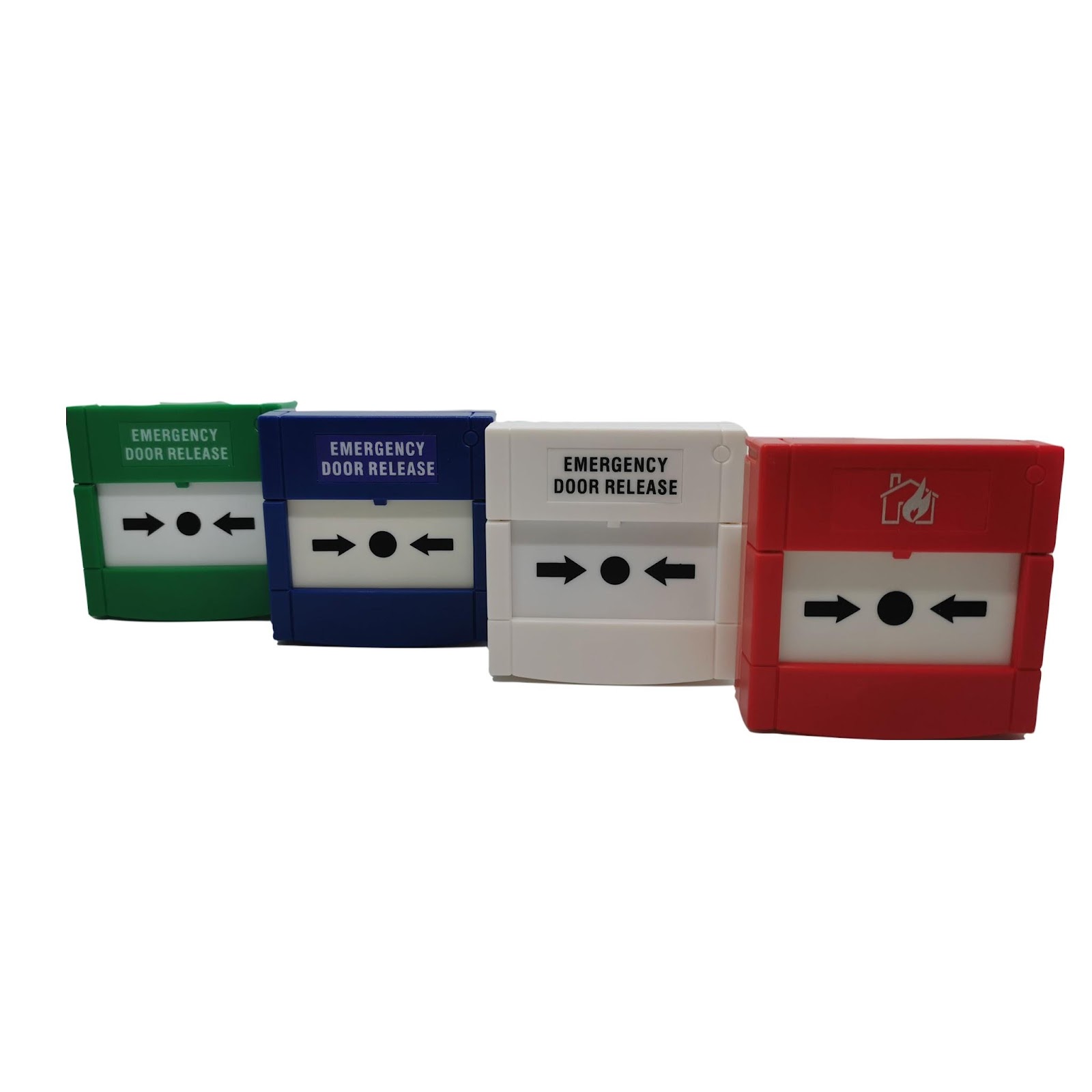

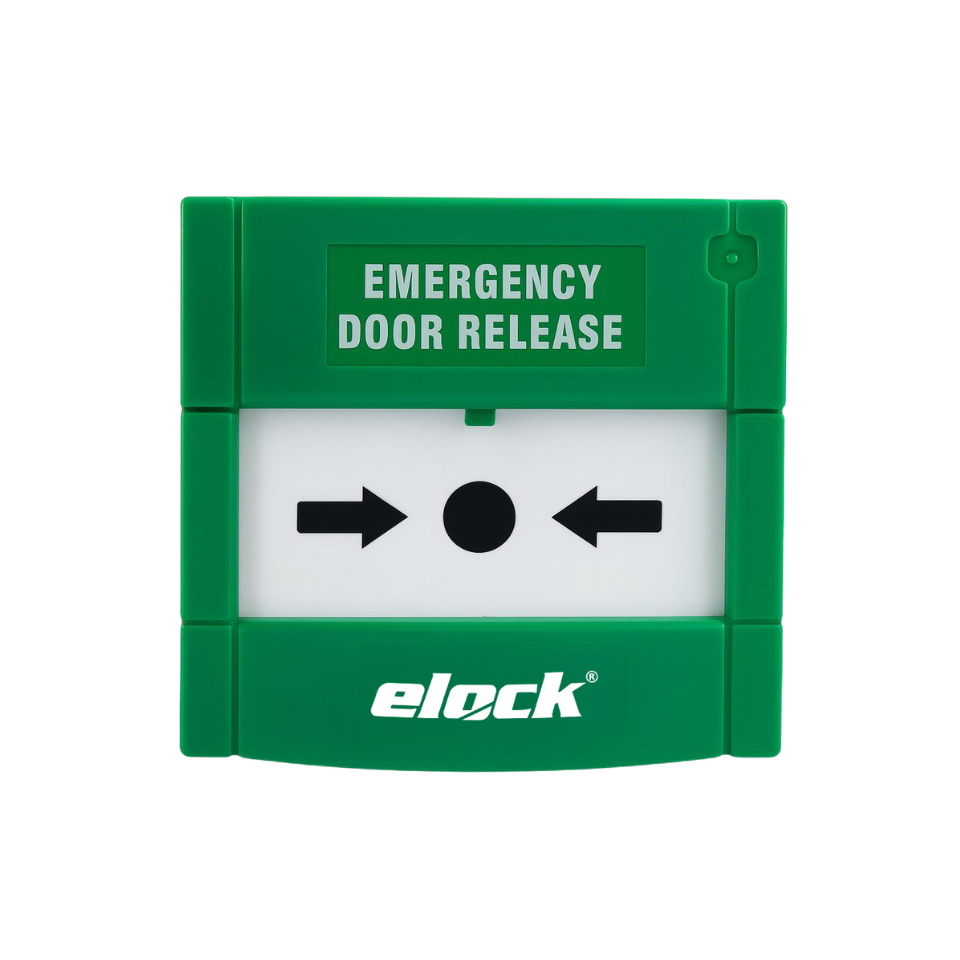

EM201 Resettable Emergency Door Release
The EM201 is a resettable emergency door release designed for reliable safety operation in critical situations. Built with ABS plastic housing and designed for both flush mount and surface mount installations, it is a durable and versatile choice. Featuring DPDT contacts (2NO/2NC/2COM), it provides enhanced wiring flexibility compared to standard models. With a mechanical life of 500,000 cycles and an operating temperature range of -30°C to +70°C, the EM201 ensures long-lasting, dependable performance.
• Power Supply: DC12V / DC24V
• Contact Rating: 5A @ 12/24V DC
• Contact Type: DPDT (2NO/2NC/2COM)
• Operating Temperature: -30°C to +70°C
• Mounting Type: Flush Mount / Surface Mount
• Material: ABS Plastic
• Mechanical Life: 500,000 Aging Test Qualified
• Color: Green Only
• Dimension: 87 (H) × 52 (D) × 87 (W) mm
