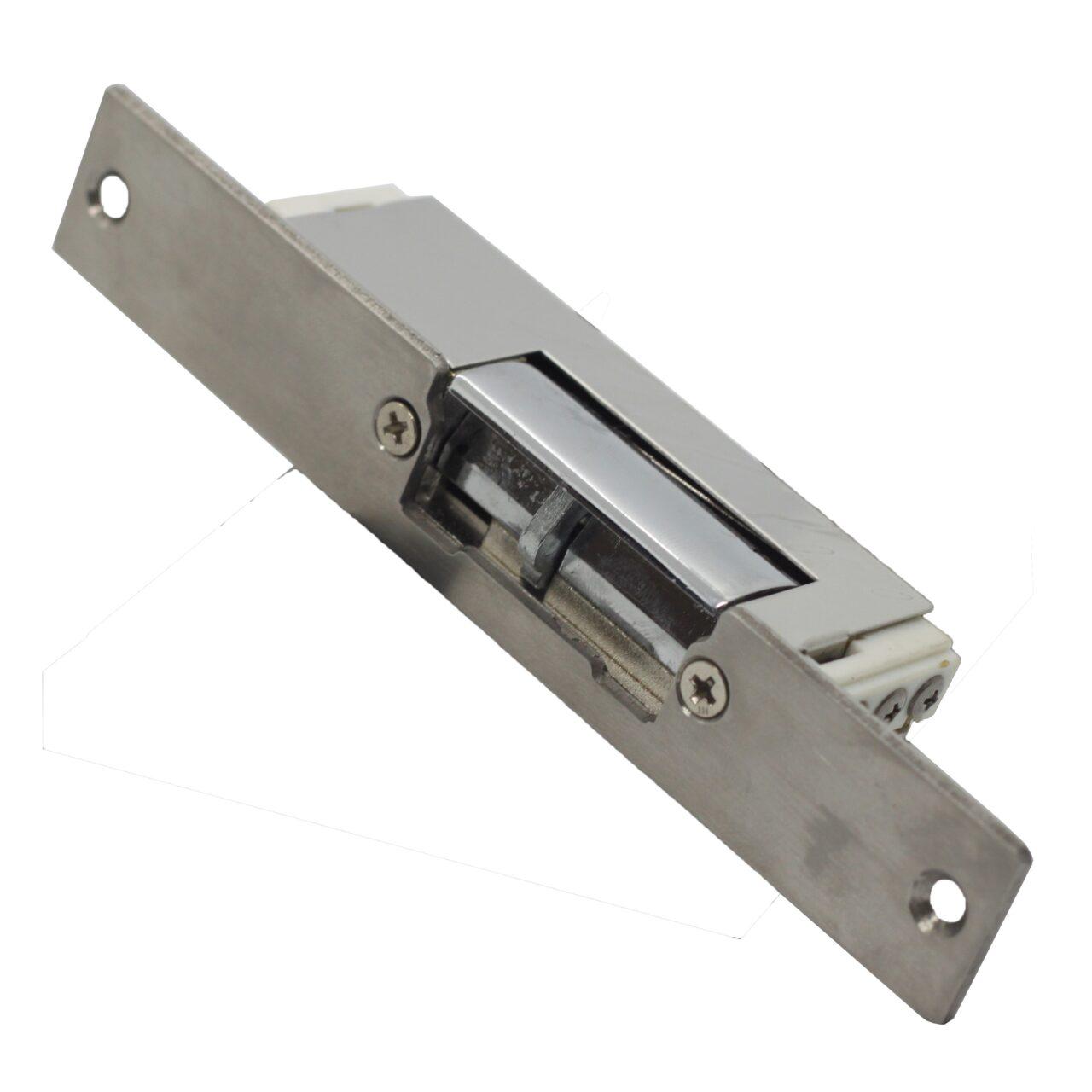

S210M Fail-Secure Strike Lock
The S210M Strike Lock is a fail-secure locking solution designed for offices and narrow frame doors, providing reliable security with a compact form factor. With a holding force of 440 lbs (200kg), it operates on DC12V and has a low current draw of 190mA, making it energy efficient.
This model features a monitored door signal output for integration with access control systems, enabling real-time door status monitoring. Designed for dry indoor environments (IP40 rated), it is ideal for wooden or metal narrow frame doors where space is limited.
• Holding Force: 440 lbs (200kg)
• Power Supply: DC12V
• Current: 190 mA
• IP Rating: IP40 (Dry Indoor)
• Door Signal: YES (Monitored)
• Time Delay: NO
• Security Type: Power Off Lock (Fail-Secure)
• Suitable For: Offices, narrow frame wooden or metal doors
• Dimensions: 160 (H) x 31 (D) x 24 (W) mm
