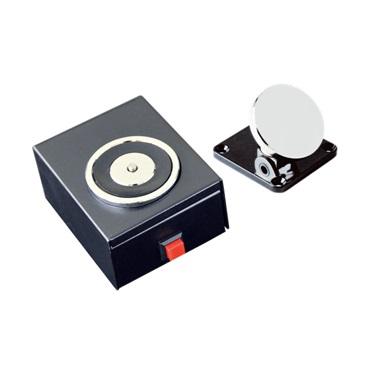

ELOCK EL-DH-602 is a standard type wall mount door holder which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.


  • Input Voltage: 12/24VDC +/-10%
  • Current Draw: 12V/140mA 24V/70mA
  • Holding Force: 50Kg (110lbs)
  • Dimensions: L80 x W80 x H105 (mm)
  • Weight: 1.0Kg
  • Manual door release button
  • Suitable for all kind of single & double smokeproof doors

Product Code : EL-DH-602

Extended Wall Mount Door Holder

Download Our Data Sheet Here
