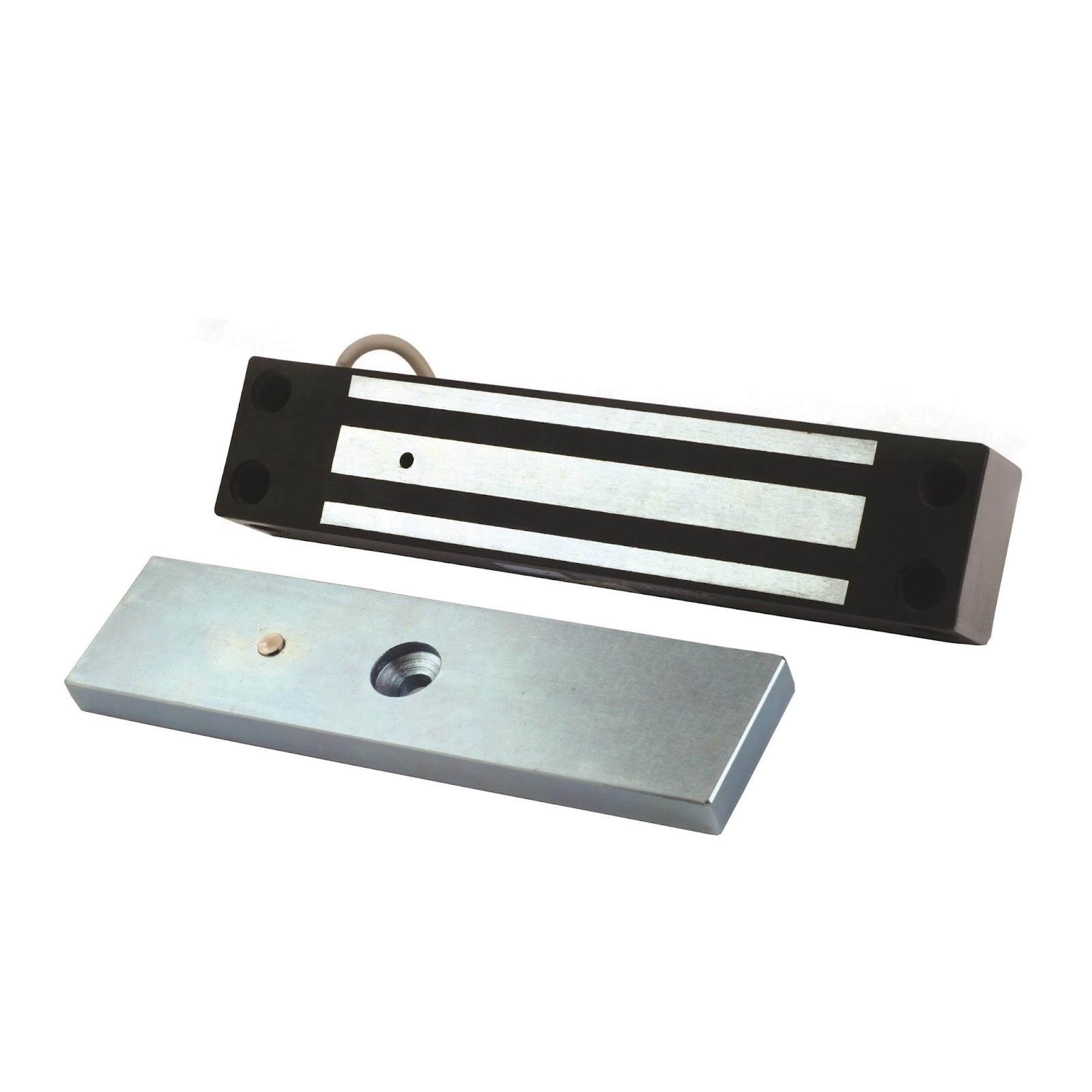

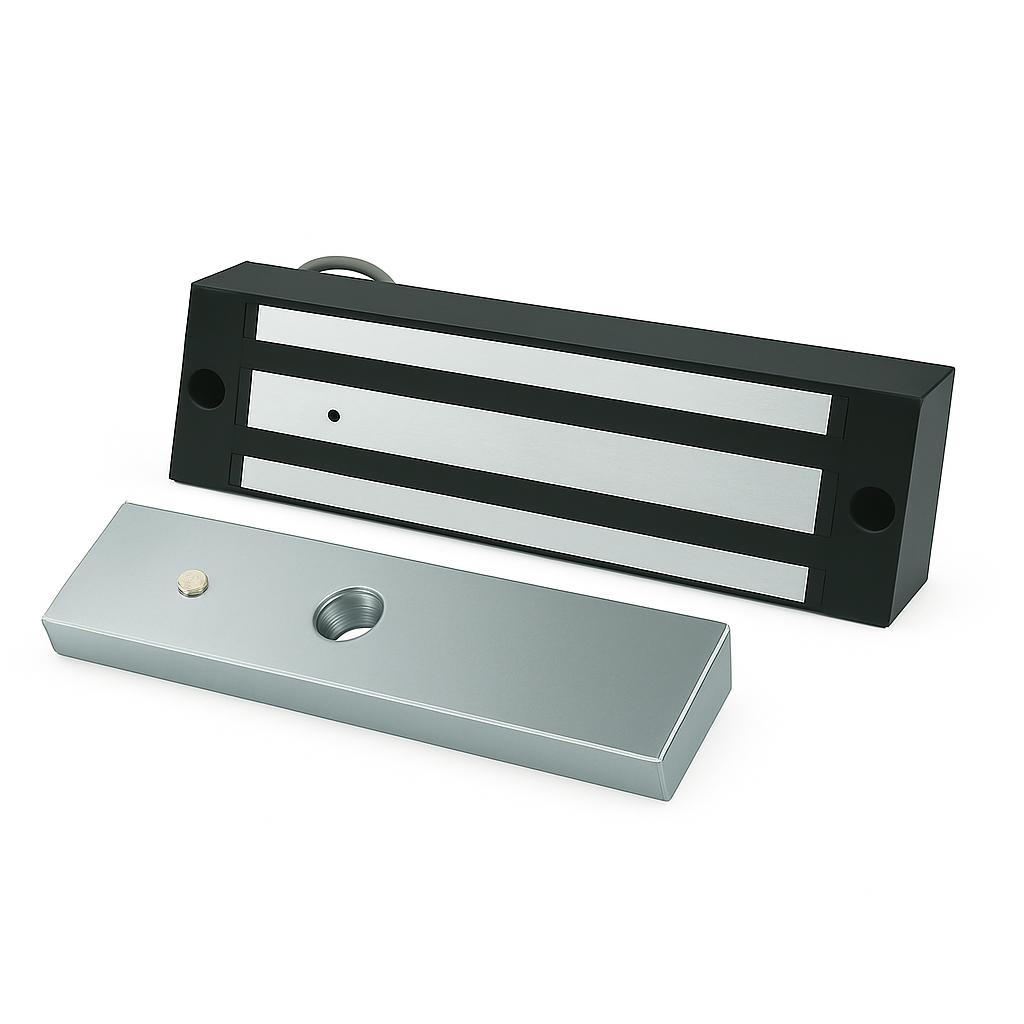

ELOCK-800S Stainless Steel Gate Lock

The Elock-800S electromagnetic lock is designed with stainless steel housing. Capable of holding doors that weigh up to 800lbs.


  • Holding Force: 800lbs
  • Operating Voltage: 12V/24VDC
  • Current Consumption: 500mA/250mA
  • Lock Type: Fail-safe type
  • Dimension: 220mm x 46mm x 29mm
  • Stainless steel housing
  • Fully sealed electronics
  • Optional Accessories: EL-BK-L800S L Bracket ;EL-BK-Z800S Z Bracket
  • Product Code : ELOCK-800S 800lbs

Download Our Data Sheet Here
