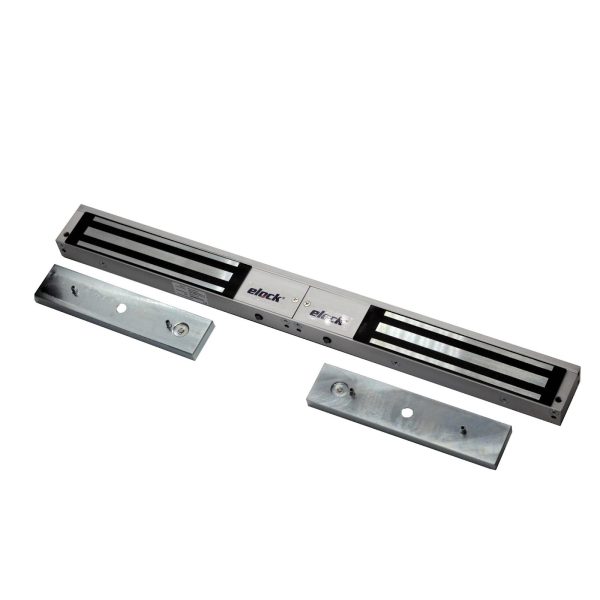

ELOCK-600L x 2 EM Lock

The Elock-600Lx2 electromagnetic lock is designed for dual leaf door type. Equipped with door monitoring function and is capable of holding doors weighing up to 600lbs on each leaves.


  • Holding Force: 2 x 600lbs
  • Operating Voltage: Dual voltage 12V/24VDC
  • Current Consumption: 2 x (500mA/250mA)
  • Lock Type: Fail-safe type
  • Dimension: 250mm x 41mm x 26mm
  • MOV surge protection Push-off button on armature for instant release LED, magnetic bond sensor N.O / N.C / Relay
  • Optional Accessories: EL-BK-L600x2 L Bracket; EL-BK-Z600x2 ZL Bracket
  • Product Code: ELOCK-600Lx2

Download Our Data Sheet Here
