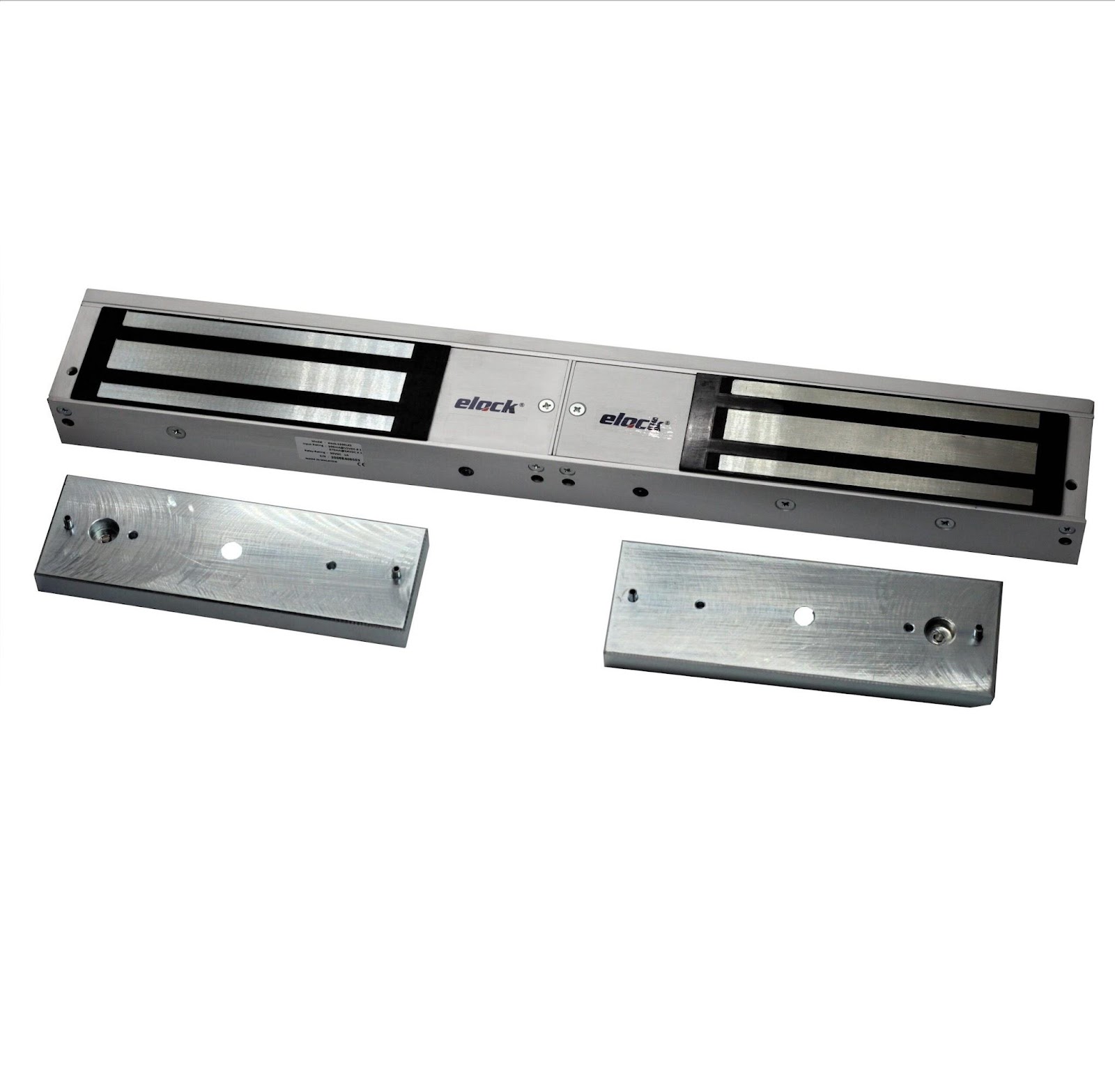

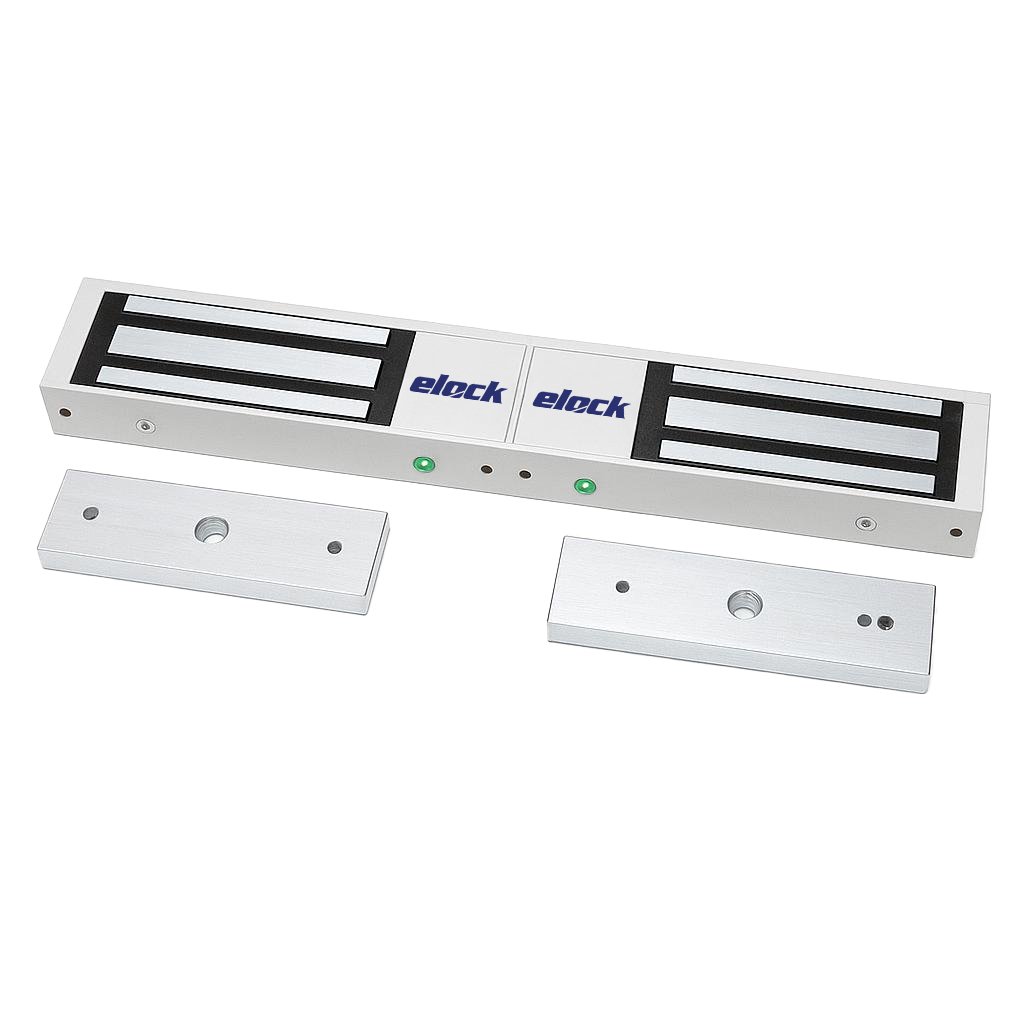

ELOCK-1200LX2 EM Lock

The Elock-1200Lx2 electromagnetic lock is designed for dual leaf door type. Equipped with door monitoring function and is capable of holding doors weighing up to 1200lbs on each leaves.


  • Holding Force: 2 x 1200lbs
  • Operating Voltage: 12V/24VDC
  • Current Consumption: 2 x (500mA/250mA)
  • Lock Type: Fail-safe type
  • Dimension: 265mm x 66mm x 40mm
  • MOV surge protection
  • Push-off button on armature for instant release
  • N.O / N.C / Relay
  • Optional Accessories: EL-BK-L1200 L Bracket; EL-BK-Z1200 ZL Bracket
  • Product Code: ELOCK-1200Lx2

Download Our Data Sheet Here
