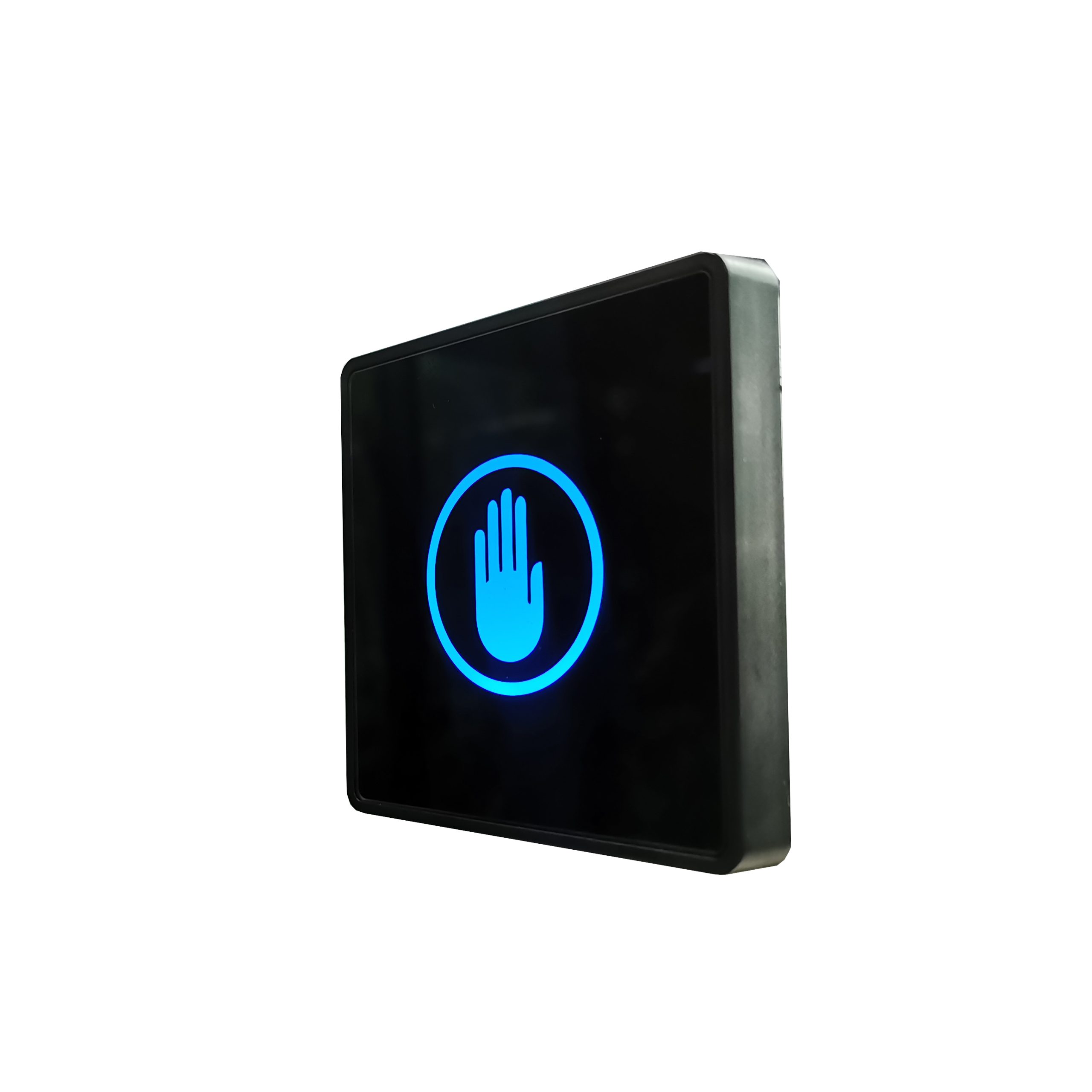

EL-SI-PB20 Screwless No Touch Exit Button

The EL-SI-PB20 screwless no touch exit button uses infra red technology. It will activate when our palm near to the sensor.

Specification:

  • Dimension : 86mm(L) x 86mm(W) x 11mm(H)

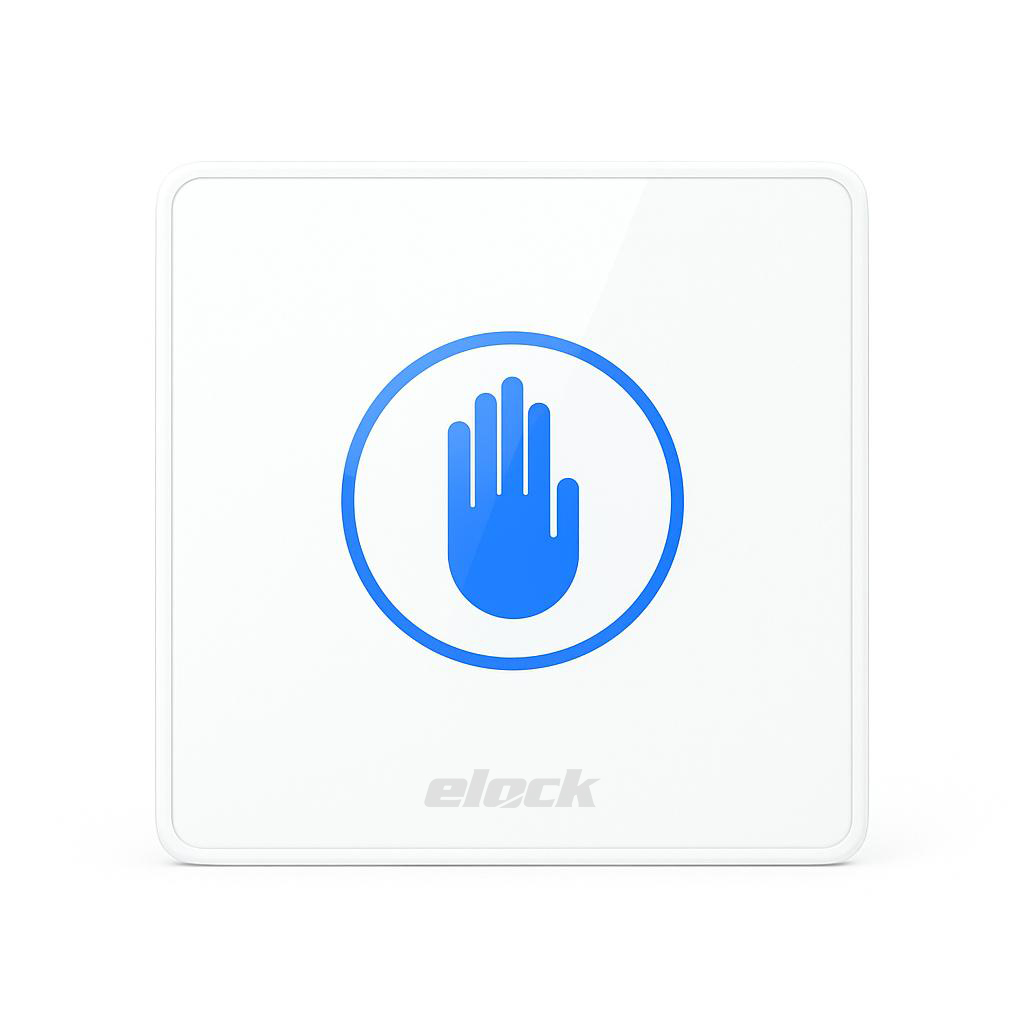

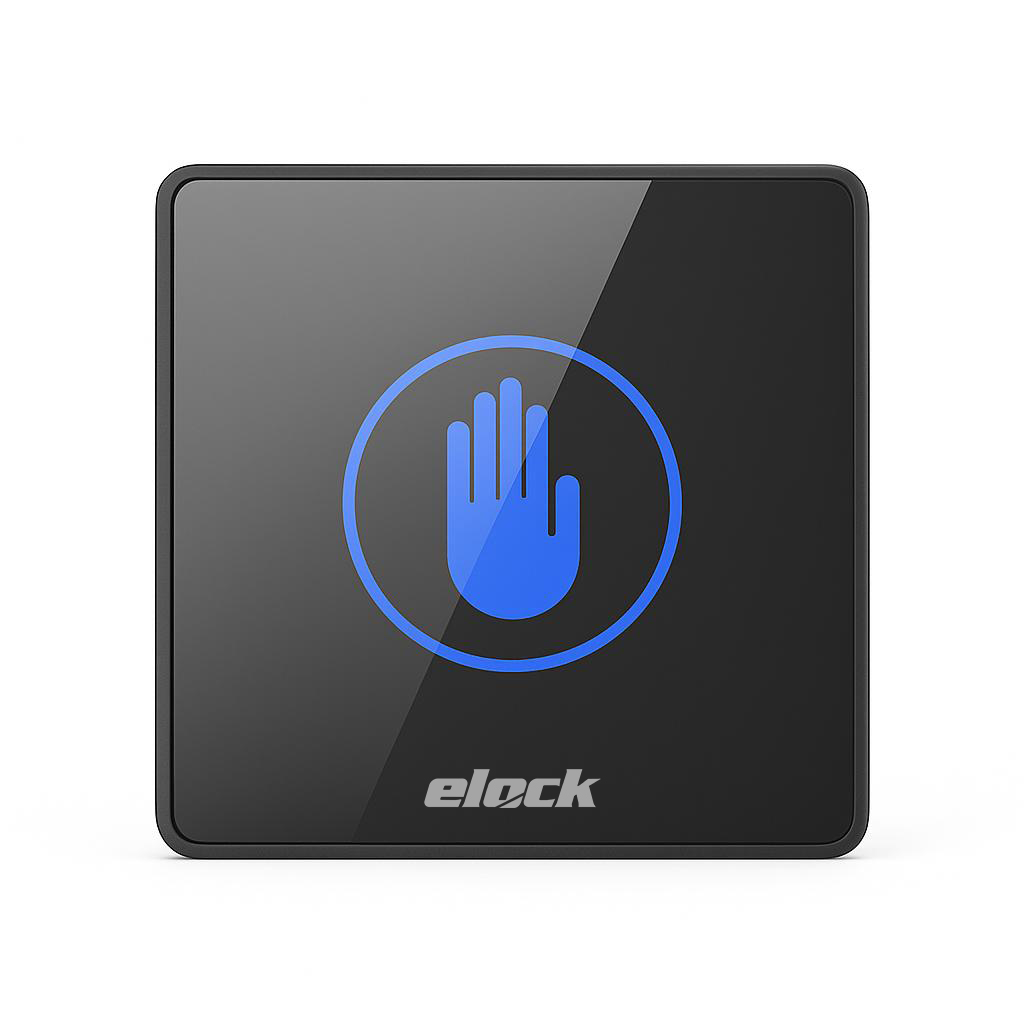

  • Color : White/Black Input : 12VDC to 24VDC
  • Output Contact : NO, NC, COM
  • Operating Temp : -10°C ~ 55°C ( 14~131F )
  • Detection Range : 0.1cm ~ 6cm
  • Weight: 0.11kg
  • Blue LED Indicator : Standby
  • Green LED Indicator : Operation
  • Working Mode : No Touch

Download Our Data Sheet Here
