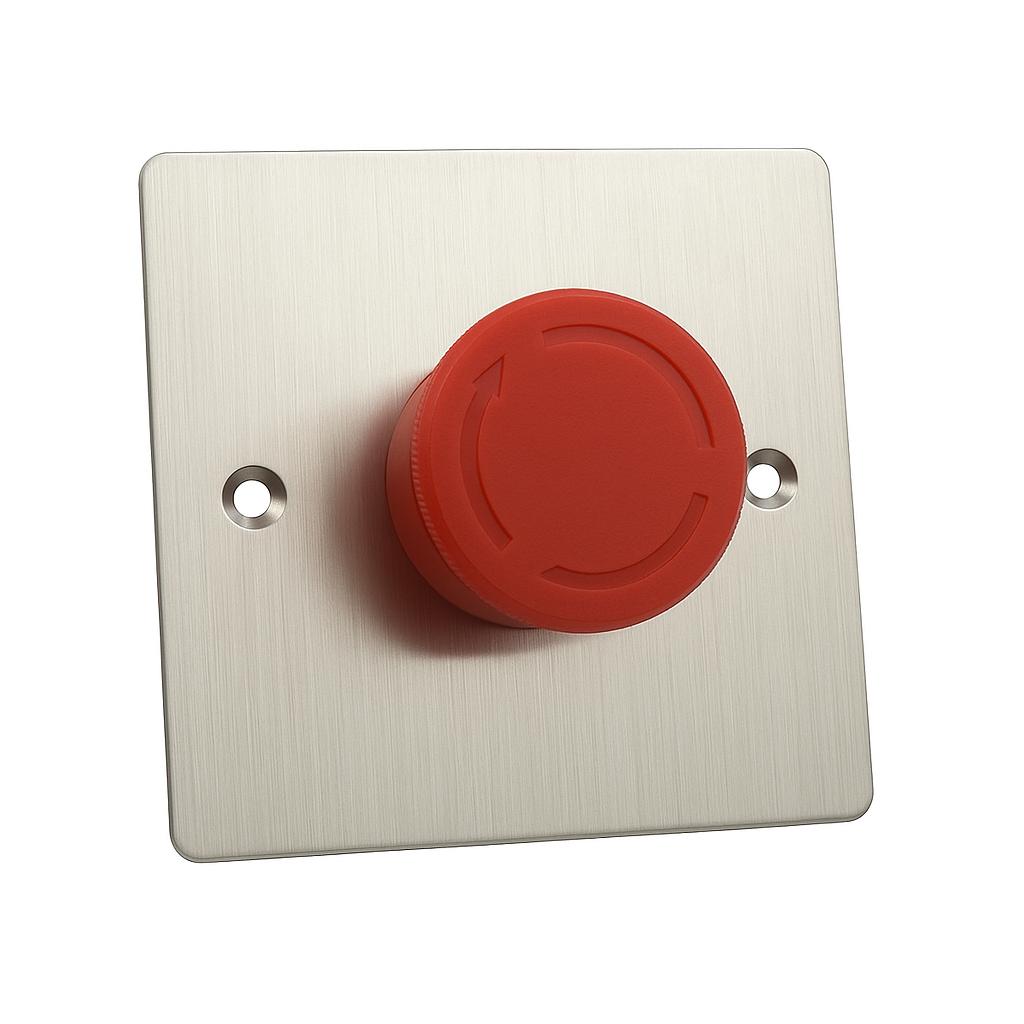

EL-S866-M9 Latching Emergency Exit Button

Latching emergency push button is used for AC 50Hz, 600V and DC 440V Electromagnetic launch, contactor, delay and remote control in other lines.

Specifications:

  • Material: 304 Stainless Steel Plate
  • Size: 115*86 (S886-M9)/115*70mm (S870-M9)
  • Switch Rating: AC-15 120V/6A; 240V/3A; 480V/1.5A; 600V/1.2A DC-13 24V/6A; 48V/3A; 110V/1A; 220V/0.5A; 440V/0.25A Heating current: Ith 10A
  • Contact resistance: ≤50mΩ
  • Ui(V): 600V AC
  • Electric life: 500000 times
  • Mechanical life: 3000000 times
  • Tempreture: -25°C ~ +55°C
  • IP Rating: IP65

Download Our Data Sheet Here
