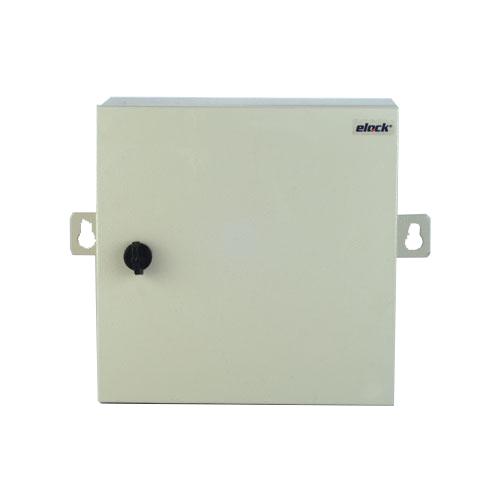

EL-PW-350 12V 5A Regulated Power Supply (Weather Proof Casing)

The EL-PW-350 power supply unit is constructed with overload protection function, built-in backup battery charger and output voltage adjustment capability. Allocated inside a weatherproof casing, suitable for outdoor installation.

Specification:

  • Input Voltage: 220 ~ 240 VAC
  • Input Frequency: 50~60 Hz
  • Output No Load Voltage: 13.5 VDC
  • Output Rated Voltage: 13.0 VDC
  • Output Rated Current: 5.0 A DC
  • Load Regulation: NL to FL3%
  • Battery Low Cut-off: 10.5 VDC
  • Operating Temperature: 0 ~ 65° C
  • Casing Surface Finishing: Oven baked epoxy powder coating
  • IP Protection Rating: IP55
  • Dimension: 225 mm x 245 mm x 88 mm

Key Features:

  • Over load protection
  • Built-in backup battery charger
  • Batter low cut-off
  • Output voltage adjustment
  • Weatherproof casing

Product Code : EL-PW-350

12V 5A DC Regulated Power Supply PW-350

Download Our Data Sheet Here
