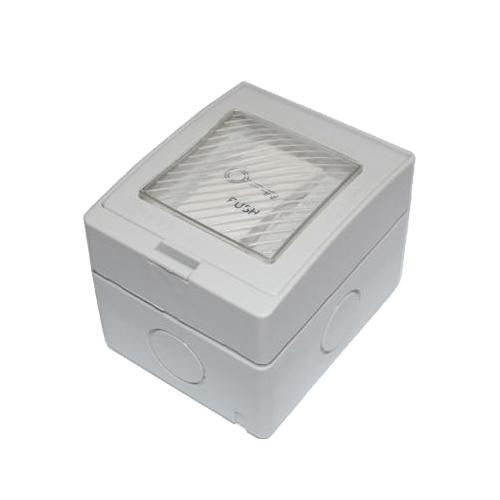

EL-PM2D Weatherproof Surface Mount Plastic Exit Button

EL-PM2D button is casted by plastic with fireproof material. The dimension is 86(L)*70(W)*65(H) mm. It comes with back box and IP55 waterproof. It is suitable for hollow doors; it is elegant style with long time usage.

Specifications:

  • Dimension: 86L*70W*65H (mm)
  • Standard Structure: Plastic
  • Panel Material: Plastic Panel, Fireproof Material
  • Current: 3A@36VDC Max
  • Output Contact: NO/NC/COM
  • Mechanical Life: 100,000 tested
  • Operating Temperature: 10‐55℃ (14-131F)
  • Operating Humidity: 0-95% (non-condensing)
  • Weight: 0.16kg

Download Our Data Sheet Here
