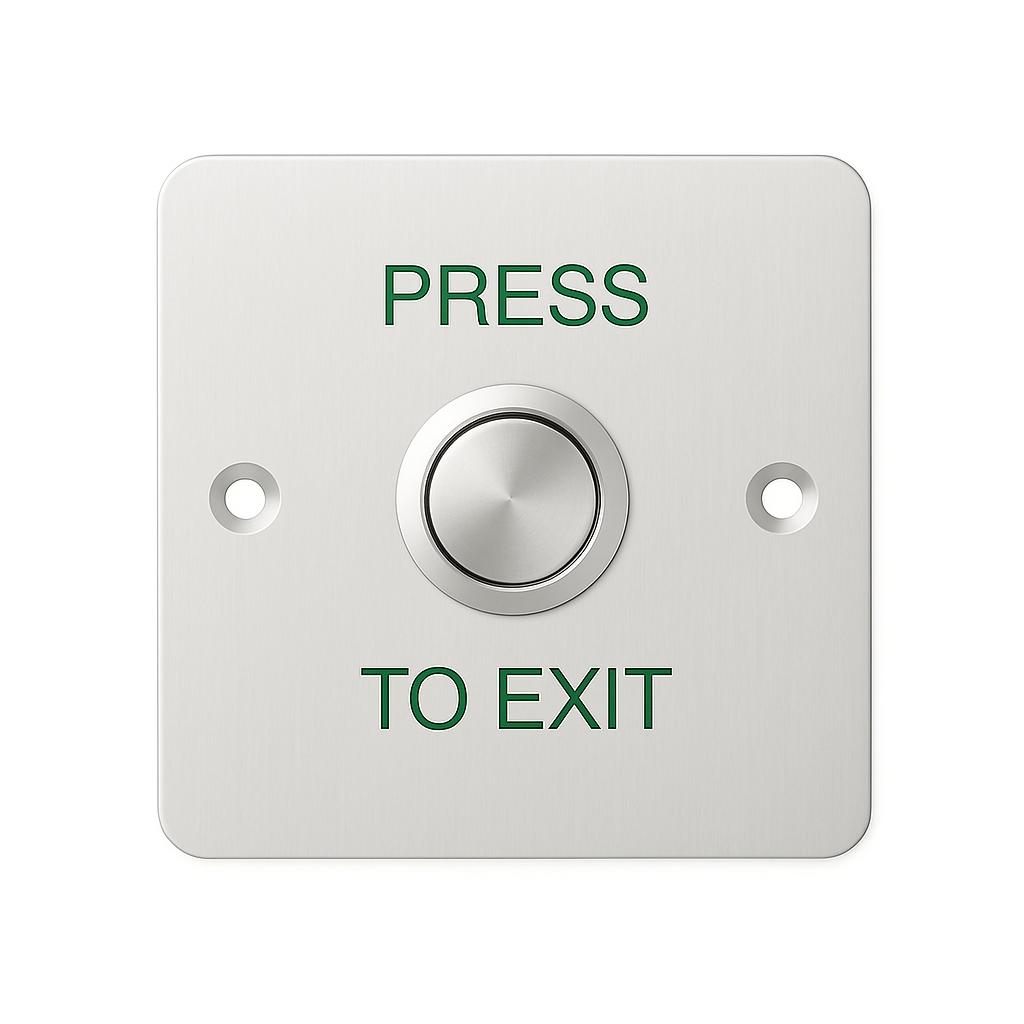

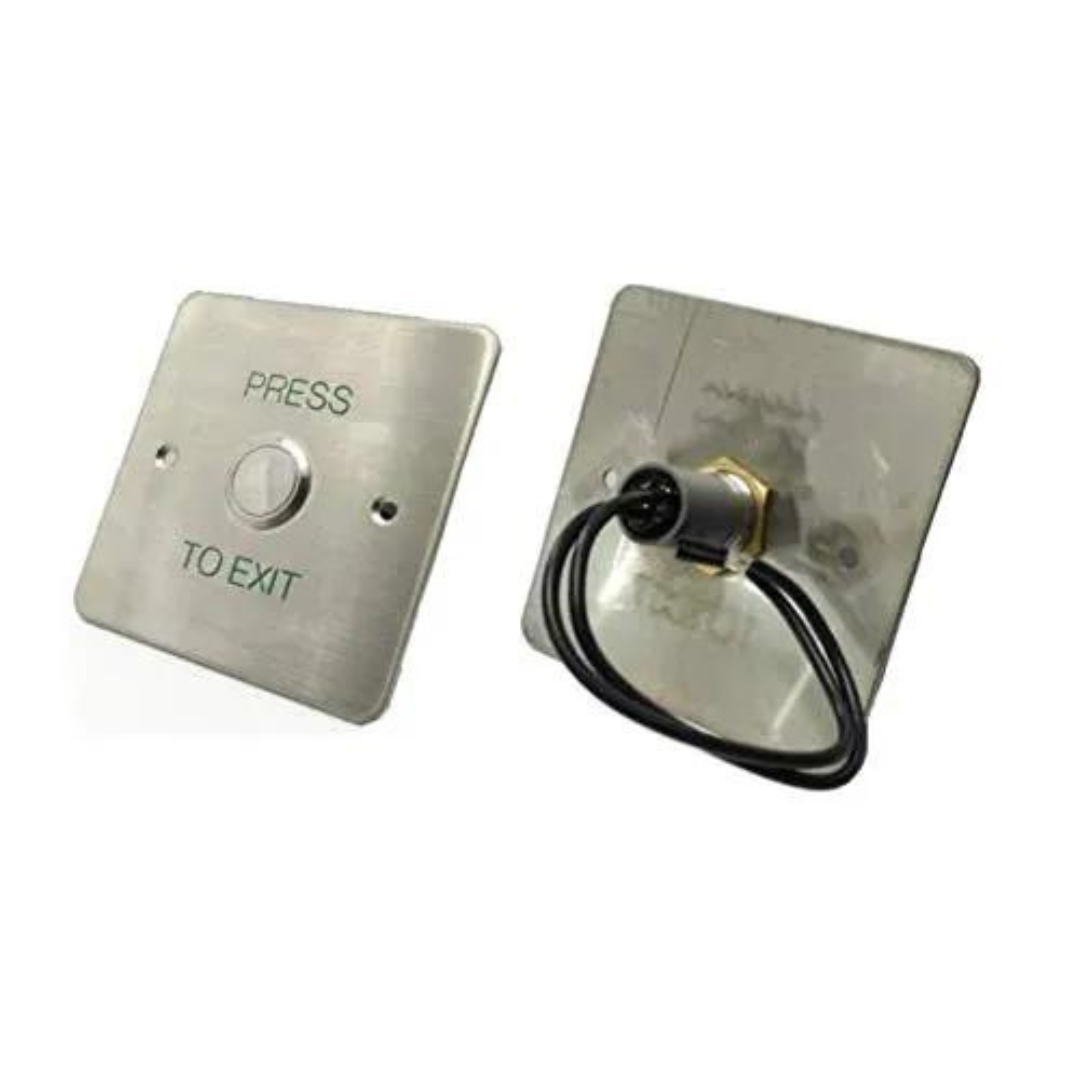

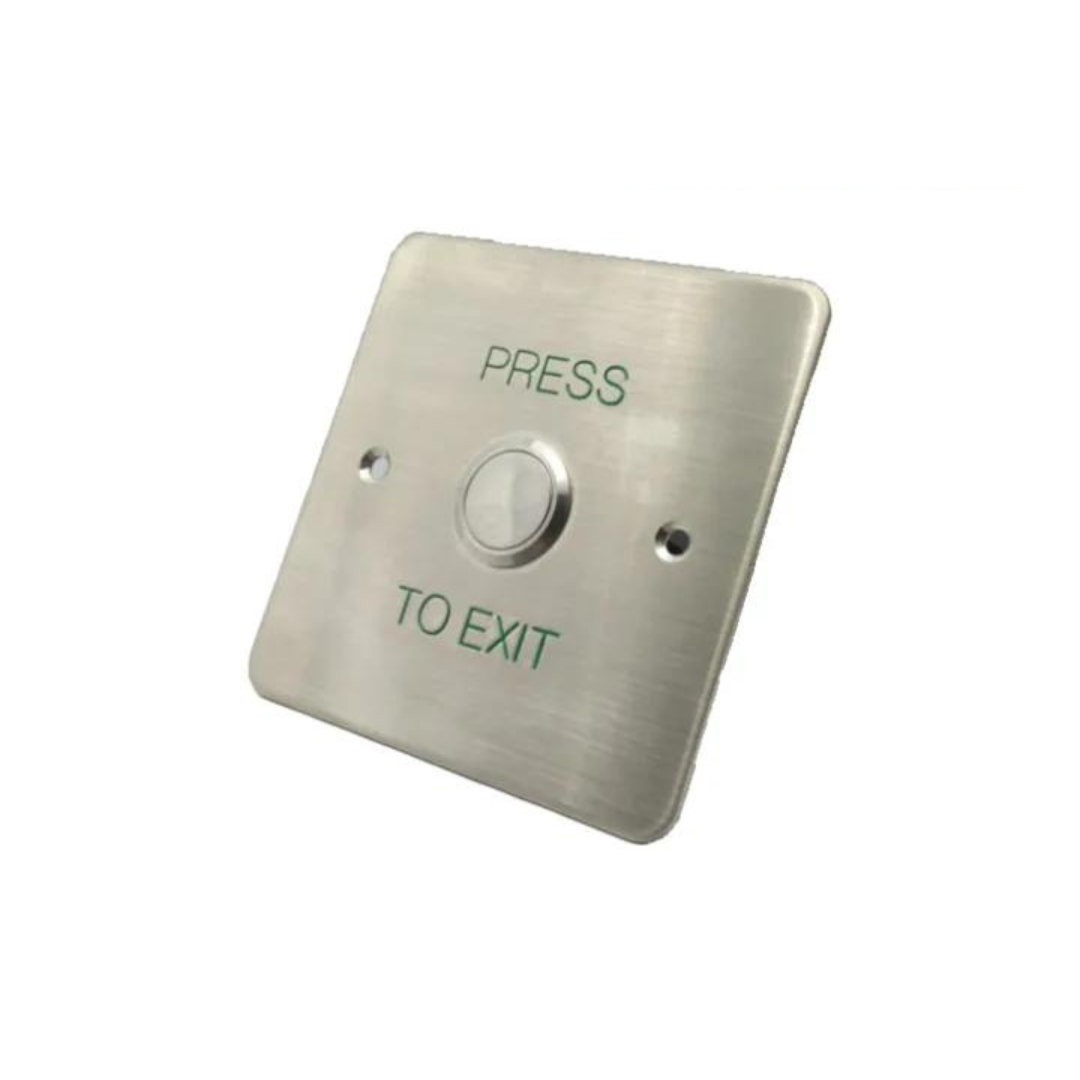

EL-EB3W Waterproof Press Exit Button
The EL-EB3W is a heavy-duty waterproof exit button engineered for durability in demanding environments. Crafted with a 304 stainless steel panel and rated IP67, it offers full protection against dust and water (up to 1m). Ideal for both indoor and outdoor use, the EL-EB3W is tested to withstand 500,000 presses, ensuring long-term reliability and performance.
– Contact Rating: 8A @125V AC / 5A @250V AC max
– Contact Type: N.O / COM
– Material: 304 Stainless Steel Panel
– IP Rating: IP67 (Dust Tight & Waterproof up to 1m)
– Mechanical Life: 500,000 Aging Test Qualified
– Available in: IP65 EL-EB3 (4A @125V AC / 2A @250V AC max)
– Dimension: 87 (H) x 22 (D) x 87 (W) mm
