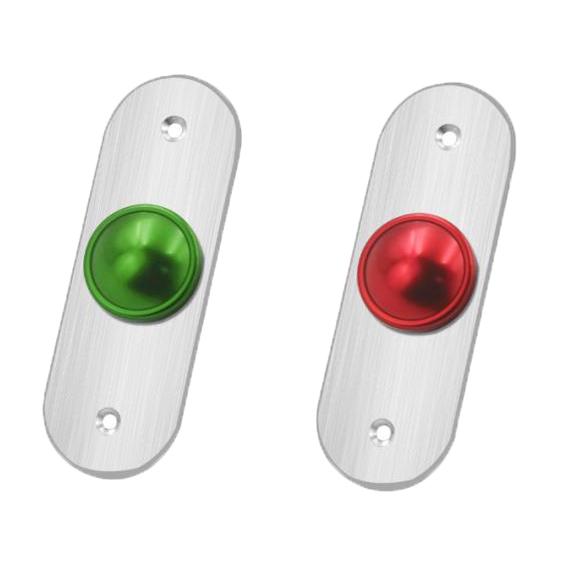

EL-A8401M4 Alumimum Alloy Exit Button

EL-A8401M4 series button is casted by aluminum alloy. It’s easy-to-install and most frequently used in the access controls systems. The superior design of the buttons and quality construction offer good market feedback.


  • Dimension: 115*40*25 round edge (A8401M4)
  • Standard Structure: Aluminum Alloy Panel, Metal Button
  • Panel Material: Aluminum Alloy Panel, Sandblast Finished
  • Current: 3A@36VDC Max
  • Output Contact: NO/NC/COM
  • Mechanical Life: 500,000 tested
  • Weatherproof Rating: IP65
  • Operating Temperature: 10‐55℃ (14-131F)
  • Operating Humidity: 0-95% (non-condensing)
  • Weight: 0.11kg

Download Our Data Sheet Here
