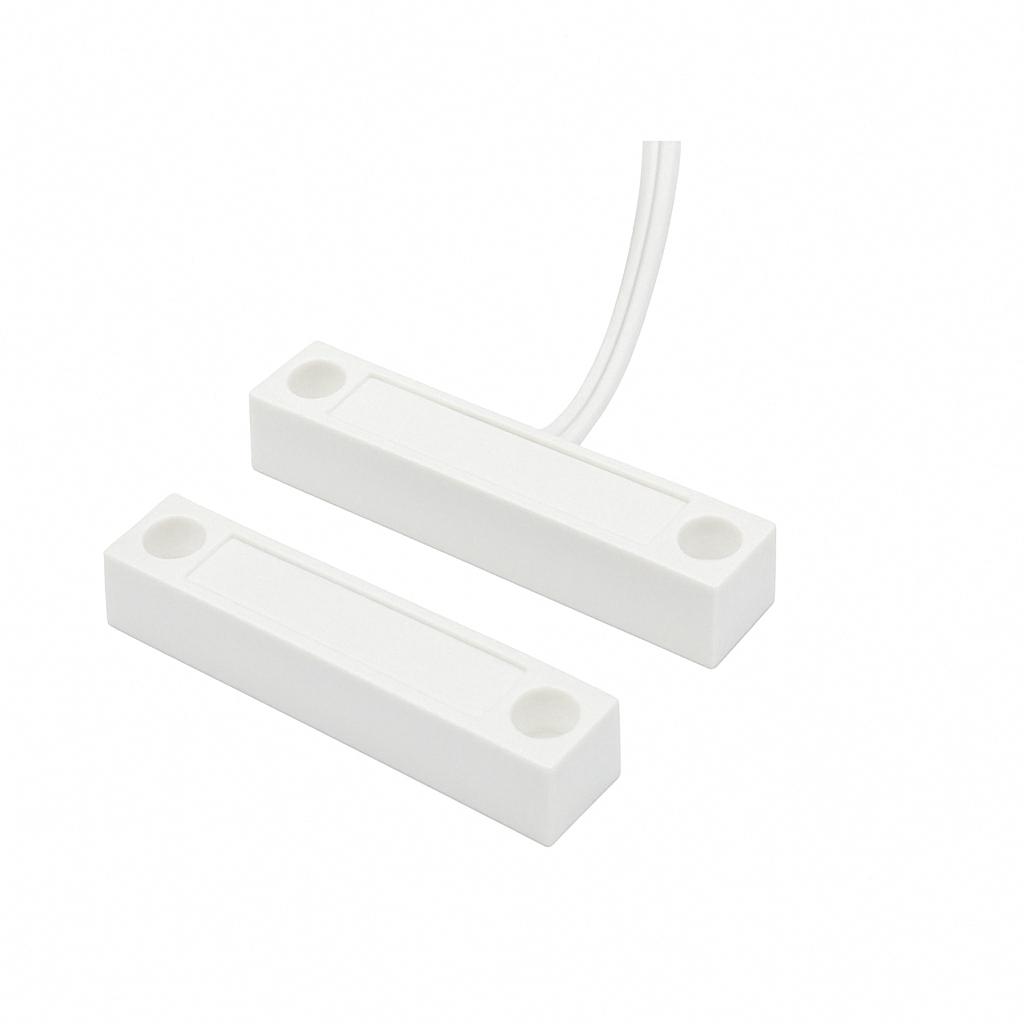

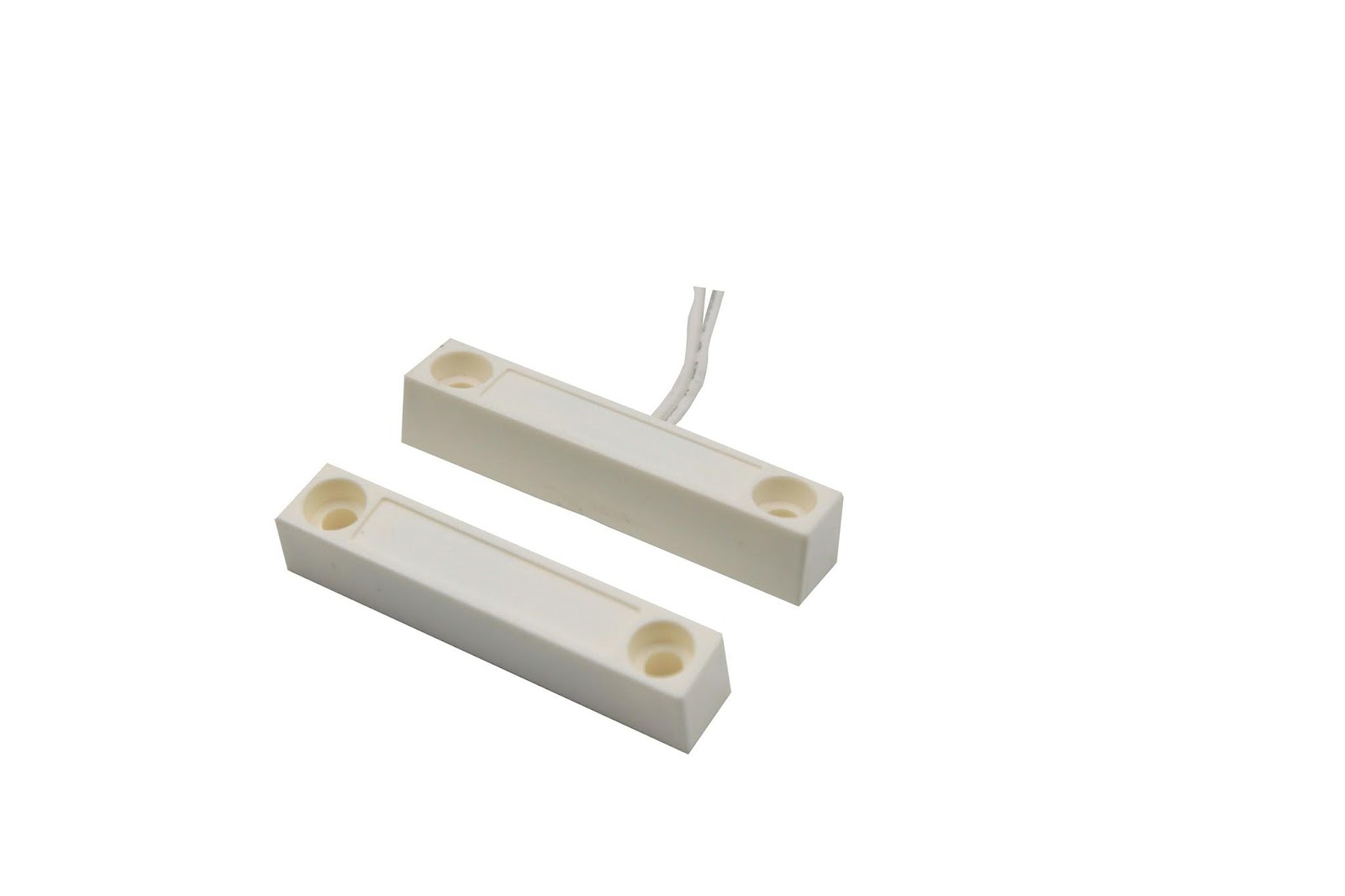

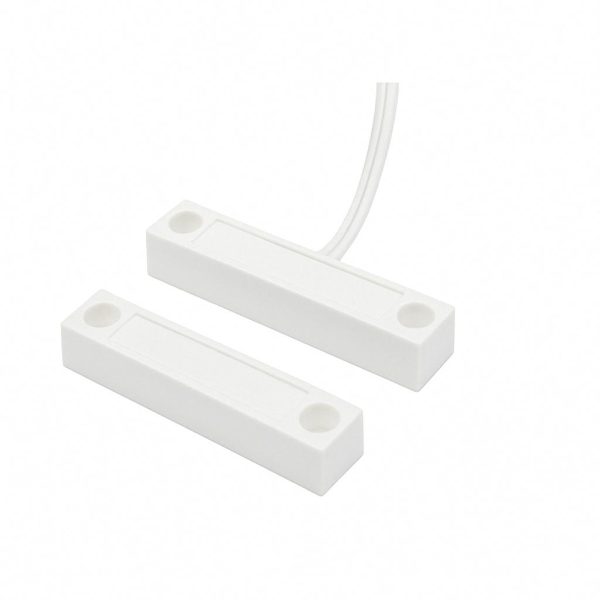

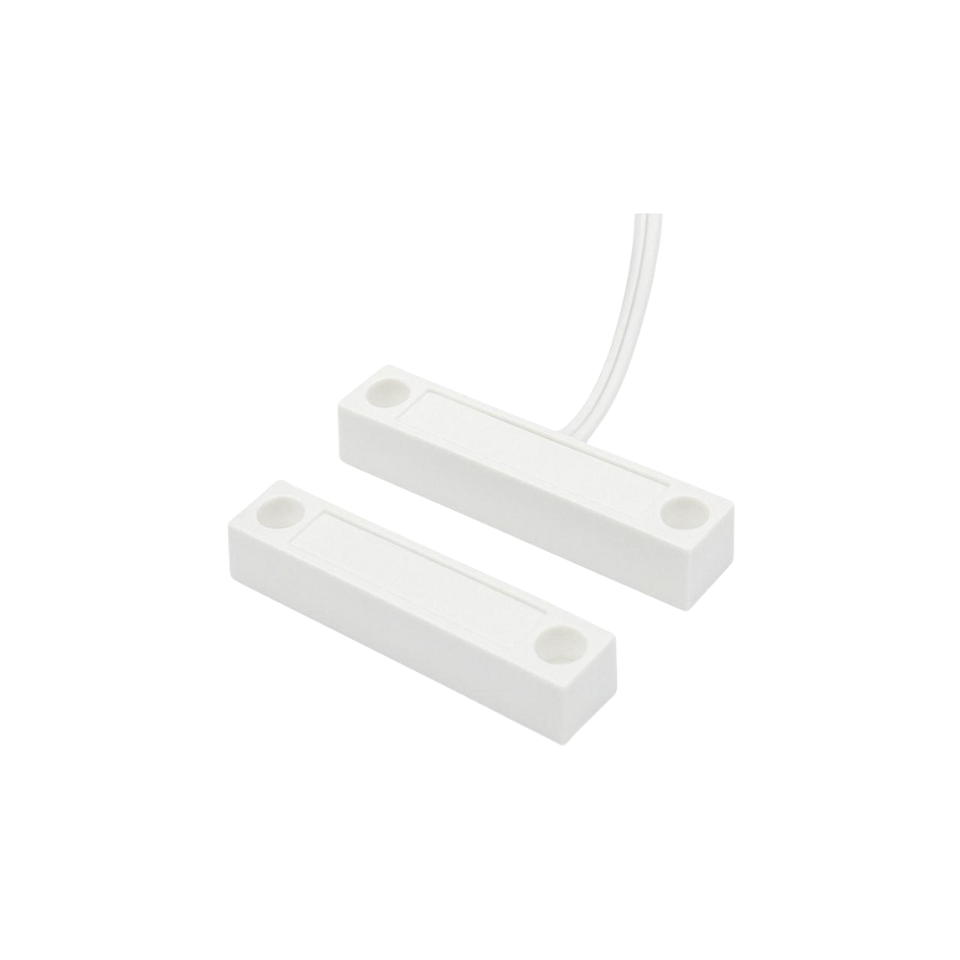

EL-810P 1 1/4 ” Door contact
The EL-810P is a weatherproof surface-mounted door contact sensor designed for intrusion detection systems. Built with ruthenium-over-gold reeds and a rare earth magnet, it provides highly reliable signal performance. With a wider 1¼” (31 mm) gap distance, the EL-810P is suitable for doors with larger clearances. Its IP65 rating ensures protection against dust and water, making it ideal for both indoor and outdoor applications.
• Contact Rating: 0.5A @ 100V DC / 10W max
• Gap Distance: 1¼” (31 mm) with Rare Earth Magnet
• Operating Gap: not less than 1/4” (6.35 mm)
• Contact Type: N.C / COM
• Mounting Type: Surface Mount
• Material: Ruthenium Over Gold Reeds
• Wiring Type: 2-wire
• IP Rating: IP65 (Weatherproof)
