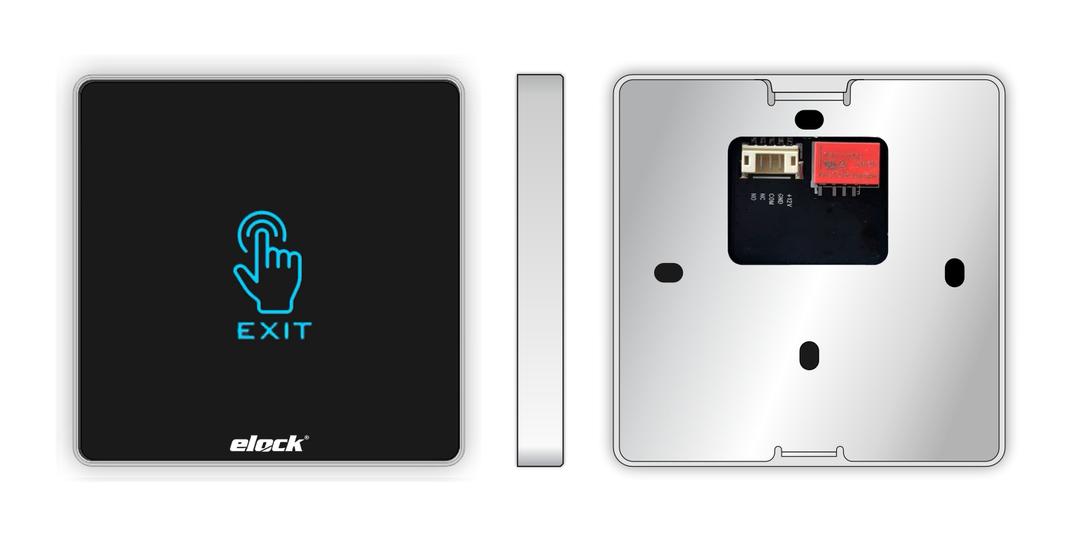

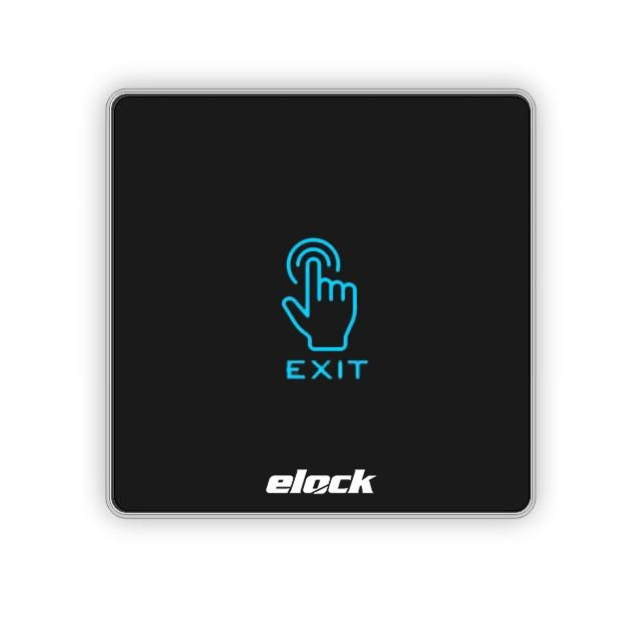

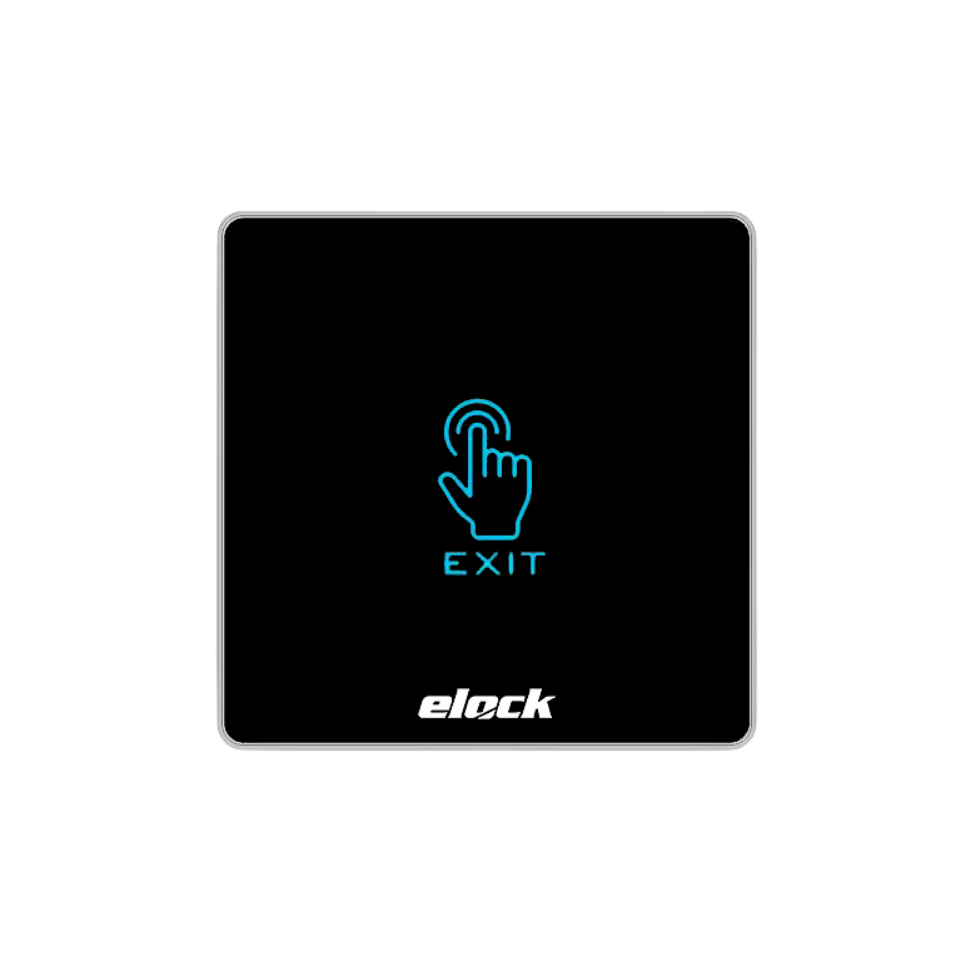

EL-PT8610 Waterproof Touch Exit Button
The EL-PT8610 is a premium wireless exit button engineered for both durability and aesthetics. Unlike typical exit buttons made with plastic, the EL-PT8610 features a solid aluminium frame combined with a tempered glass panel, offering a sleek, modern appearance and superior strength suitable for high-traffic or harsh environments.
With an IP67 rating, it’s dust-tight and waterproof—ideal for both indoor and outdoor use. It supports NO/NC/COM contact outputs, runs on DC12V/24V, and integrates easily into wired access control systems.
Designed for long-term performance, the EL-PT8610 has passed 1,000,000 mechanical life tests.
Compact and elegant at 86 x 10 x 86 mm, the EL-PT8610 is a touch-activated exit solution designed to meet the needs of professional security applications.
- Power Supply : DC12V / DC24V
- Contact Type: N.O/ N.C/ COM
- Frequency: 433.92 MHZ
- Material: Aluminium Frame+ Tempered Glass Panel
- IP Rating: IP67 ( Dust Tight & Waterproof 1m)
- Mechanical Life: 1,000,000 Tested Aging test Qualified
- LED: No Breathing Effect

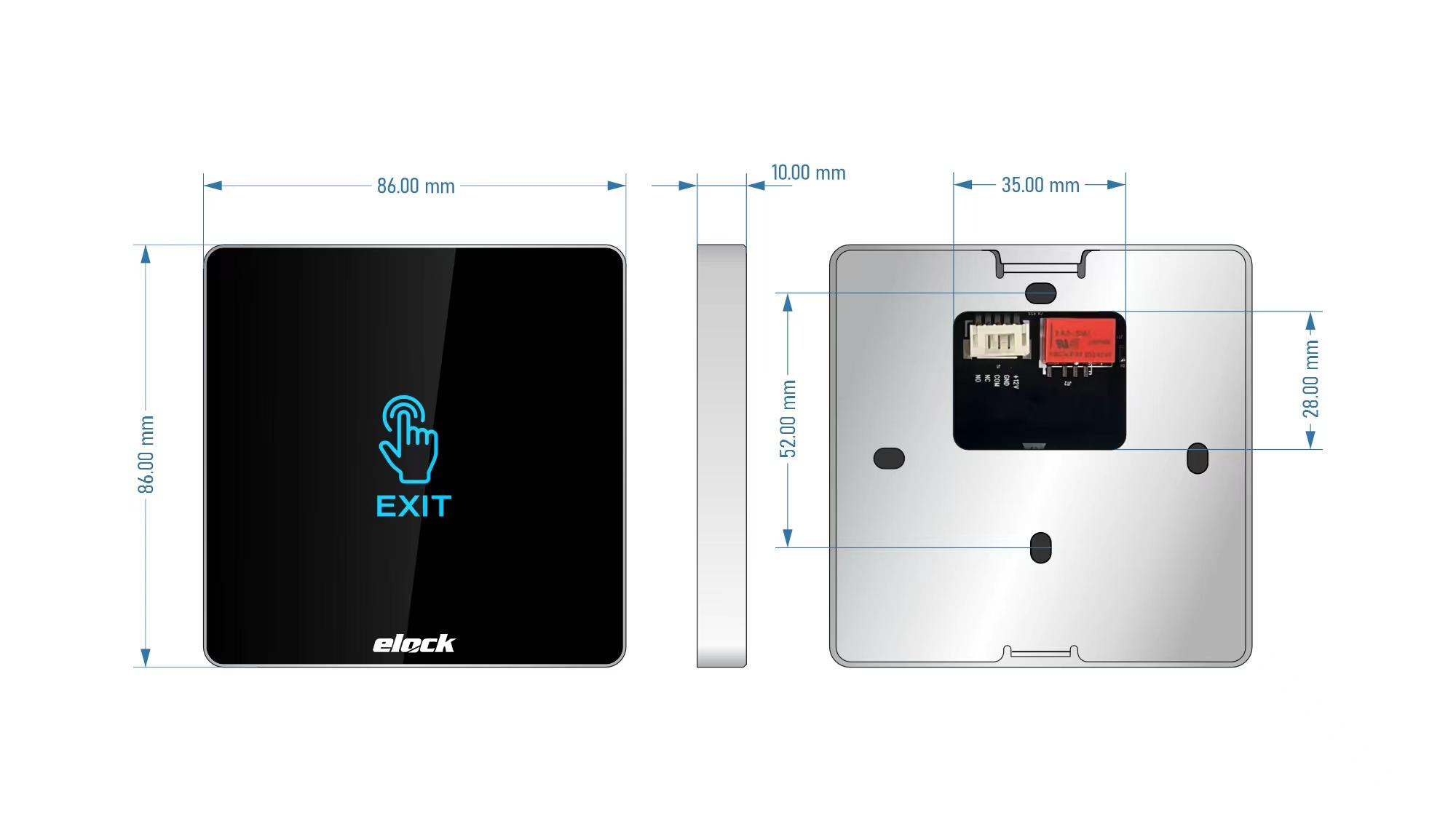

- Dimension: 86 (H) x 10 (D) x 86 (W) mm
