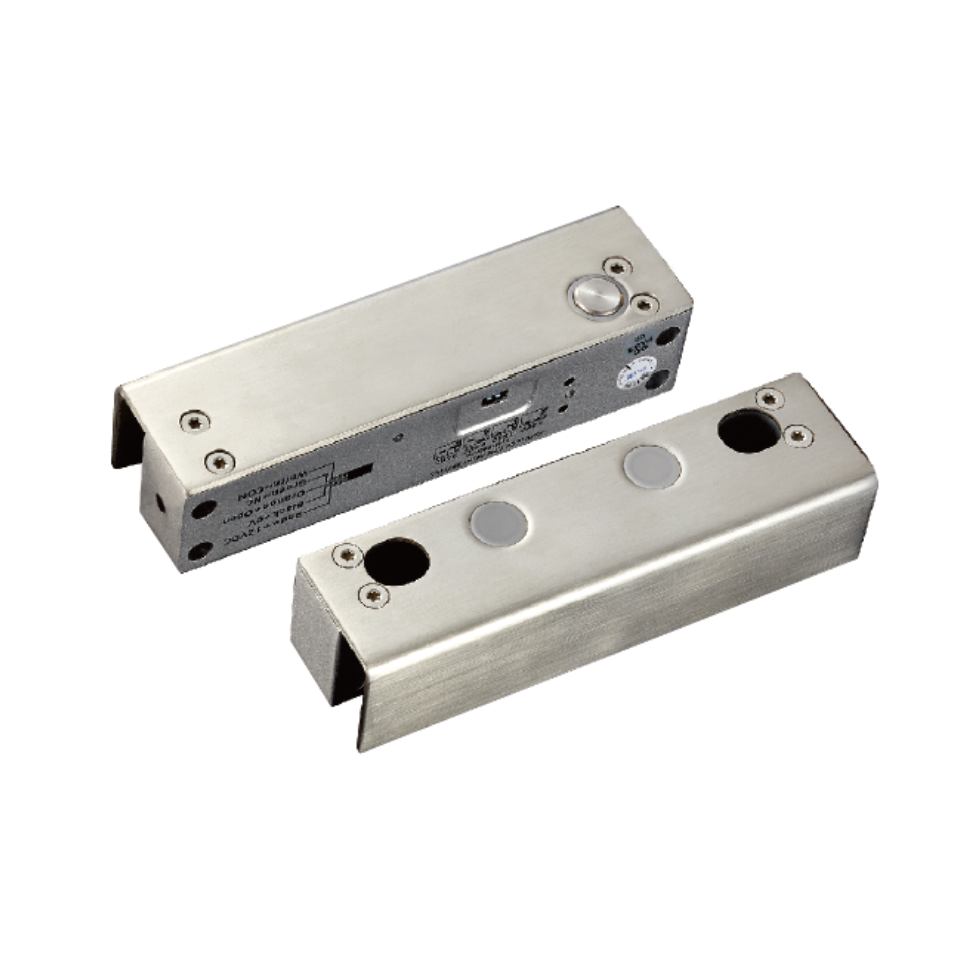

B500U Bolt Action Lock

The B500U is a high-security electrical bolt lock specifically engineered for fully frameless glass door applications. It features integrated monitoring sensors and customizable delay settings to enhance access control precision.

  • Security Type: Power Off Unlock (Fail-Safe), meaning the door unlocks automatically when power is removed for safety.

  • Holding Force: High-strength security with a 2200 lbs (1000kg) capacity.

  • Power Requirements: Operates on a stable DC12V power supply.

  • Current Consumption: Features a 960mA draw during activation and a low 180mA holding current.

  • Application: Designed as a 12mm electrical bolt specifically for fully frameless glass doors.

  • Monitoring & Sensors: Includes a built-in photoelectric sensor for door signaling and a Door Status Sensor (N.O/ C.O.M).

  • Time Delay: Adjustable settings allow for delays of 0, 3, 6, or 9 seconds.

  • Induction Distance: Detects within a range of 8mm.

  • Environmental Rating: IP40 rated for dry indoor installations.

  • Operating Temperature: Rated for reliable use between -20 °C and 60 °C.

  • Dimensions:  150 (H) x 37 (D) x 40 (W) mm.
