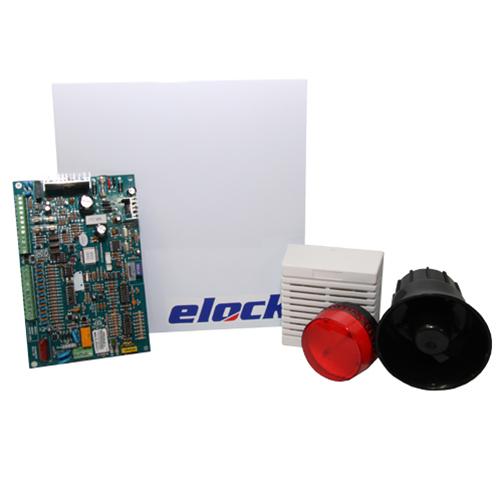

AL3000, 9 Zone Smart Home Alarm System

The AL3000 9 Zone Smart Home Alarm System comes with ease of arm and disarm, control and monitoring capabilities, designed to provide a safer, more comfortable living environment for you and your family.


  • MCU: Based on 16 bits MCU
  • Operating Voltage: 12VDC ~ 13.8VDC
  • Operating Frequency: 20MHz
  • Operating Humidity: 90% none-condensing
  • RAM: RAM on-board FLASH: 48k
  • Flash on-board
  • Inputs: On-board 8 supervised zones + add-on (8 zones)
  • Outputs: Telephone dial output, 2 siren output, 1 strobe light output
  • Protection: On-board surge voltage protection on every, input and output point
  • Communication Linkage: 1 unit PC software linkage, 4 units alarm keypad linkage
  • Communication Port: RS-485 port (x2)

Key Features:

  • 8 alarm zones
  • Optional add-on alarm zones (8 zones)
  • Individual sensitivity adjustment capability
  • Battery low, power failure, line-cut monitoring function
  • 10 sets of alarm arm/disarm pins
  • Fully remote call-in control
  • 2 separate fuse protection
  • Duress alarm pin
  • Multiple keypads connection – maximum of 4 keypads
  • PC interfaced data logging and setting capability
  • Home automation function (optional)

Download Our Data Sheet Here
