U Bracket
Category

U Bracket

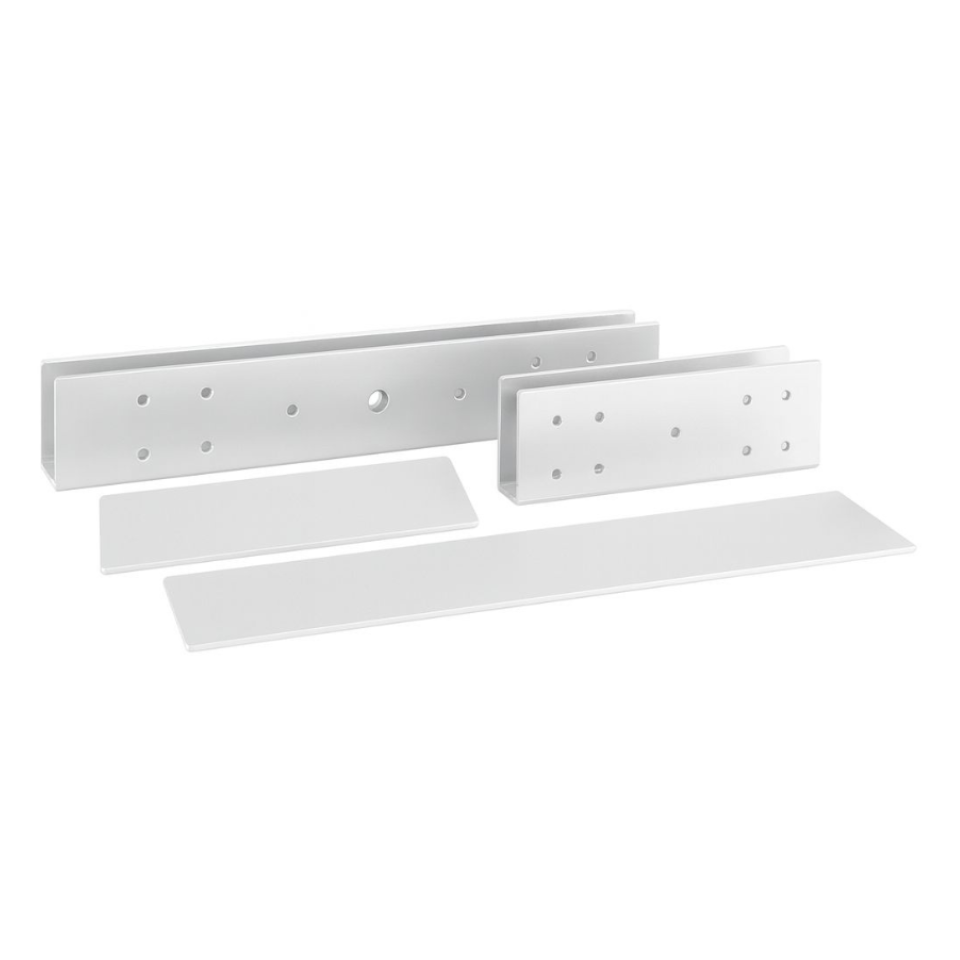

U Brackets are specially designed mounting accessories used for installing electromagnetic locks on fully frameless glass doors. They provide a secure metal base on the glass surface, allowing the lock’s armature plate to be mounted without drilling through the glass.

  • Primary Application: Specifically engineered for glass door solutions where a standard screw-in installation is not possible.

  • Adjustability: Features an adjustable design to accommodate glass doors of varying thicknesses (typically 10mm to 15mm).

  • Material: Constructed from high-strength aluminum alloy, often with an anodized or sandblast finish for durability and corrosion resistance.

  • Model EL-BK-U300:

    • Dimensions: 130mm (L) x 25mm (W) x 39mm (H).

    • Compatibility: Designed to pair with the Elock-300 series electromagnetic locks.

  • Model EL-BK-U600:

    • Dimensions: 180mm (L) x 25mm (W) x 39mm (H).

    • Compatibility: Designed to pair with the Elock-600 series electromagnetic locks.
