S250M Strike Lock

The S250M Strike Lock is a stainless steel, fail-secure security solution designed for indoor access control. It combines a slim physical profile with reliable mechanical overrides for versatile door management.

  • Security Type: Fail-Secure (Power Off Lock), ensuring the door remains locked during power failures.

  • Holding Force: Reliable security with a capacity of 440 lbs (200kg).

  • Power Requirements: Compatible with 12V (both DC and AC power sources).

  • Current Draw: Operates within a range of 900mA to 1100mA.

  • Material: High-quality Stainless Steel construction for durability.

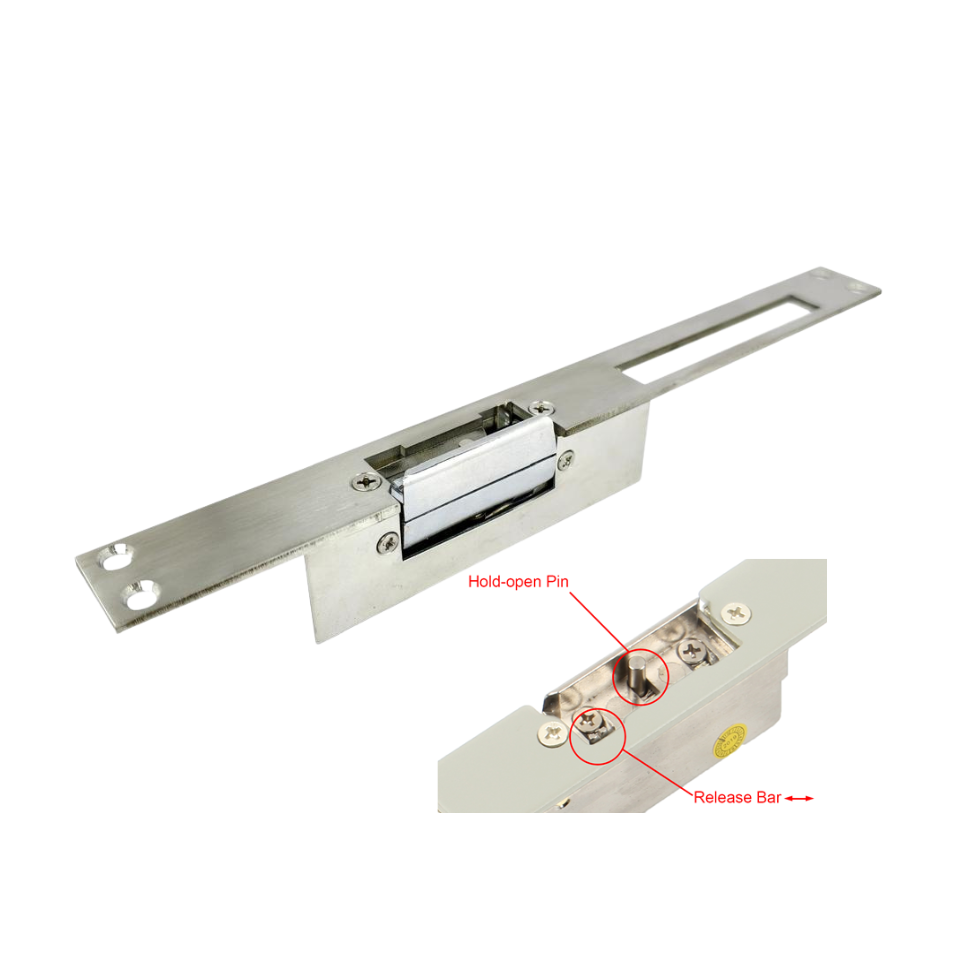

  • Manual Overrides: Includes a Hold-Open Pin and a Release Bar (Manual Unlocking Lever).

  • Adjustability: Features an adjustable latch to ensure a proper fit with the door bolt.

  • Environmental Rating: IP40 rated, suitable for dry indoor environments only.

  • Operating Temperature: Highly resilient, functioning from -40°C up to 50°C.

  • Monitoring & Timing: This is an unmonitored model (no door signal) and does not include a built-in time delay.

  • Dimensions:  250mm (L) x 24mm (W) x 30.5mm (H).
