S160M Strike Lock

The S160M Strike Lock is a compact, stainless steel security solution designed for indoor access control systems. This model provides the same high level of security and manual functionality as the larger S250M, but in a shorter physical housing.

  • Security Type: Power Off Lock (Fail-Secure), which ensures the unit remains locked if power is cut or lost.

  • Holding Force: Provides a secure holding capacity of 440 lbs (200kg).

  • Power Requirements: Operates on a 12V power supply, compatible with both DC and AC current.

  • Current Draw: Consumes between 900mA and 1100mA during operation.

  • Material: Built with Stainless Steel for enhanced durability and strength.

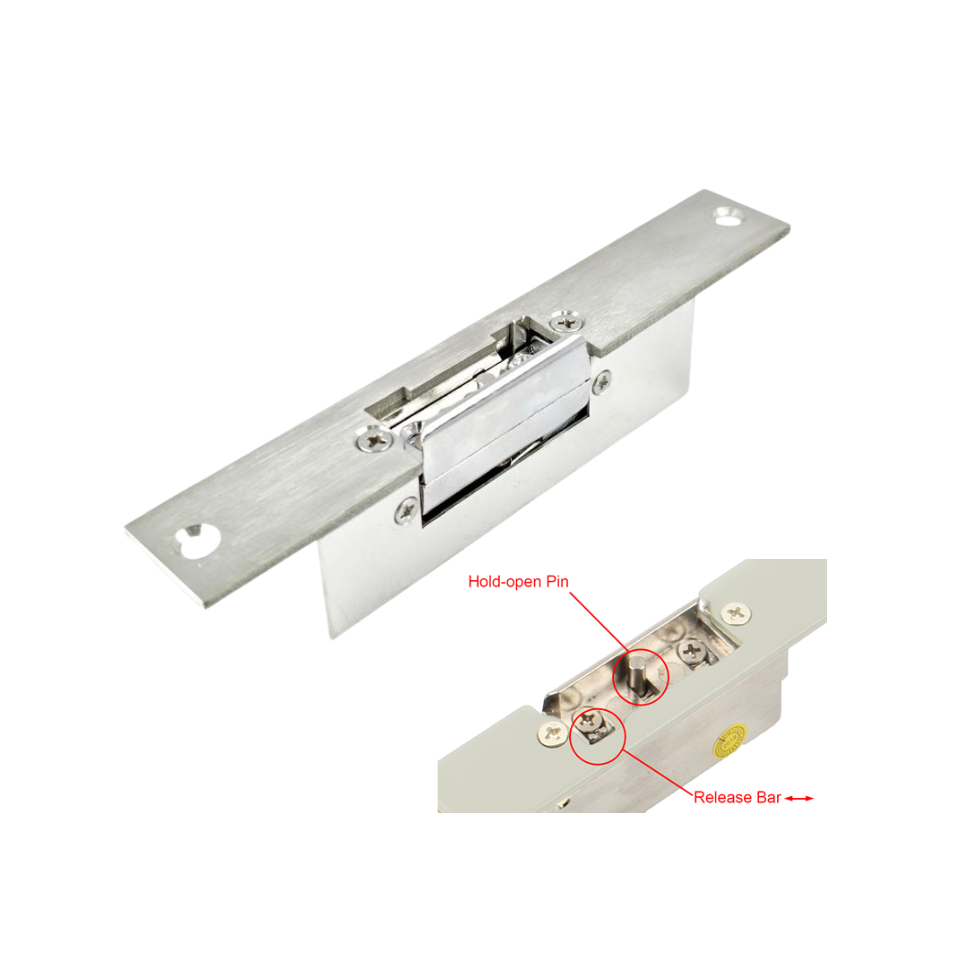

  • Manual Features: Includes a Hold-Open Pin and a Release Bar, which acts as a manual unlocking lever.

  • Mechanical Adjustments: Equipped with an Adjustable Latch to facilitate a precise fit with the door bolt.

  • Environmental Rating: IP40 rated for use in dry indoor environments.

  • Operating Temperature: Suitable for environments ranging from -40 °C to 50 °C.

  • Monitoring & Signal: This is an unmonitored model (No Door Signal) and does not include a time delay feature.

  • Dimensions:  160mm (L) x 24mm (W) x 30.5mm (H).
