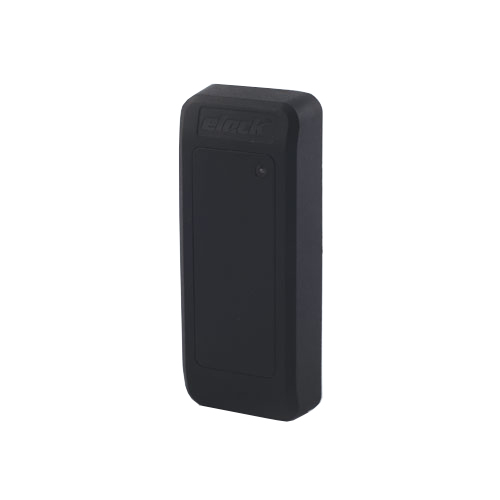

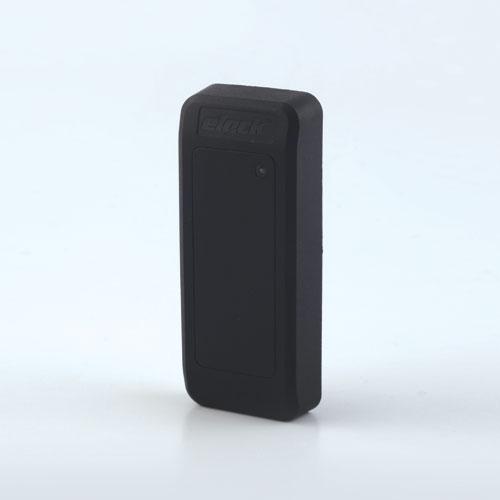

RD-100 ProAce Proximity Reader
The EL-RD100 is a Radio Frequency Identification (RFID) card reader device, capable of reading Wiegand 26 bits card format. Work along with EL2000 access control system.
Specification:
- Input Voltage: 9 ~ 16VDC, 12VDC recommended
- Current Consumption: 48mA ~ 50mA
- Operating Temperature: 0 ~ +66 Degree Celsius
- Carrier Frequency: 125kHz
- Data Format: Wiegand 26 bits
- Reading Range: 30mm (1.2”) max
- Data Transmission Range: 100 m
- Indication: Buzzer and LED (Bi-color)
- Dimension: 97 x 39 x 13.3mm Unit Weight: 0.085kg
Key Features:
- Proximity technology – Operational convenience with high level security
- Weatherproof and slim design
- Easy installation
- Wiegand 26 bits format
- Anti-card collision function
- Controllable LEDs and electronic buzzer
- EM proximity card compatible
- Exceptional level of detection capability, high reliability, consistent read-range and stability
