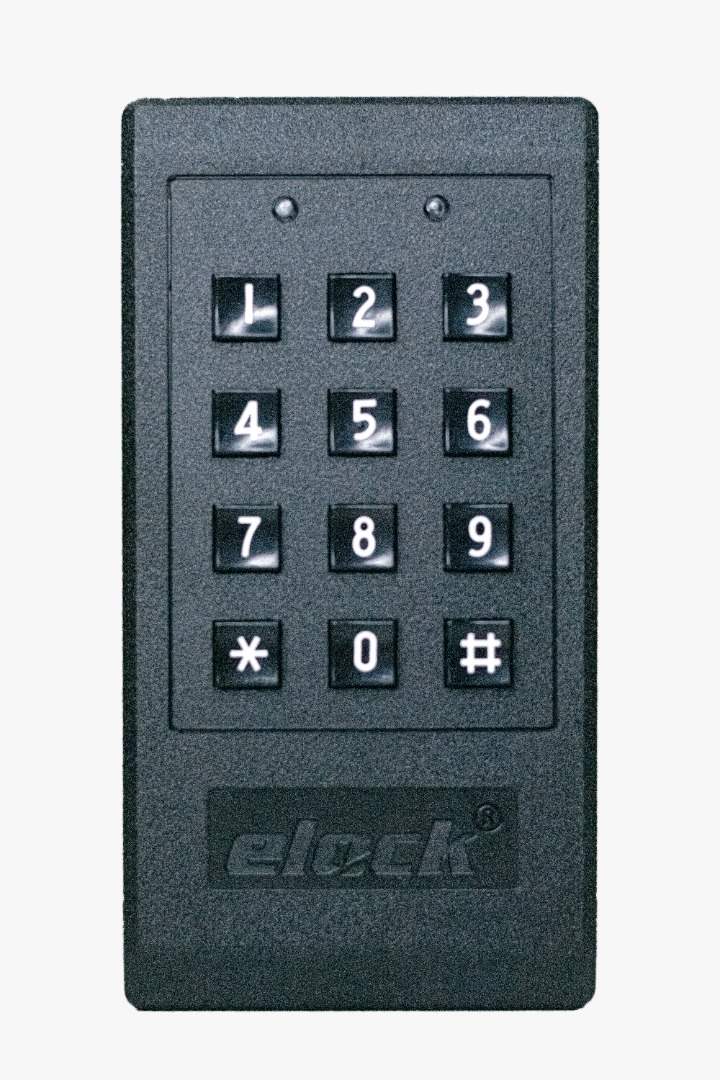

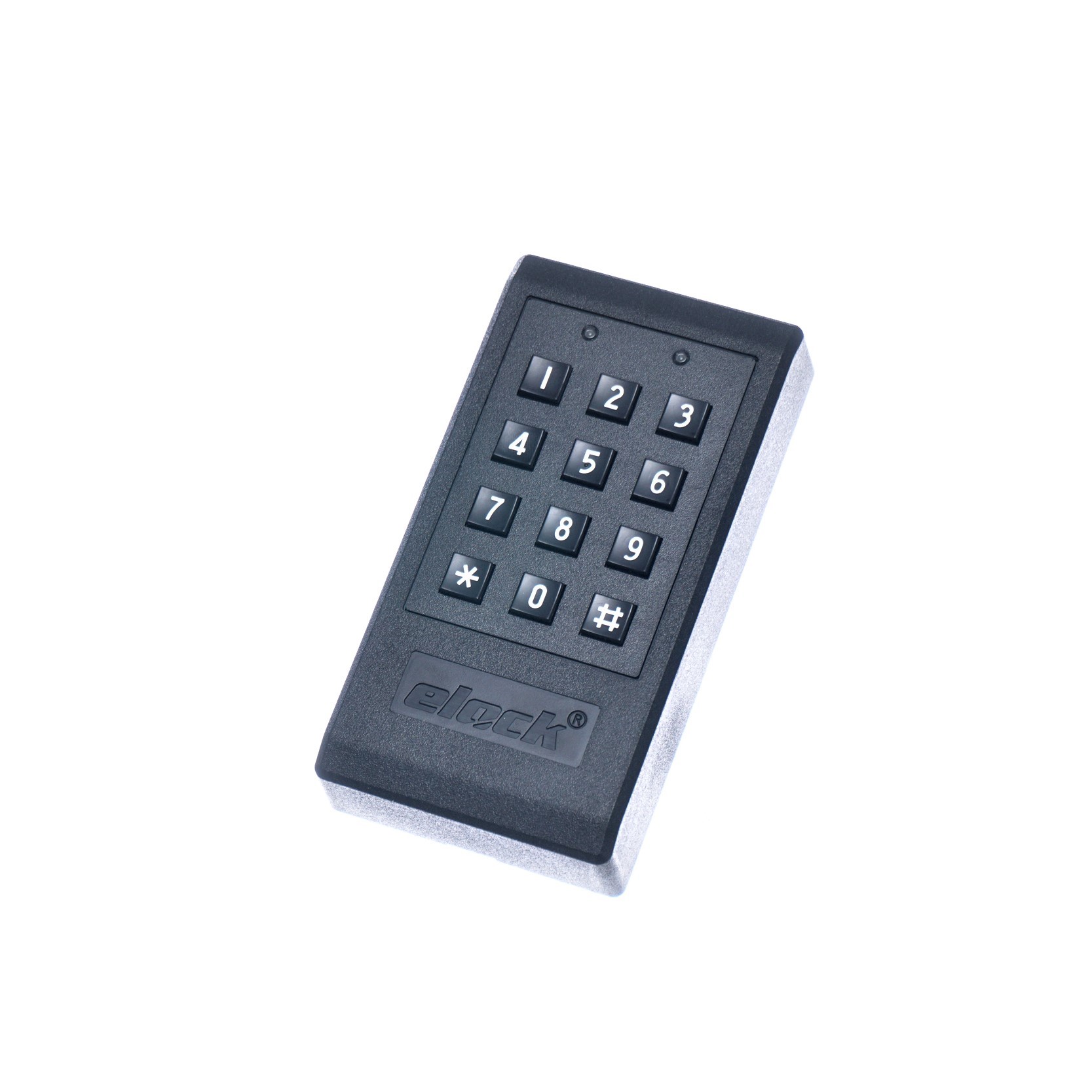

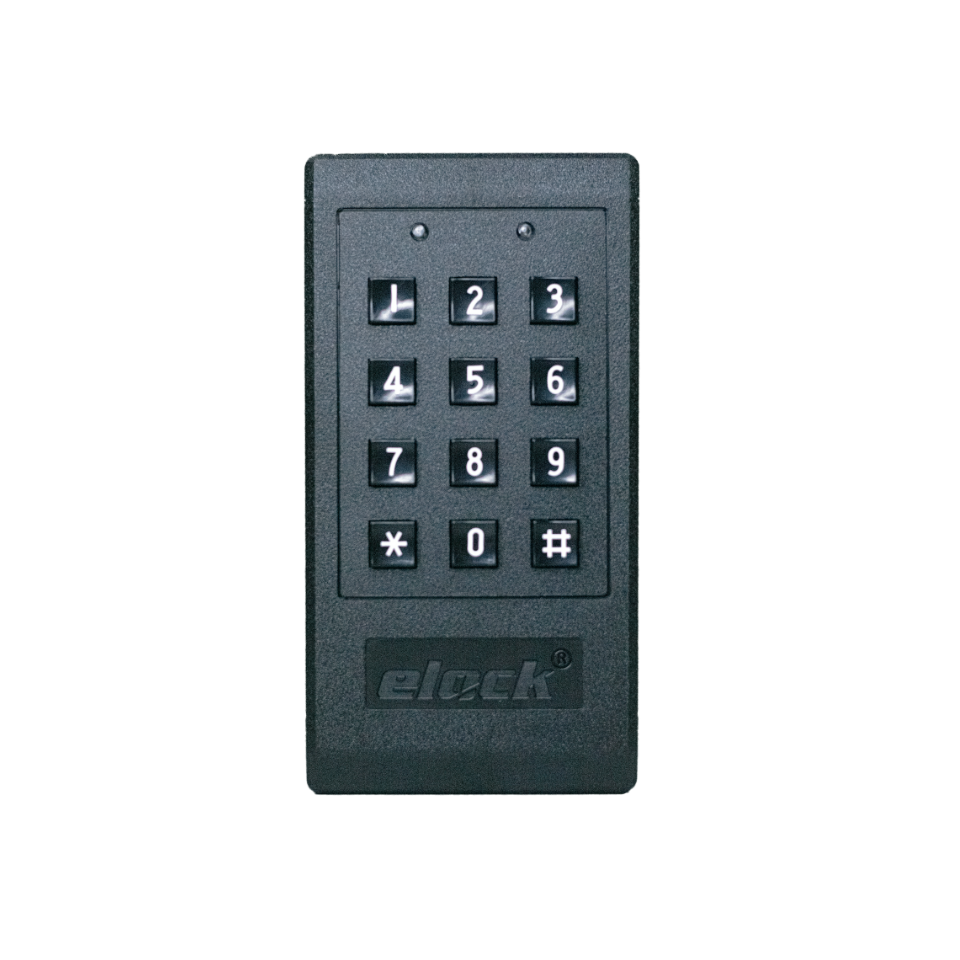

Proximity door access controller EL-ST100

The EL-ST100 proximity door access controller is fully capable of all the basic access control functionality, weatherproof with stylish design. Ideal for single door access control system.


  • Input Voltage: 9 ~ 16VDC, 12VDC recommended
  • Current Consumption: 65mA ~ 115mA
  • Operating Temperature: 0 ~ +66 Degree Celsius
  • Carrier Frequency: 125kHz
  • Data Format: Wiegand 26 bits
  • Reading Range: 50mm (2”) max
  • Indication: Buzzer and LEDs Relays: 12Vdc, 2A; N.C. or N.O.
  • Dimension: 135 x 72 x 28 mm
  • Unit Weight: 0.20 kg

Key Features:

  • Standalone device – ideal for single door system, controlling electric lock, security system Verify via password and/or card
  • Four types of verification mode for greater security
  • Weatherproof design
  • Water resistant capability
  • Anti-card collision function
  • Free from double read situation
  • LEDs and electronic buzzer
  • Provides positive audio-visual feedback

Download Our Data Sheet Here
