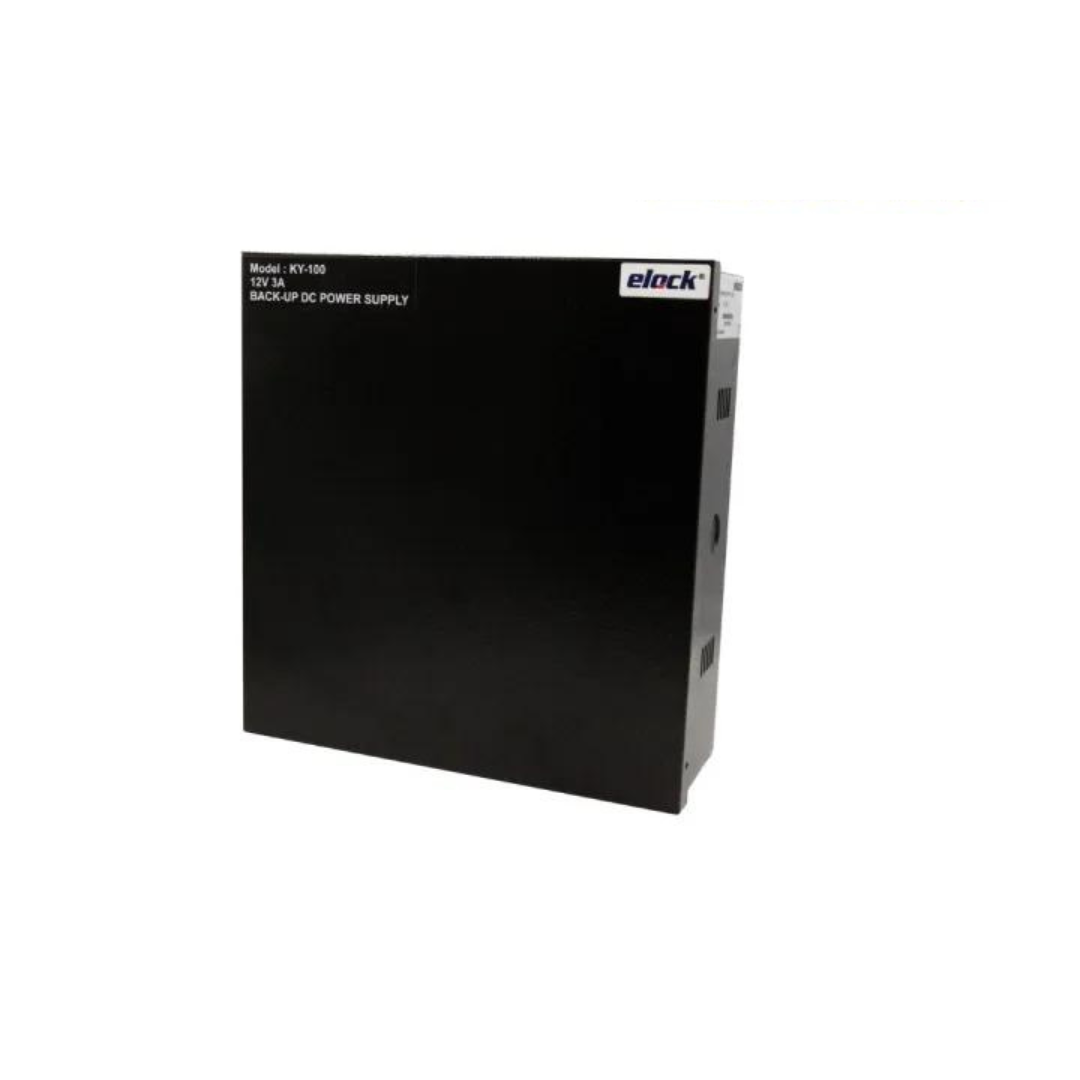

KY-100 12V 3A DC Regulated Power Supply

Specification:

• Input Voltage: 220 ~ 240 VAC
• Input Frequency: 50~60 Hz
• Output No Load Voltage: 13.5 VDC
• Output Rated Voltage: 13.0 VDC
• Output Rated Current: 3.0 A DC
• Load Regulation: NL to FL3%
• Battery Low Cut-off: 10.5 VDC
• Operating Temperature: 0 ~ 65° C
• Casing Surface Finishing: Oven baked epoxy powder coating
• Dimension: 245 mm (W) x 255 mm (H) x 88 mm (D)

The KY-100 power supply unit is constructed with built-in backup battery charger, over load protection device and output voltage adjustment capability. An ideal power supply unit for household and office usage.

Key Features:

• Over load protection
• Built-in backup battery charger
• Batter low cut-off
• Output voltage adjustment
