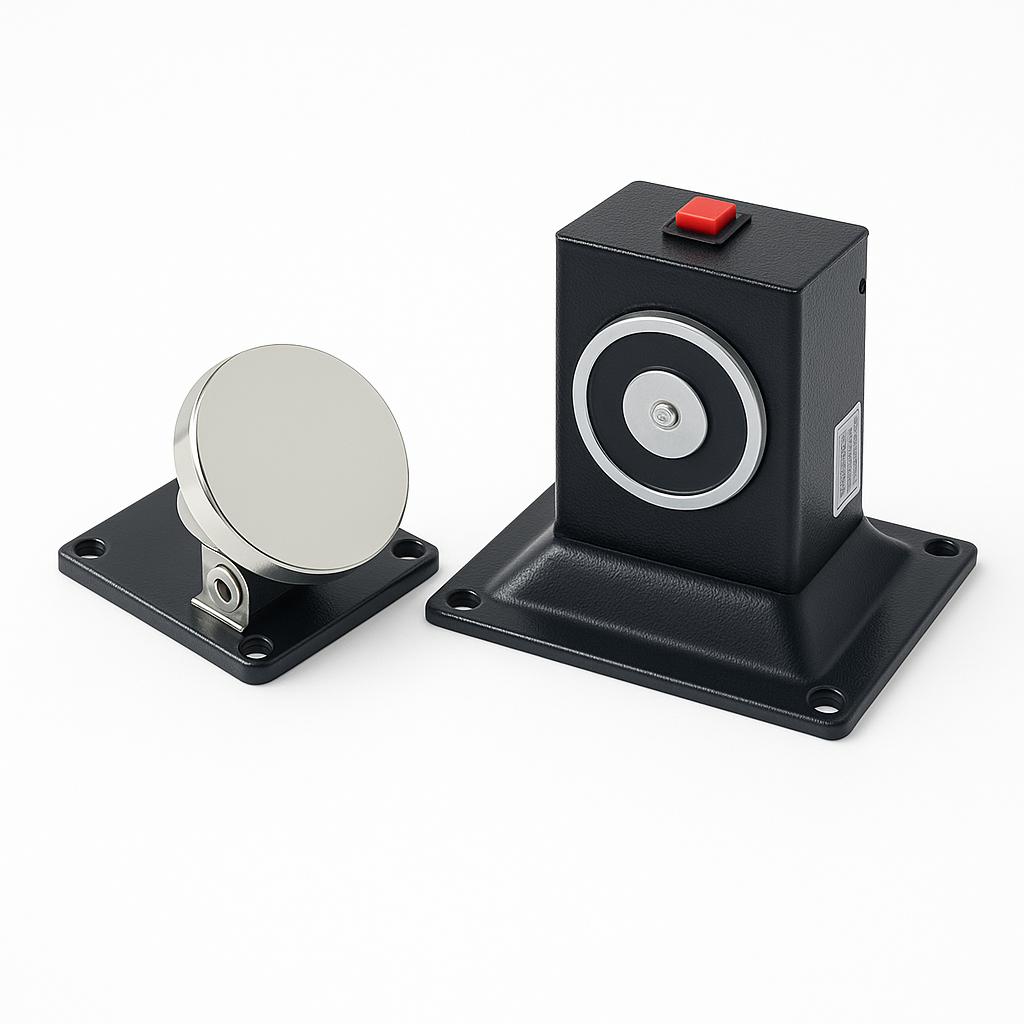

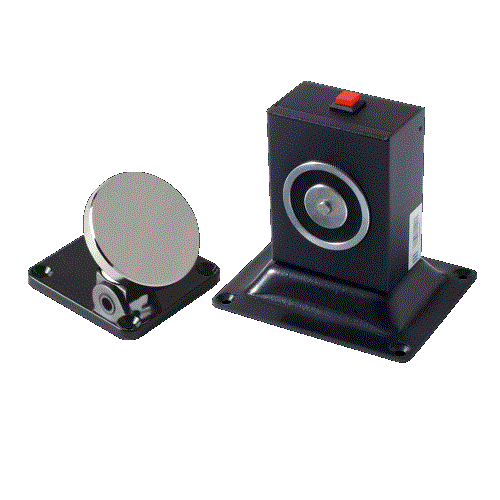

ELOCK EL-DH-605 is a wall mount door holder which adopts low power consumption that makes it more environments friendly and more durable. It will release automatically the fire door in case of fire. It also contains build-out release button for testing and build-in MOV which reverse current protection.


  • Input Voltage: 24VDC +/-10%
  • Current Draw: 24V/70mA
  • Holding Force: 50Kg (110lbs)
  • Dimensions: L116 x W93 x H118 (mm)
  • Weight: 1.4kg
  • Manual door release button
  • Suitable for all kind of single & double smokeproof doors

Product Code : EL-DH-605

Floor Mounted Door Holder

Download Our Data Sheet Here
