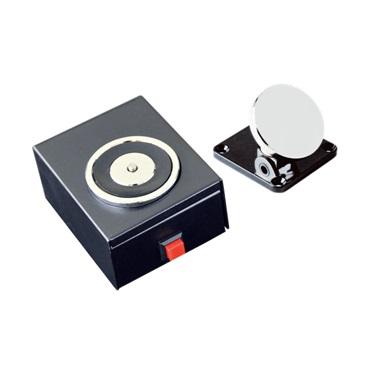

ELOCK EL-DH-603

ELOCK EL-DH-603 is a standard type wall mount door holder which adopts low power consumption, that makes it more environment friendly and more durable. Professional anti-residual magnetism design ensures highest security. It will release automatically the fire door when fire alarms. It also contains build-out release button for testing and build-in MOV which reverse current protection.

Specification:

  • Input Voltage: 24VDC +/-10%
  • Current Draw: 24V/70mA
  • Holding Force: 50Kg (110lbs)
  • Dimensions: L88 x W88 x H27 (mm)
  • Weight: 1.0kg
  • Manual door release button
  • Suitable for all kind of single & double smokeproof doors

Product Code : EL-DH-603

Mortise Mounted Door Holder
