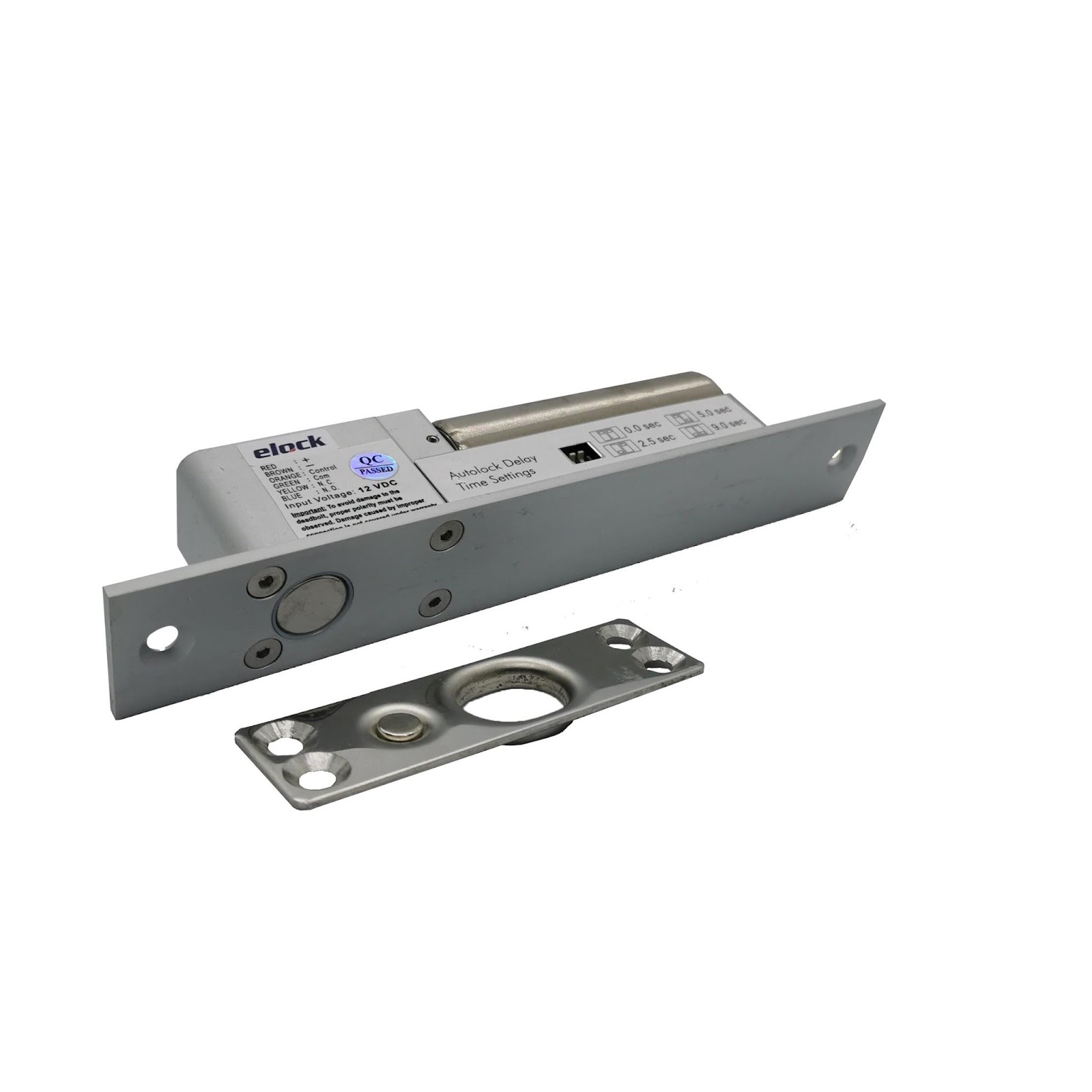

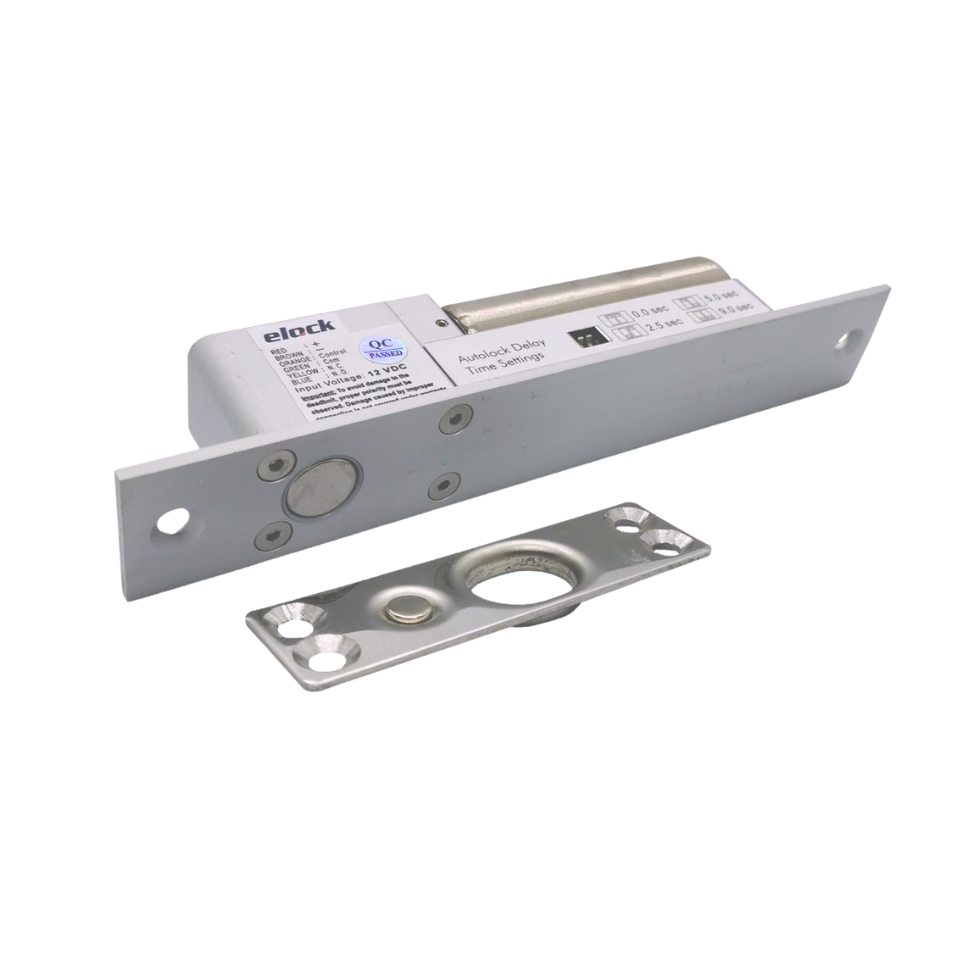

ELOCK-B100 Bolt Action Lock

The Elock-B100 bolt action lock offers wide range of installation application, suitable for wood, aluminium and steel doors. Works with sliding, single-action and double action doors and gates.


  • Operating Voltage: 12VDC
  • Operating Current: 900mA
  • Holding Current: 350mA
  • Lock Type: Fail-safe type
  • Operation Delay Time: 0sec, 2.5sec, 5sec, 9sec
  • Door Sensor: N.C
  • Built-in Delayed Egress, Control Point


  • Face Plate: 200mm x 32mm x 40mm
  • Strike Plate: 90mm x 26mm x 2mm
  • Bolt Stainless Steel: 15.5 Diameter, 16mm throw

Optional Accessories:

  • EL-BK-G200 Frameless Glass Door Bracket
  • EL-BK-G201 Glass Door Holder
  • EL-BK-G100 Glass Door Bracket
