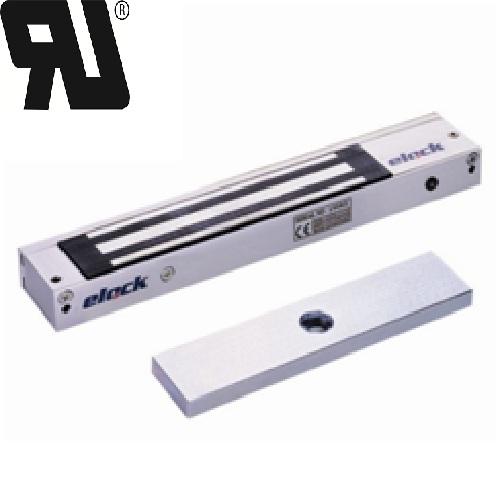

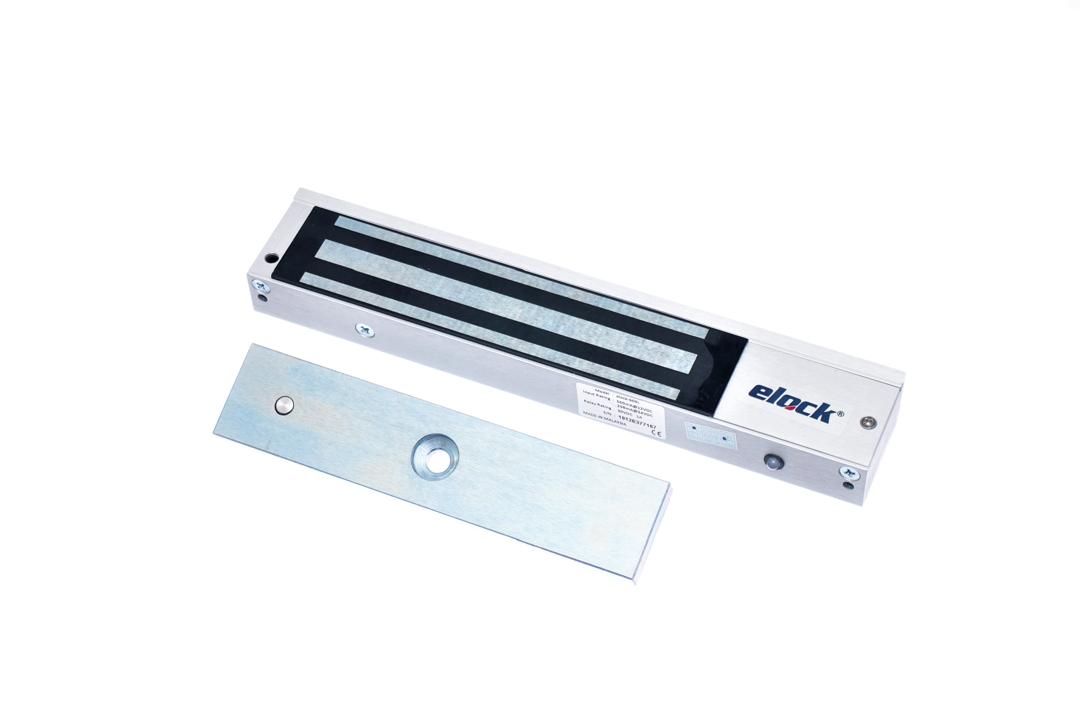

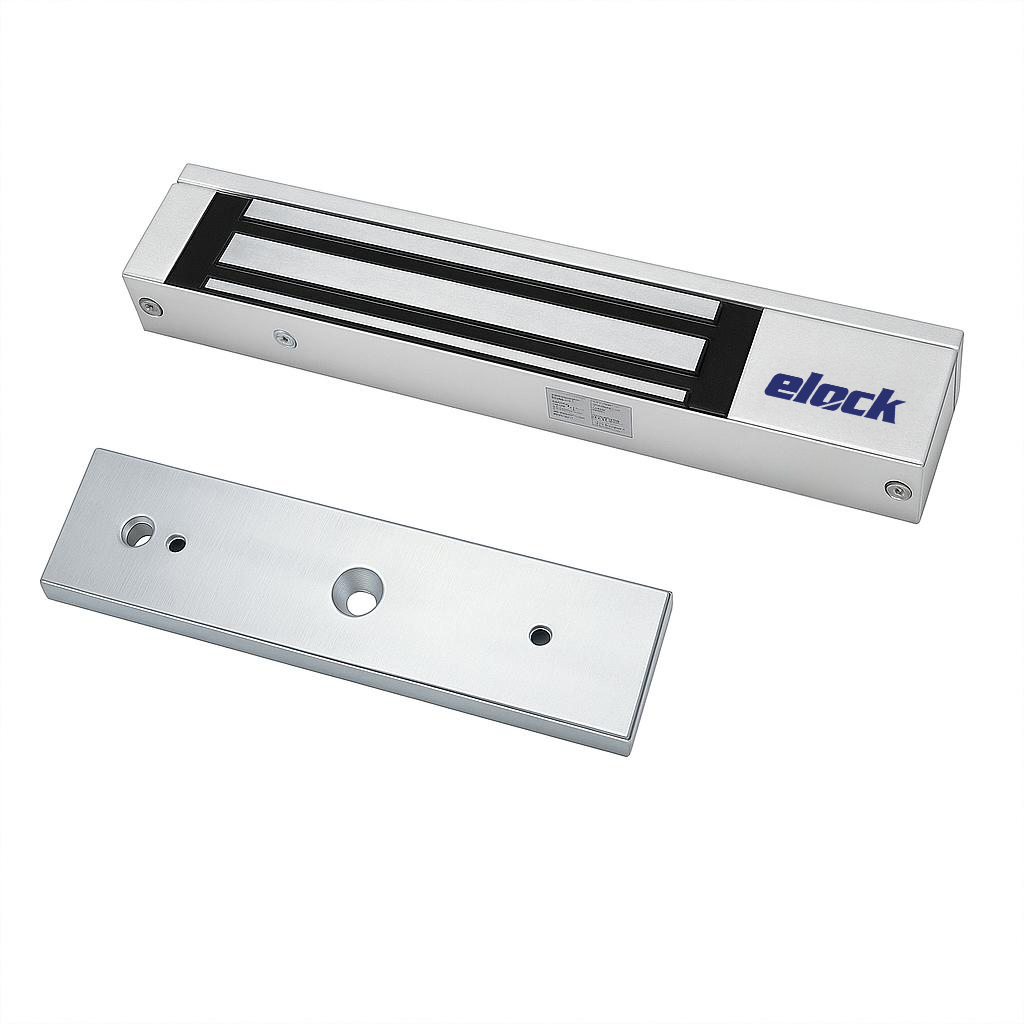

ELOCK-600(UL) EM Lock

The Elock-600(UL) electromagnetic lock is capable of holding doors weighing up to 600lbs.


  • Certification: UL Certified
  • Holding Force: 600lbs
  • Operating Voltage: 12V/24VDC
  • Current Consumption: 500mA/250mA
  • Lock Type: Fail-safe type
  • Dimension: 250mm x 41mm x 26mm
  • Optional Accessories: EL-BK-L600 L Bracket; EL-BK-U600 U Bracket; EL-BK-Z600 ZL Bracket
  • Product Code: ELOCK-600(UL)

Download Our Data Sheet Here
