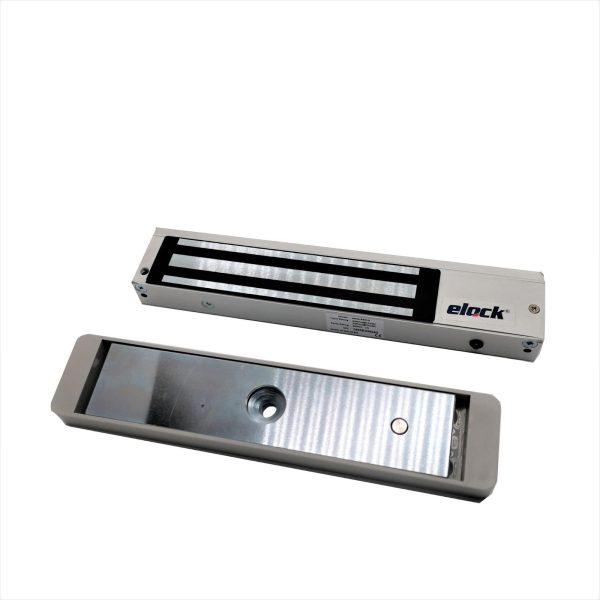

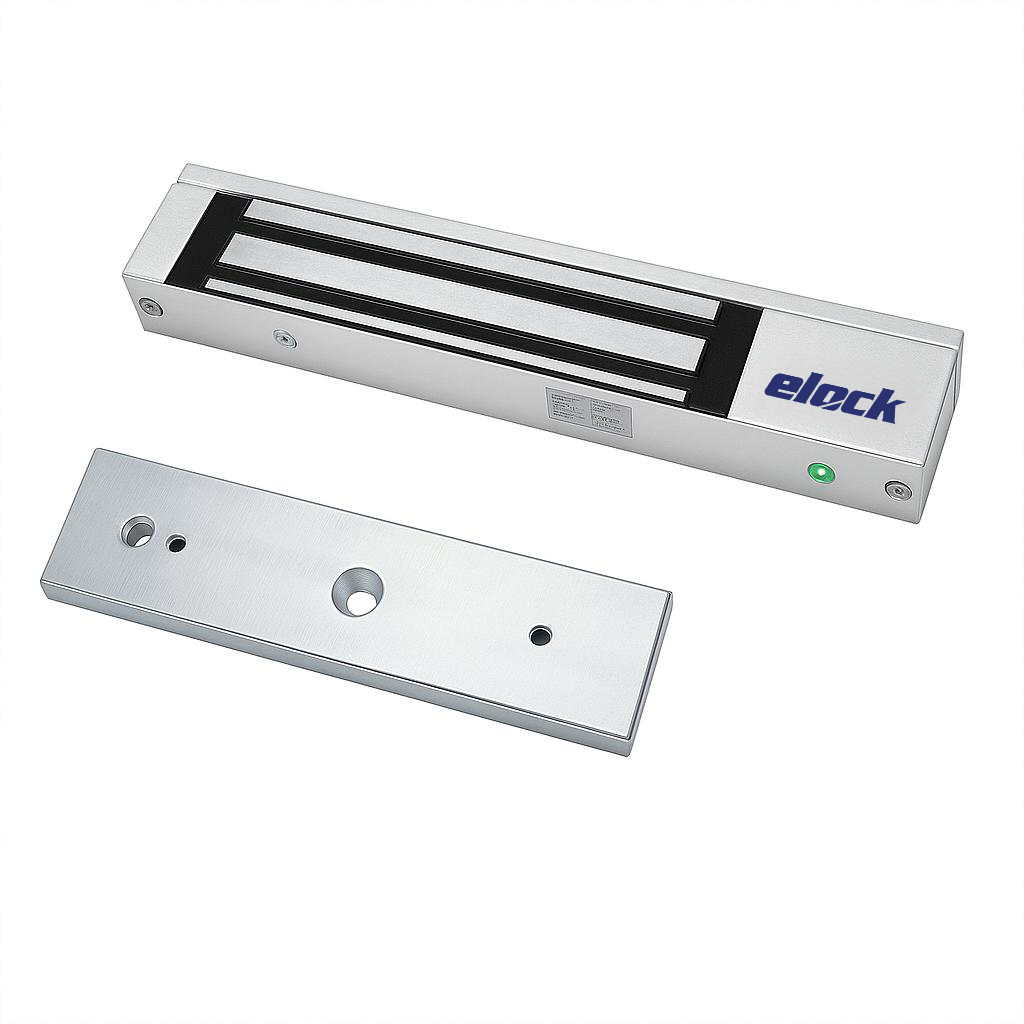

ELOCK-600LD electromagnetic locks, built-in with Door Status Sensor, offer cost effective solution with easy installation & suitable for variety of application. It has no moving part thus keeping maintenance to a minimum. All types of brackets are available to ease installation for both in-swing & out-swing doors.


  • Holding Force : 600lbs
  • Dual Voltage 12 & 24VDC
  • Current Drawn : 500mA (12VDC) / 250mA (24VDC)
  • MOV Surge Current Protection
  • Lock Type: Fail Safe Type
  • Push-off Button On Armature For Instant Release

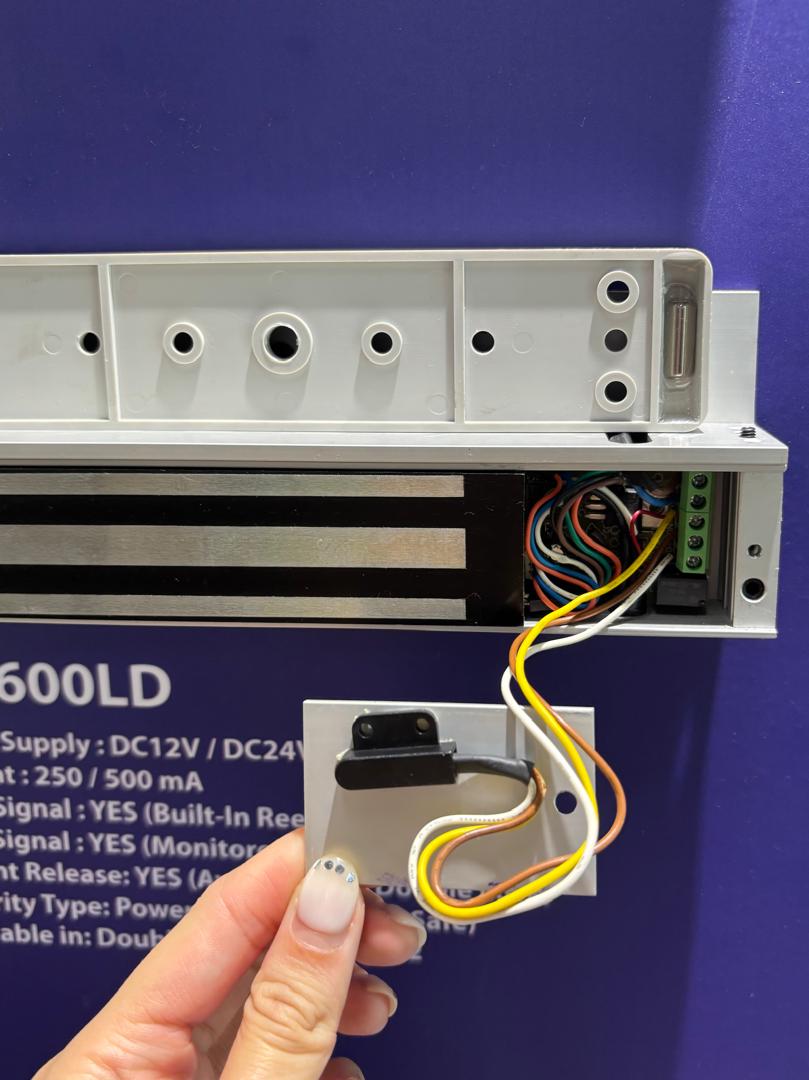

  • Door status sensor indicates the door is in an open or closed status.
  • Door status output : SPDT rated 0.2A/12VDC
  • Monitored version; Built-in bond sensor indicates the Locked & Unlocked status with visible LED indicator.
  • Bond sensor output : SPDT rated 0.5A/125VAC; 1A/24VDC
  • Push-off button on armature for instant release
  • “L” Bracket and “Z” Brackets Available for Easy Mounting

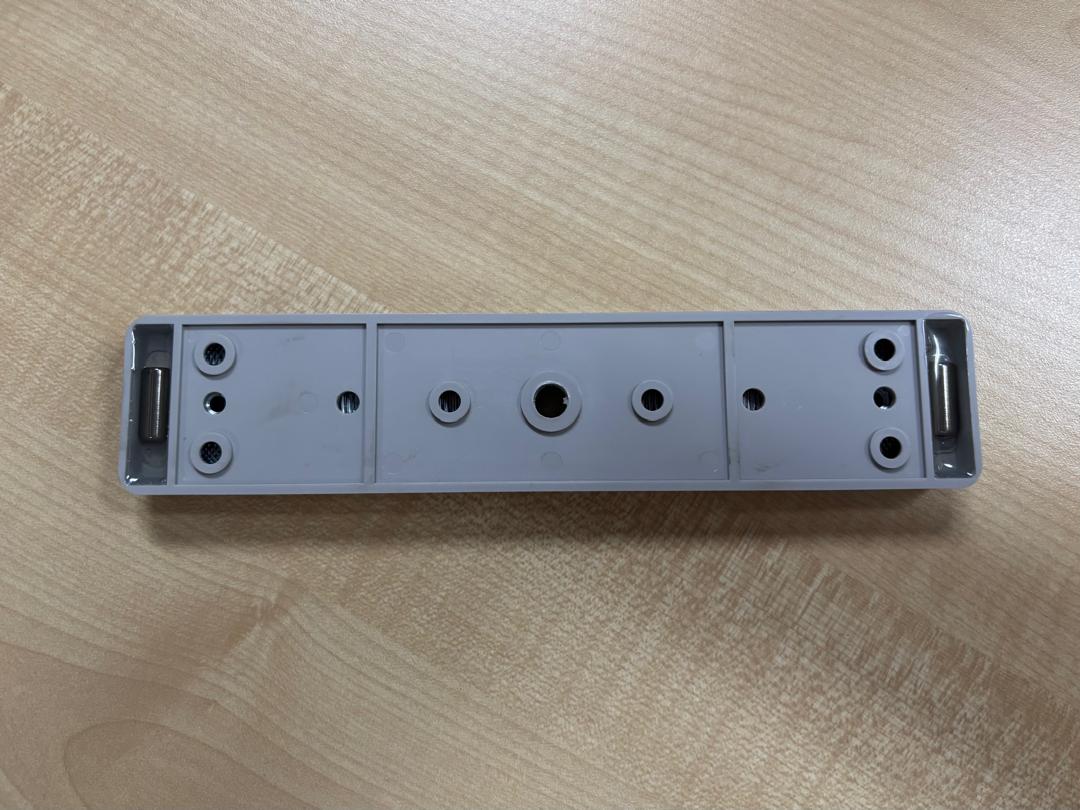

  • Dimension : – Magnet : 250(L) x 41(W) x 26(D) mm; Armature Plate : 170(L) x 38(W) x 11(D) mm
  • Optional Accessories: EL-BK-L600 L Bracket; EL-BK-U600 U Bracket; EL-BK-Z600 ZL Bracket
  • Product Code : ELOCK-600LD
