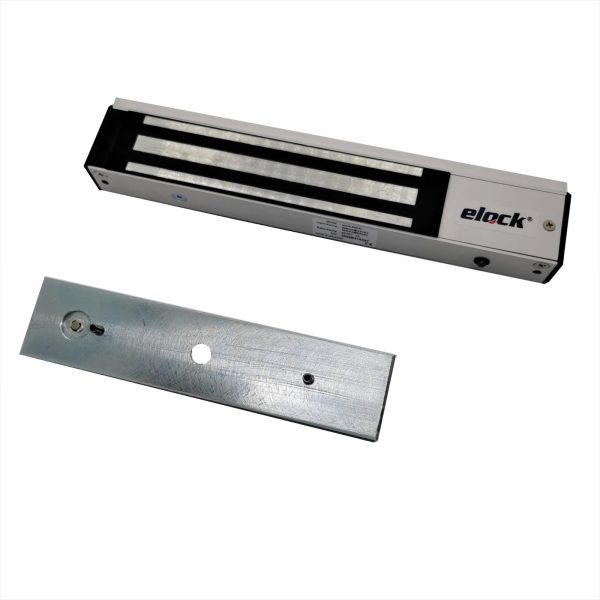

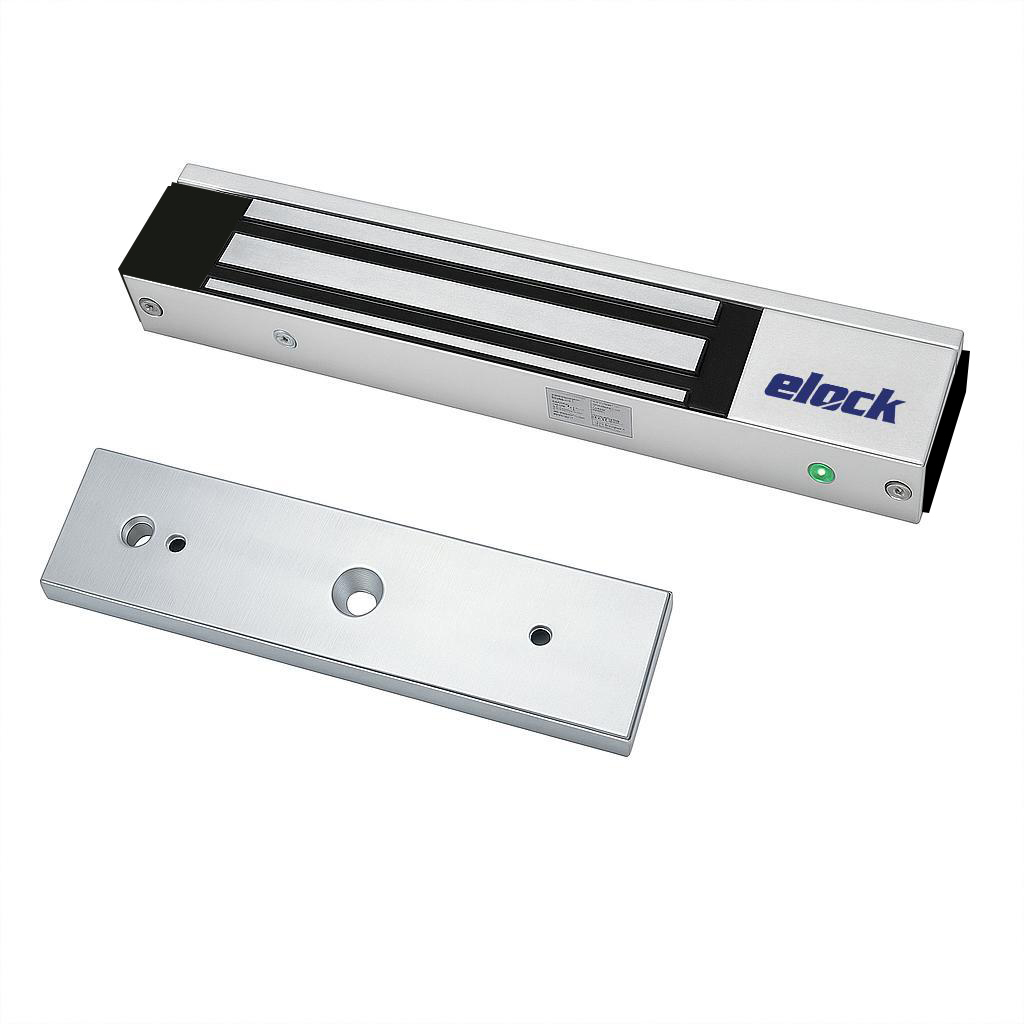

The Elock-600AL electromagnetic lock is capable of holding doors weighing up to 600lbs. The lock is reinforced with ABS plastic bracket as add-on protection; it also comes with indication device to monitor the status of the premises, whether it is opened or closed.


  • Holding Force: 600lbs
  • Operating Voltage: 12V/24VDC
  • Current Consumption: 500mA/250mA
  • Lock Type: Fail-safe type
  • Dimension: 250mm x 41mm x 26mm
  • Re-enforced ABS plastic bracket
  • LED, magnetic bond sensor
  • N.O / N.C / Relay
  • ¬†Optional Accessories: EL-BK-L600 L Bracket; EL-BK-U600 U Bracket; EL-BK-Z600 ZL Bracket
  • Product Code : ELOCK-600AL

Download Our Data Sheet Here
