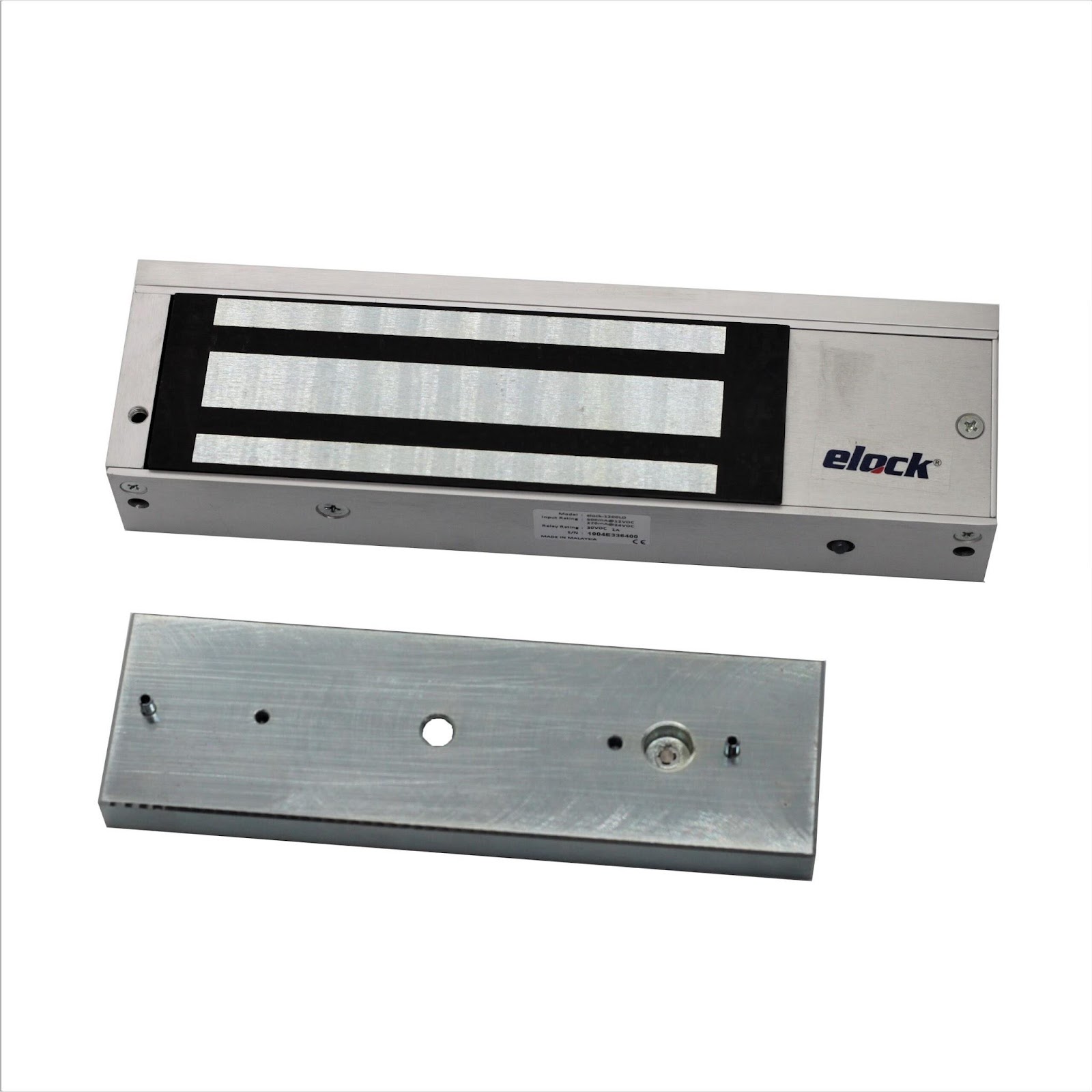

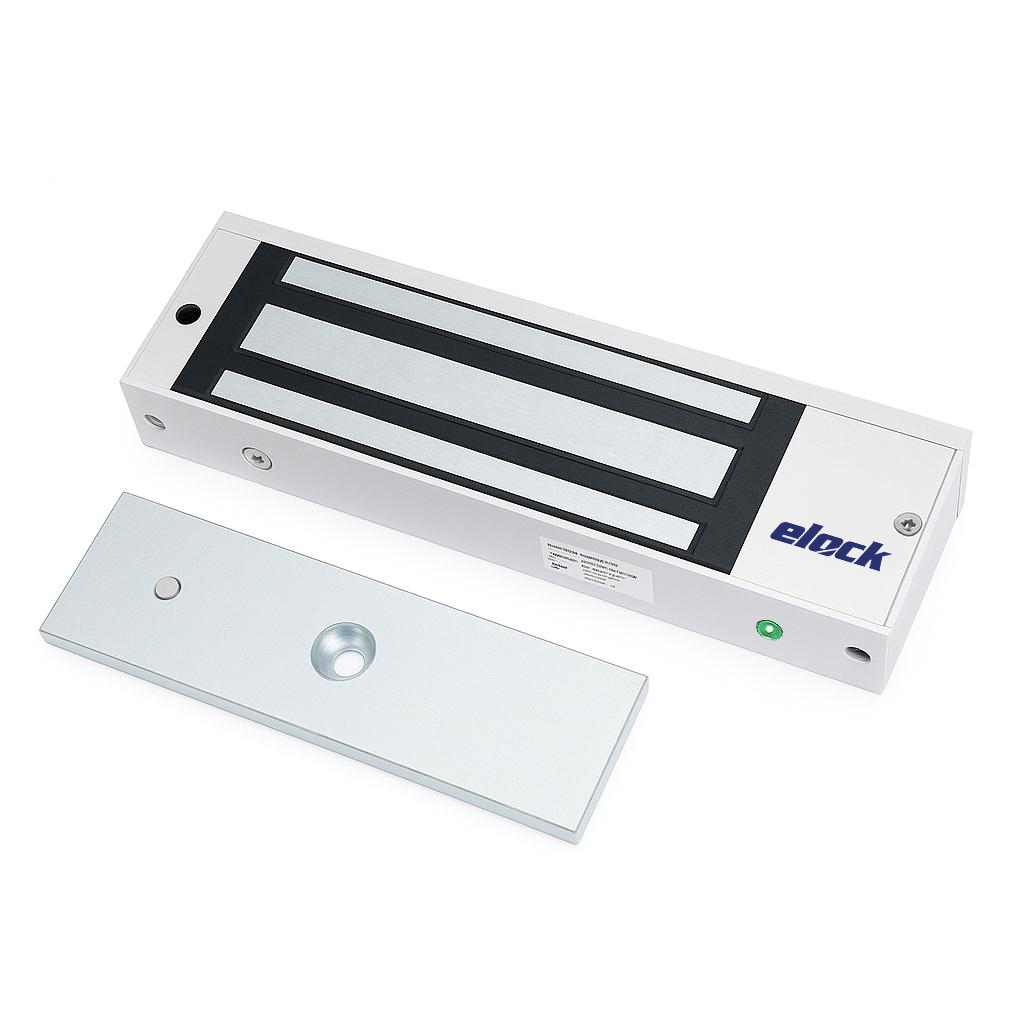

ELOCK-1200LD EM Lock

ELOCK-1200LD electromagnetic locks, built-in with Door Status Sensor, offer cost effective solution with easy installation & suitable for variety of application. It has no moving part thus keeping maintenance to a minimum. All types of brackets are available to ease installation for both in-swing & out-swing doors.


  • Holding Force : Up to 1200lbs
  • Dual Voltage 12 & 24VDC
  • Current Drawn : 500mA (12VDC) / 250mA (24VDC)
  • MOV Surge Current Protection
  • Lock Type: Fail-Safe Type
  • Push-off Button On Armature For Instant Release
  • Door status sensor indicates the door is in an open or closed status.
  • Door status output : SPDT rated 0.2A/12VDC
  • Monitored version, Built-in
  • Bond sensor Indicate the locked & unlocked status with visible LED indicator.
  • Bond sensor output : SPDT rated 0.5A/125VAC; 1A/24VDC
  • Push-off button on armature for instant release
  • “L” Bracket and “Z” Brackets Available for Easy Mounting
  • Dimension : Magnet : 265(L) x 66(W) x 40(D) mm; Armature Plate : 200(L) x 60(W) x 17(D) mm
  • Optional Accessories: EL-BK-L1200 L Bracket; EL-BK-Z1200 ZL
  • Bracket Product Code : ELOCK-1200LD

Download Our Data Sheet Here
