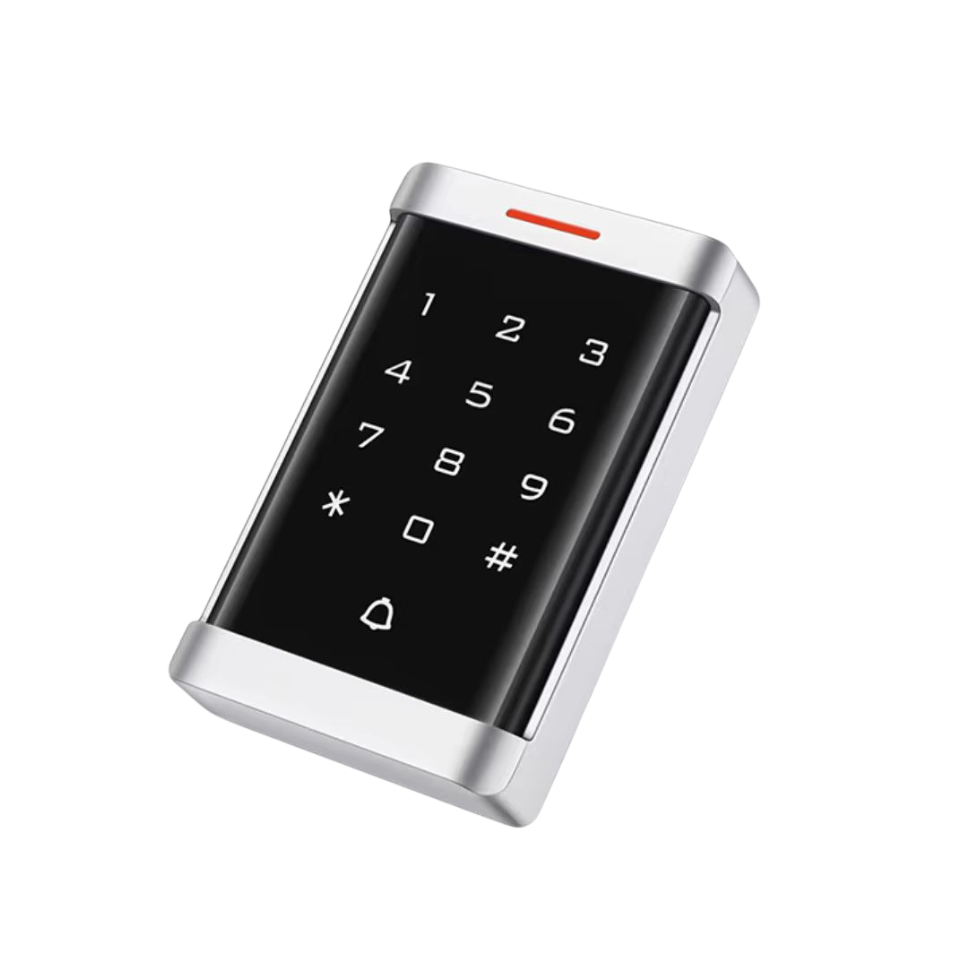

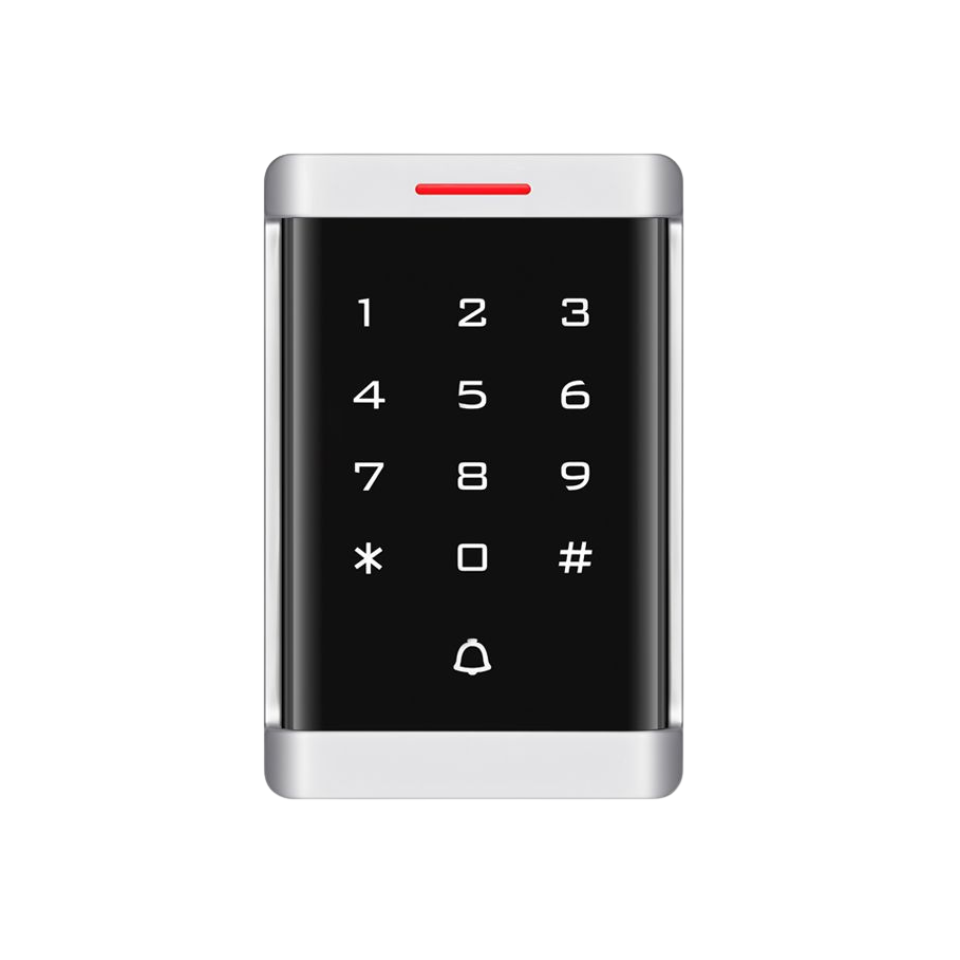

EL-T1103MFW Touch Access Keypad Controller
Category

EL-T1103MFW Touch Access Keypad Controller

The EL-T1103MFW is a durable, anti-vandal touch access keypad controller designed for secure entry management using card and PIN authentication. Built with a rugged metal housing and a superior waterproof rating, it provides reliable performance in extreme weather conditions and high-risk environments.

  • Authentication Methods: PIN or Card.

  • User Capacity: 2,000 cards / pins.

  • Card Technology: 13.56MHz Mifare Card.

  • Reading Performance: 20~50mm (2”) max.

  • Environmental Protection: IP68 (Dust Tight & Waterproof 1m).

  • Construction: Metal Housing (Anti-Vandal).

  • Input/Output Formats: Wiegand Interface 26 bits.

  • Power Requirements: DC12V.

  • System Compatibility: Can be paired with MX63 Elock X Access Controller or used as a standalone unit.

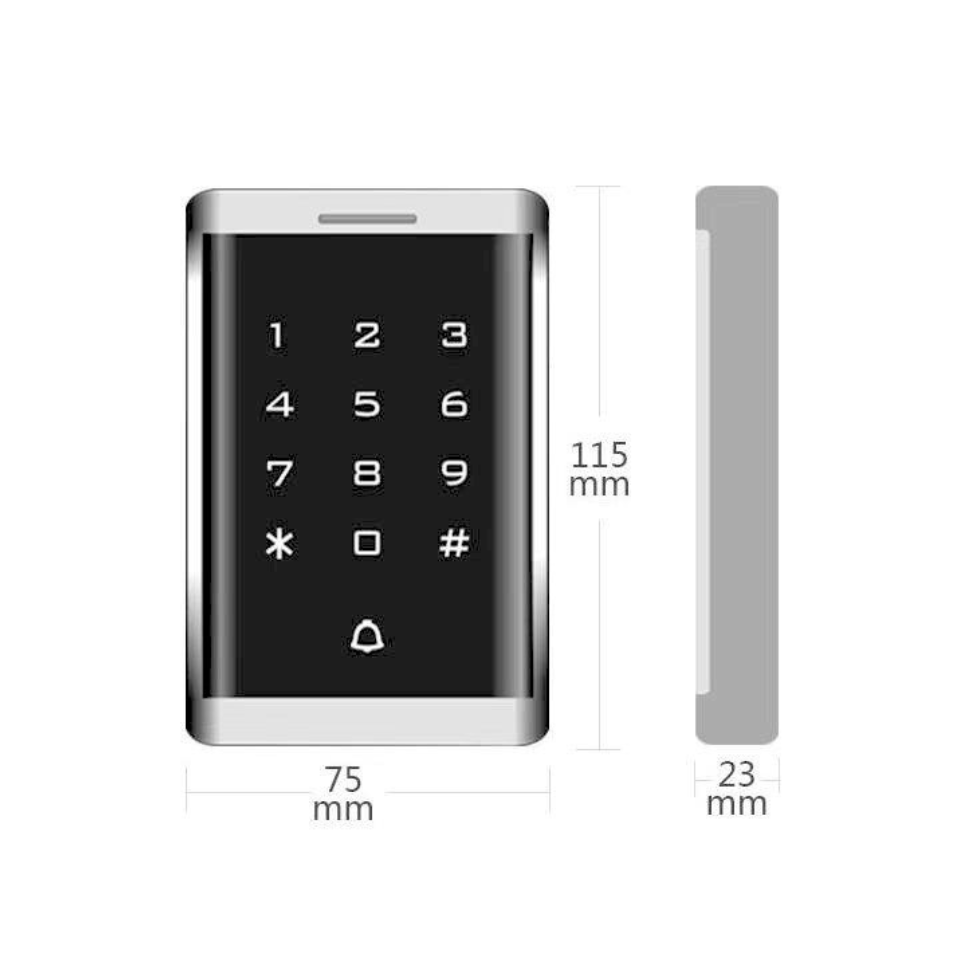

  • Physical Dimensions: 115 (H) x 23 (D) x 75 (W) mm.

  • Available Variants: EL-T1103EM 125kHz EM Card.
