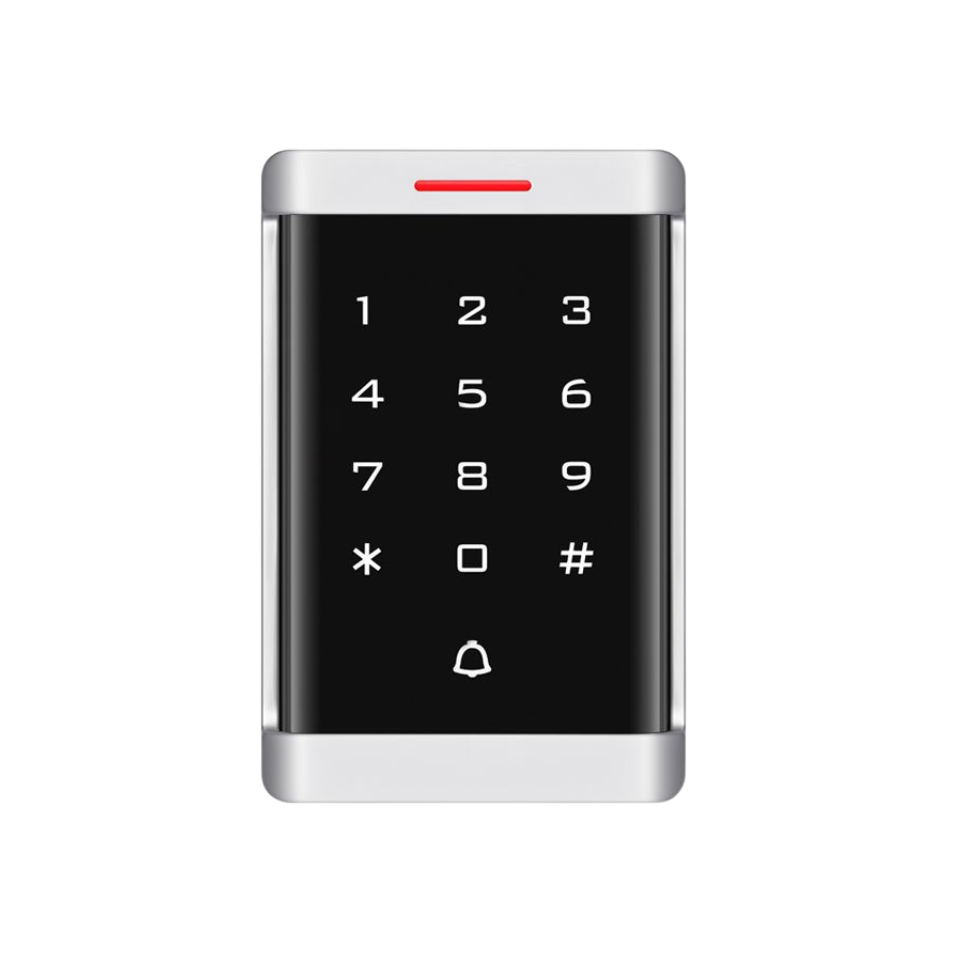

EL-T1103MFW Touch Access Keypad Controller
Category

EL-T1103MFW Touch Access Keypad Controller

The EL-T1103MFW is a high-security touch access controller featuring a robust, anti-vandal metal housing. It is designed for both standalone use and integration into larger access control systems, offering superior environmental protection for various installation sites.

  • User Capacity: Efficiently manages up to 2,000 unique cards or PINs.

  • Card Technology: Supports 13.56MHz Mifare Cards for secure authentication.

  • Reading Distance: Offers a maximum card reading range of 20mm to 50mm (2”).

  • Access Methods: Provides flexible entry via PIN code or Card.

  • Environmental Protection: IP68 rated, making it dust-tight and waterproof for submersion up to 1m.

  • Construction: Built with an anti-vandal metal housing to withstand physical tampering.

  • Power Requirements: Operates on a standard DC12V input voltage.

  • Communication Interface: Features a standard 26-bit Wiegand interface.

  • System Integration: Compatible with the MX63 Elock X Access Controller or can function as a standalone unit.

  • Physical Dimensions: Measures 115mm (H) x 23mm (D) x 75mm (W).

  • Alternative Model: Also available as the EL-T1103EM, which supports 125kHz EM cards.
