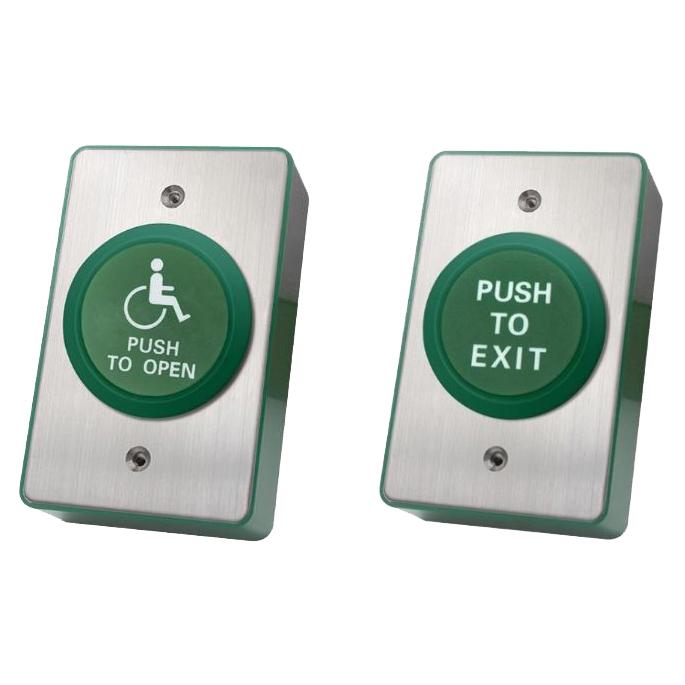

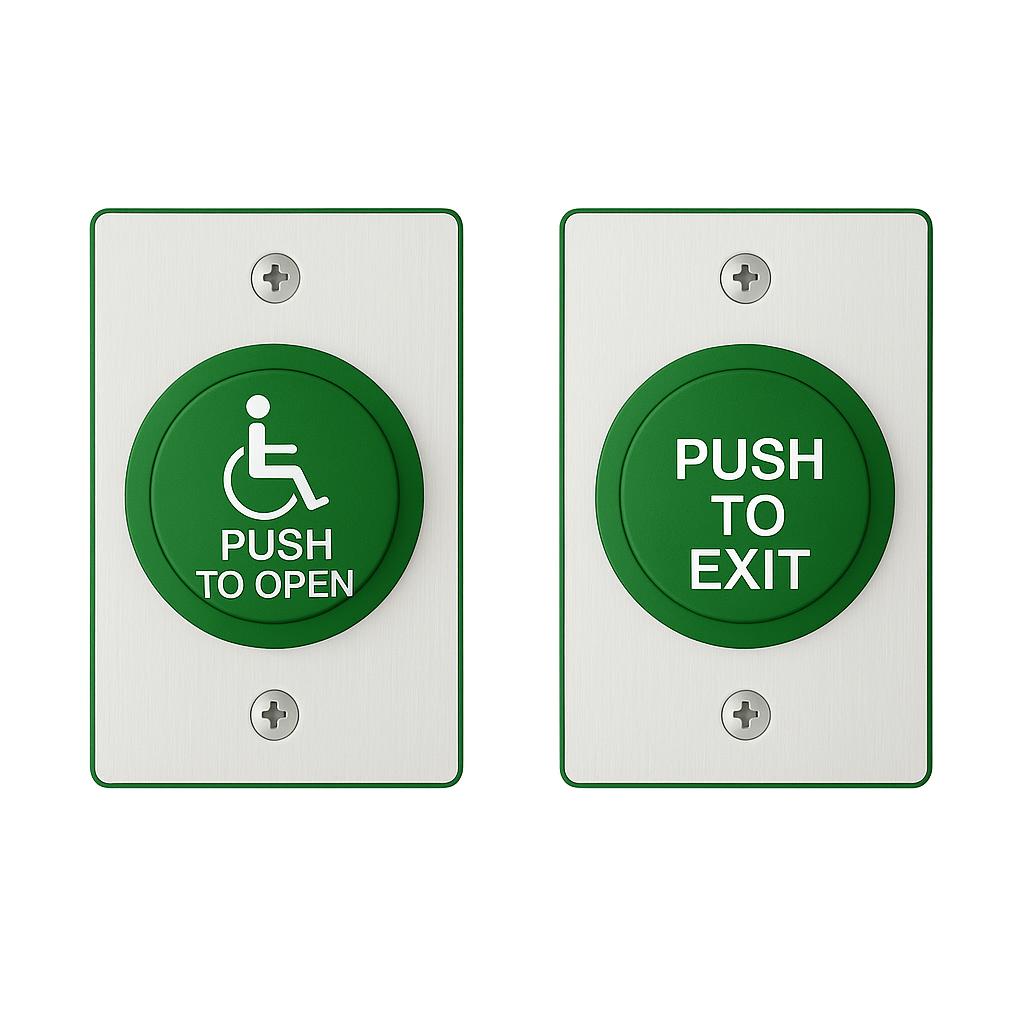

EL-ST870-D/P Stainless Steel Exit Button

Specifications:

  • Dimension: 115*70*30m (SP870)
  • Standard Structure: Stainless Steel Panel, Metal Button
  • Panel Material: 304 Stainless Steel
  • Current: 3A@36VDC Max
  • Output Contact: NO/NC/COM
  • Optional Accessories: EL-PG70
  • Mechanical Life: 1000,000 tested
  • Weatherproof Rating: IP65
  • Operating Temperature: 10‐55℃ (14-131F)
  • Operating Humidity: 0-95% (non-condensing)
  • Weight: 0.28 kg
  • Ideal for general use
  • Easy cable entry from rear
  • Screw footprint for flush fitting onto standard back box
