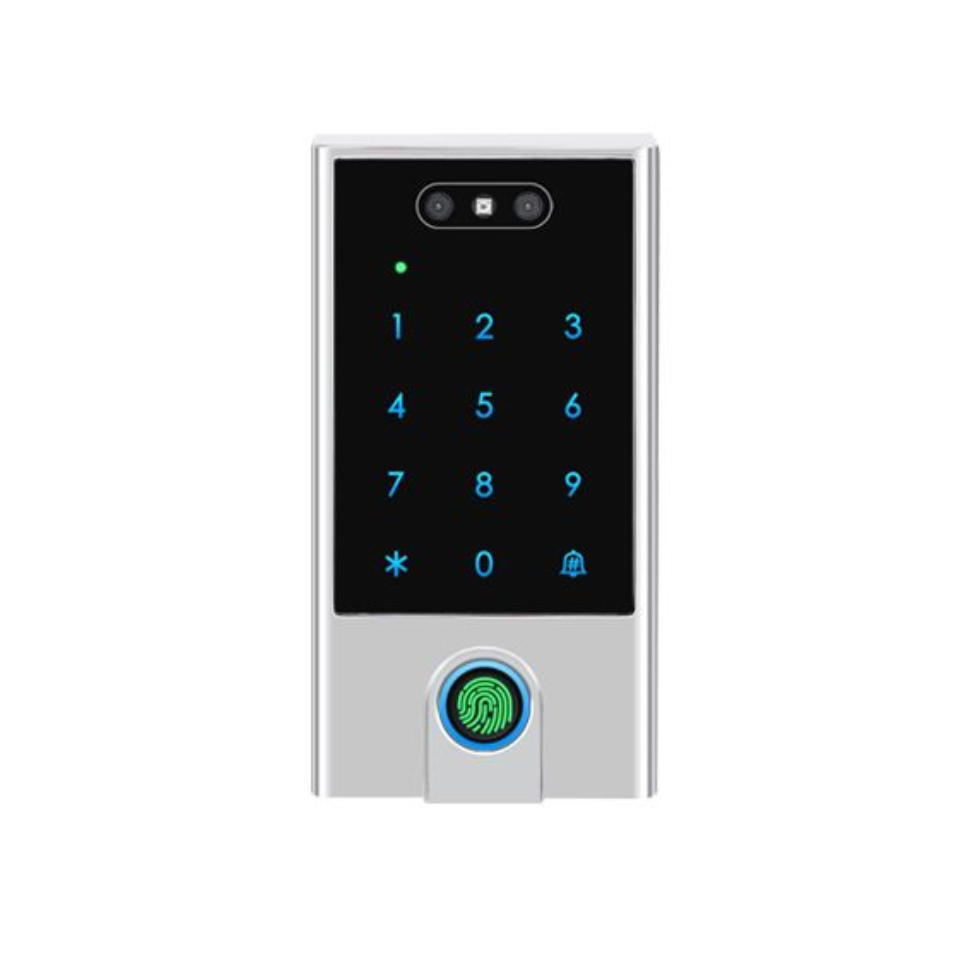

EL-ST300 Biometric Access Controller
Category

EL-ST300 Biometric Access Controller

The EL-ST300 is an advanced, anti-vandal biometric access controller that integrates multiple secure authentication methods, including facial recognition and fingerprint scanning. Designed for both standalone use and system integration, it features a rugged metal housing and a high waterproof rating for reliable operation in demanding environments.

  • Authentication Methods: Offers quadruple entry options via Face, Fingerprint, Card, or PIN.

  • User Capacity: High-volume management supporting 300 Face profiles, 500 Fingerprints, and 5,000 Cards/PINs.

  • Card Technology: Dual compatibility with 13.56MHz Mifare (IC) and 125kHz EM (ID) cards.

  • Reading Performance: Maximum card reading range of 20mm to 40mm (1.6″).

  • Environmental Protection: IP66 (Waterproof) rated, suitable for outdoor or exposed installations.

  • Construction: Durable Anti-Vandal Metal Housing for enhanced physical security.

  • Input/Output Formats:

    • EM Card: Wiegand 26 to 44 bits (Default: 26 bits).

    • Mifare Card: Wiegand 26 to 44, 56, or 58 bits (Default: 34 bits).

    • PIN Output: Configurable for 4 or 8 bits (ASCII) or 10 digits virtual number (Default: 4 bits).

  • System Connections: Includes wiring for Relay Output, Exit Button, and Doorbell.

  • Power Requirements: Operates on a flexible DC 12V to 18V input voltage.

  • System Compatibility: Can be paired with an MX63 Elock X Access Controller or used as a standalone unit.

  • Physical Dimensions: Measures 133mm (H) x 66mm (W) x 25mm (D).
