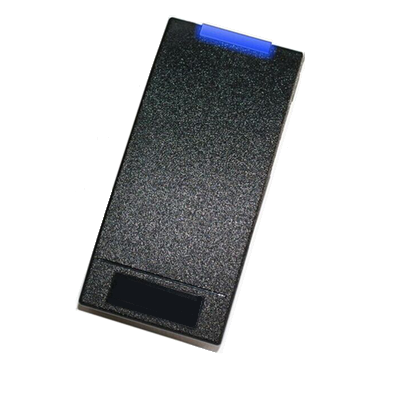

EL-SR10D Proximity ID Reader

Elock EL-SR10D weatherproof proximity ID card reader with wiegand format.

Specifications:

  • Reading Range : ≤ 50mm
  • Input Voltage : 9 ~ 16VDC, 12VDC (Recommended)
  • Current Consumption : ≤ 80mA
  • Data Format : Wiegand 26/34bit
  • Carrier Frequency : 13.56MHz
  • LED Indicator : Blue and Green Cable
  • Distance : ≤100m
  • Dimension : 100mm x 46mm x 20mm
  • Operating Temperature : −20⁰C ~ 70⁰C

Key Features:

  • Weatherproof and slim design
  • Easy and trouble free installation
  • Wiegand Interface
  • LEDs and electronic buzzer indication
  • EM proximity card compatible
  • Exceptional level of detection capability, high reliability, consistent read-range and stability
