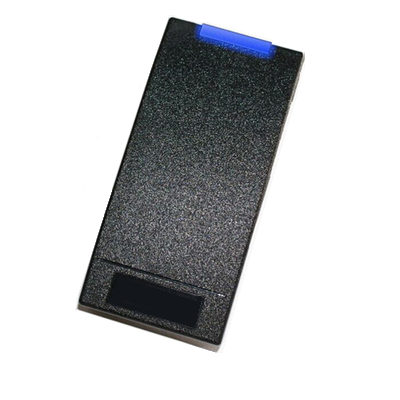

EL-SR10C Proximity Mifare Reader

Elock EL-SR10C weatherproof proximity 13.56MHz mifare card reader with wiegand format.

Specifications:

• Reading Range : ≤ 50mm
• Input Voltage : 9 ~ 16VDC, 12VDC (Recommended)
• Current Consumption : ≤ 80mA
• Data Format : Wiegand 26/34bit
• Carrier Frequency : 13.56MHz
• LED Indicator : Blue and Green
• Cable Distance : ≤100m
• Dimension : 100mm x 46mm x 20mm
• Operating Temperature : −20⁰C ~ 70⁰C

Key Features:

• Weatherproof and slim design
• Easy and trouble free installation
• Wiegand Interface
• LEDs and electronic buzzer indication
•  EM proximity card compatible
• Exceptional level of detection capability, high reliability, consistent read-range and stability
