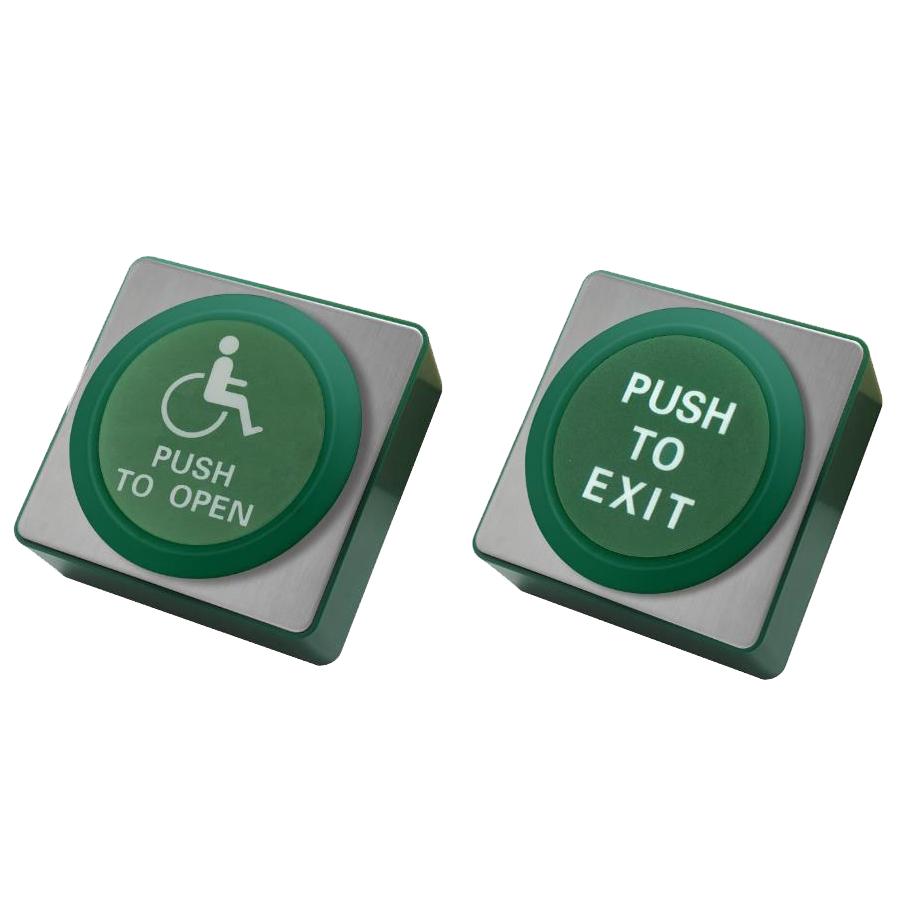

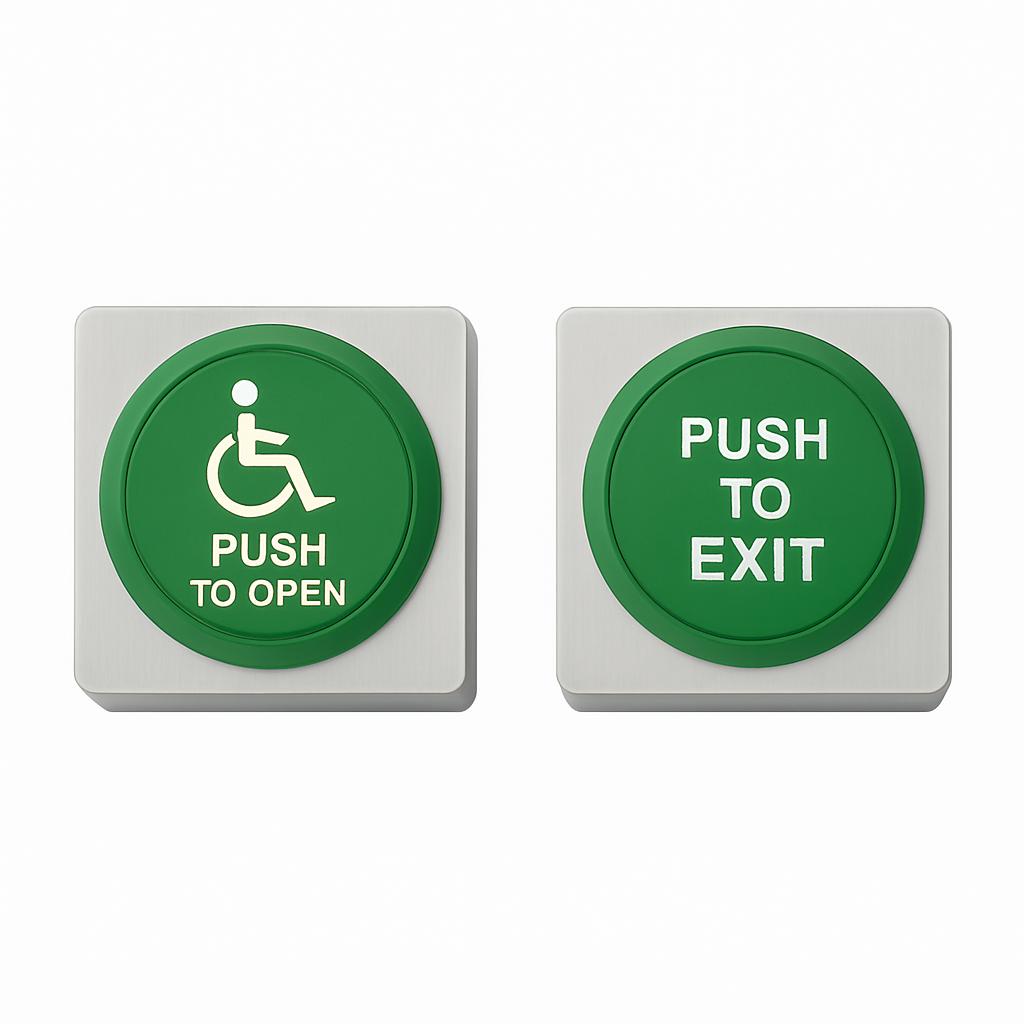

EL-SP886-D/P Stainless Steel Exit Button
Specifications:
- Dimension: 86*86*30m (SP886)
- Standard Structure: Stainless Steel Panel, Metal Button
- Panel Material: 304 Stainless Steel
- Current: 3A@36VDC Max
- Output Contact: NO/NC/COM
- Optional Accessories: EL-PG86
- Mechanical Life: 1000,000 tested
- Weatherproof Rating: IP65
- Operating Temperature: 10‐55℃ (14-131F)
- Operating Humidity: 0-95% (non-condensing)
- Weight: 0.29 kg
- Ideal for general use
- Easy cable entry from rear
- Screw footprint for flush fitting onto standard back box
