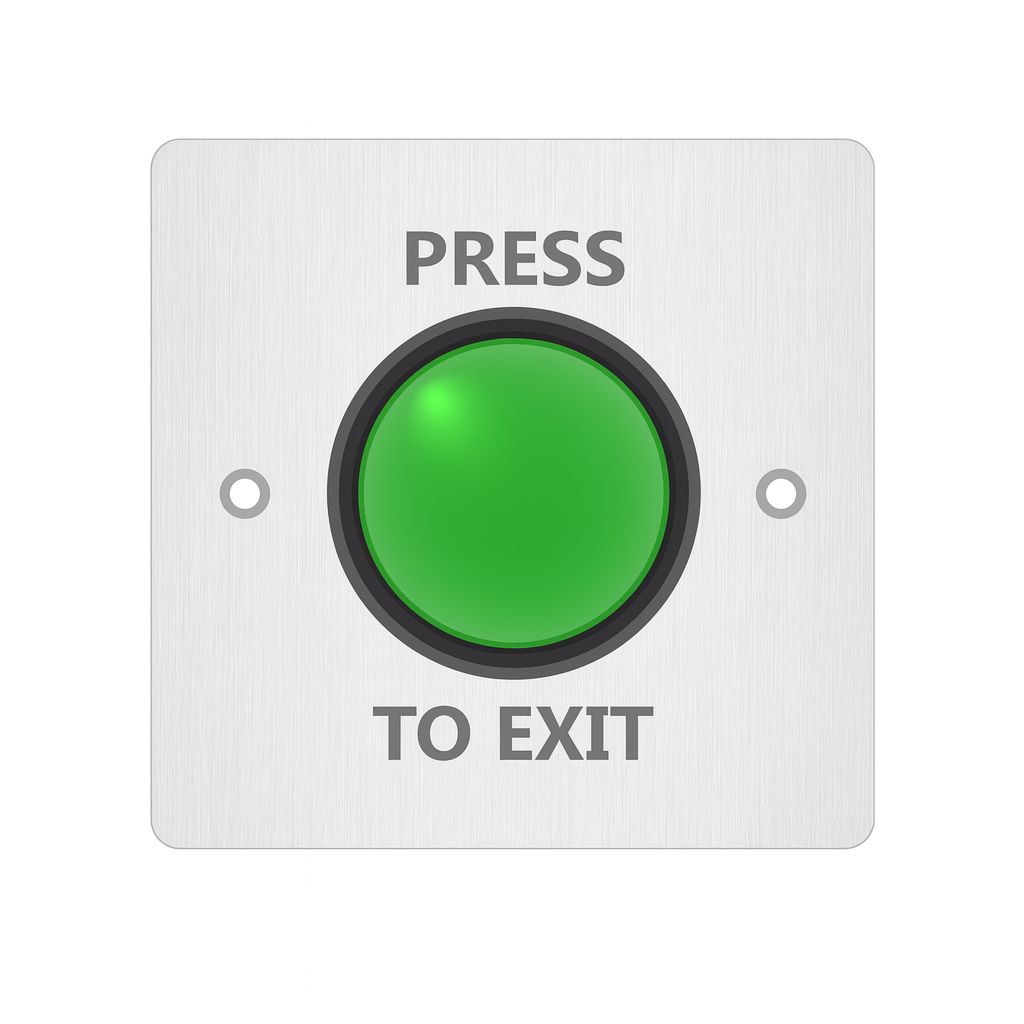

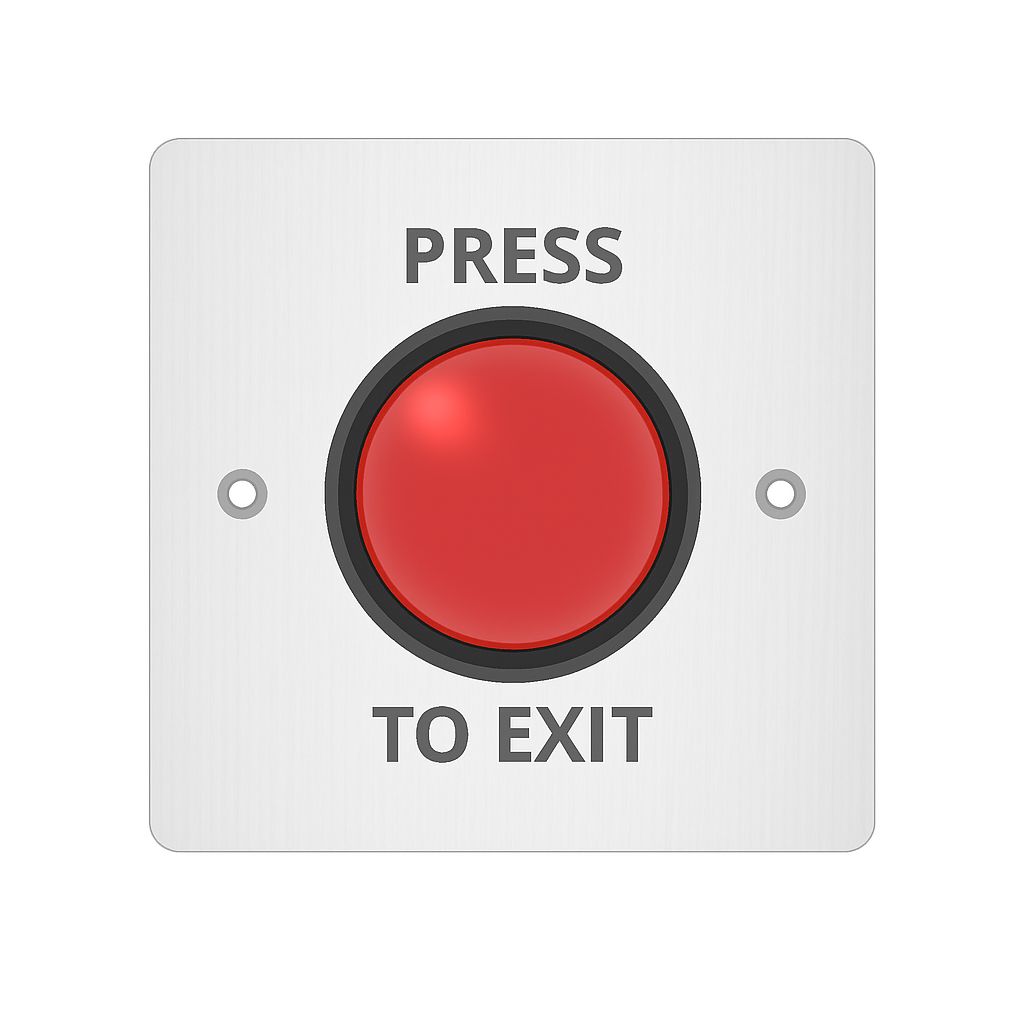

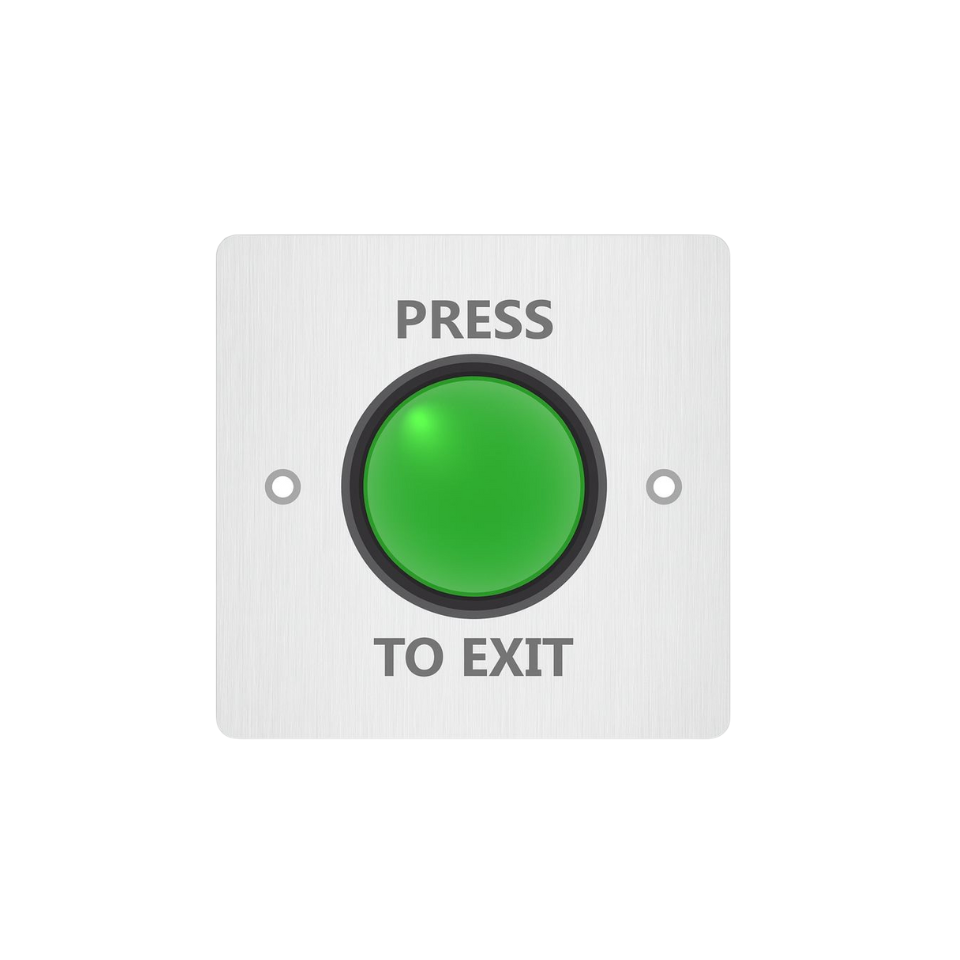

EL-S886M5 Waterproof Mushroom Exit Button
The EL-S886M5 is a heavy-duty mushroom exit button designed for tough environments. Featuring a stainless steel panel with a durable plastic button, it is built to withstand intensive use and extreme conditions. With an IP68 rating, it is fully dust-tight and waterproof up to 3 meters, making it suitable for both indoor and outdoor installations. Tested for 1,000,000 cycles and operating across a wide temperature range (-20°C to +55°C), the EL-S886M5 ensures long-lasting reliability even in demanding applications.
• Contact Rating: 3A @ 36VDC Max
• Contact Type: N.O / N.C / COM
• Frequency: 433.92 MHz
• Material: Stainless Steel Panel + Plastic Button
• IP Rating: IP68 (Dust Tight & Waterproof up to 3m)
• Mechanical Life: 1,000,000 Aging Test Qualified
• Operating Temperature: -20°C to +55°C

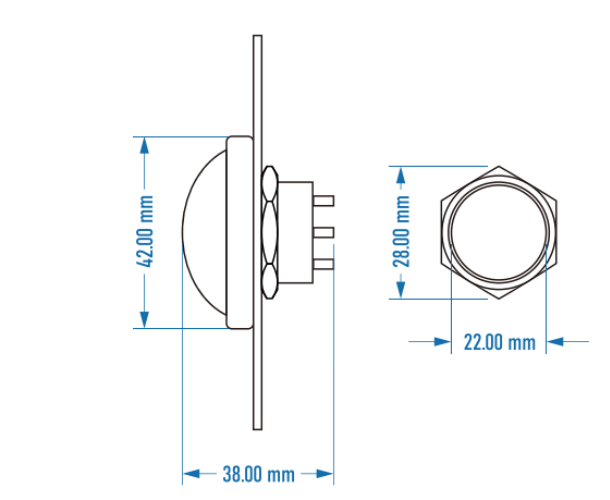

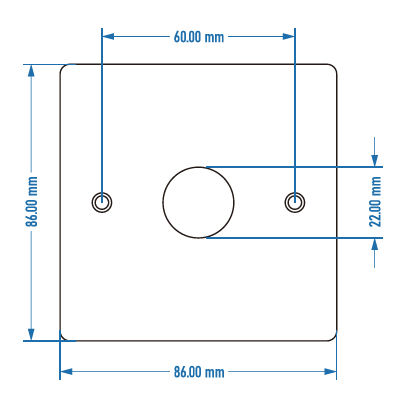

• Dimension: 86 (H) × 20 (D) × 86 (W) mm
This model ensures reliable performance with a sturdy build and long service life — ideal for high-traffic or critical exit points.
