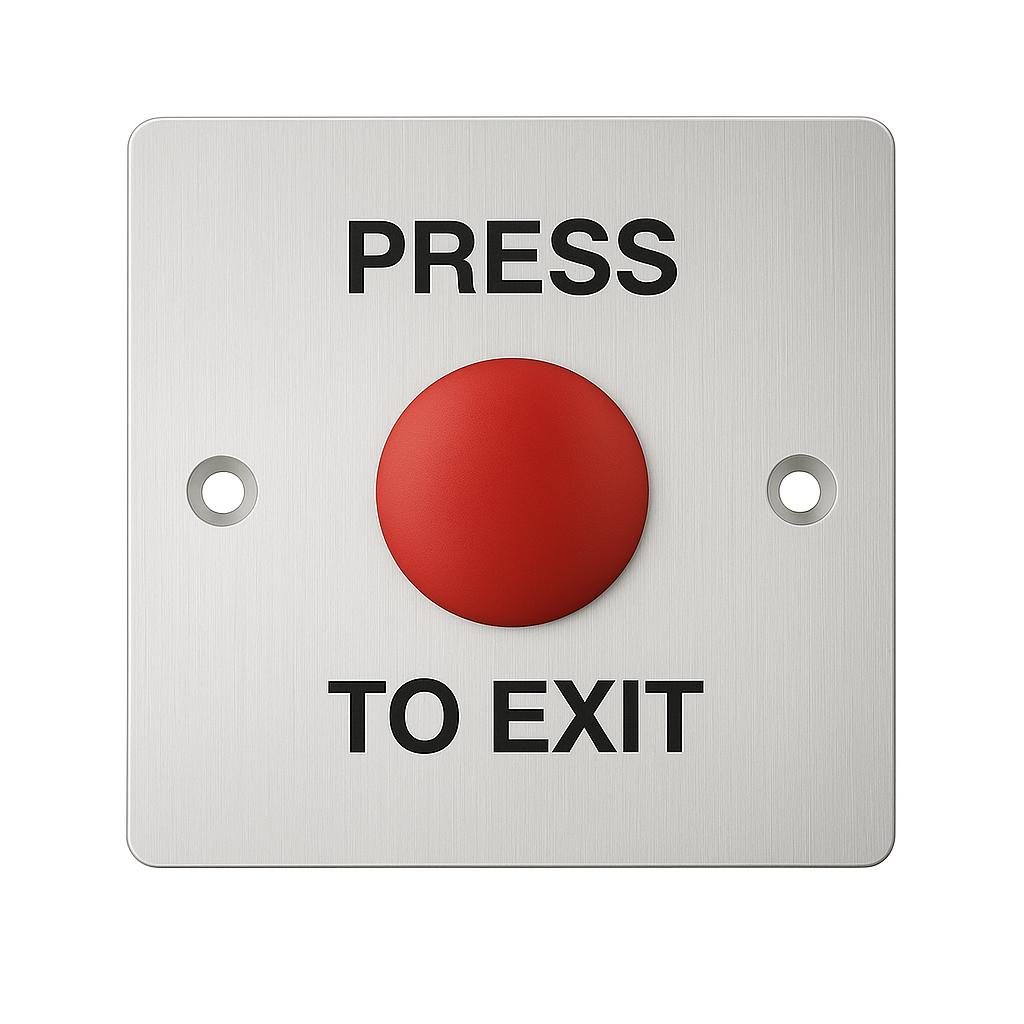

EL-S886M3 Mushroom Exit Button

EL-S886M3 series button is casted by 304 stainless steel with drawing panel processing. It is elegant style with long time usage.

Specification:

  • Dimension : 86mm(L) x 86mm(W) x 25mm(H)
  • Standard Structure: Stainless Steel Panel, Steel Button
  • Panel Material: 304 Stainless Steel, Wire Drawing Finished
  • Contact Rating: 3A@36VDC Max
  • Output contact: NO/COM
  • Mechanical Life: 500,000
  • Tested Certification: CE Approved
  • Operating Temperature: 10°C ~ 55°C
  • Weight: 149g
