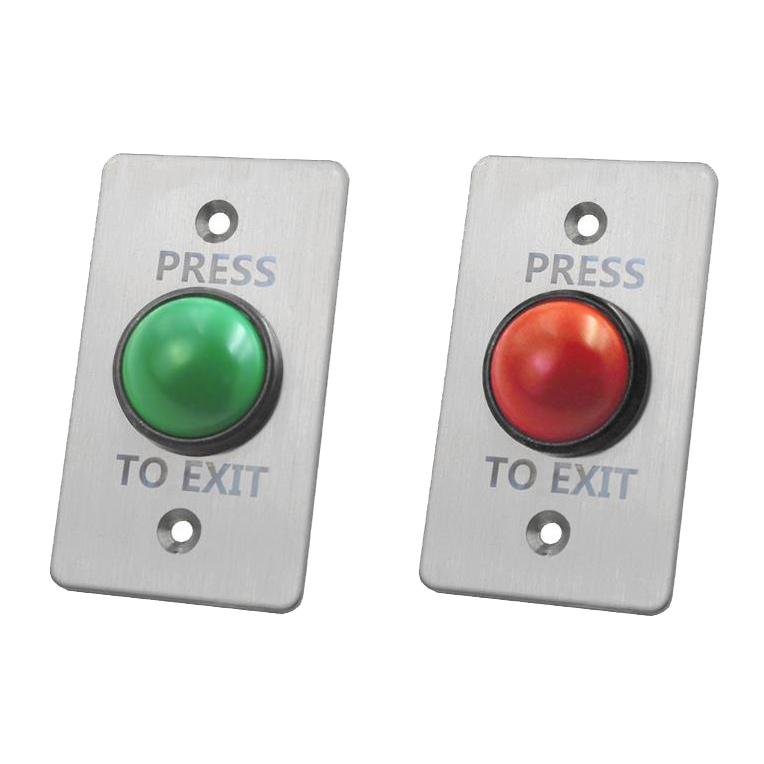

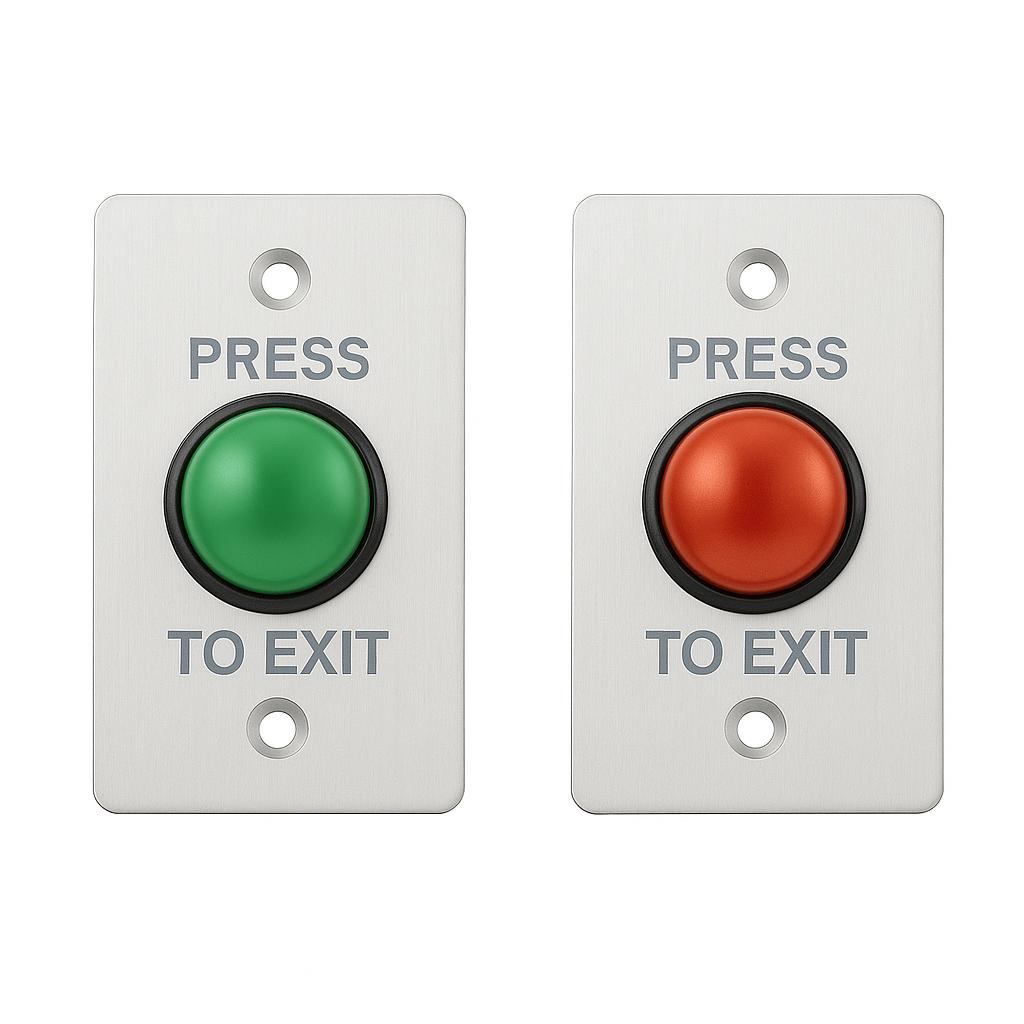

EL-S870M5 Stainless Steel Exit Button

EL- S870M5 series button is casted by 304 stainless steel with drawing panel processing. 22mm φ dome mushroom plastic switch is easy-to-install. The superior design of the buttons and quality construction offer good market feedback.

Specifications:

  • Dimension: 115*70*25m (S870M5)
  • Standard Structure: Stainless Steel Panel, Plastic mushroom Button
  • Panel Material: 304 Stainless Steel, Wire Drawing Finished
  • Current: 3A@36VDC Max
  • Output Contact: NO/NC/COM
  • Mechanical Life: 500,000 tested
  • Weatherproof Rating: IP65
  • Operating Temperature: 10‐55℃ (14-131F)
  • Operating Humidity: 0-95% (non-condensing)
  • Weight: 0.14kg
