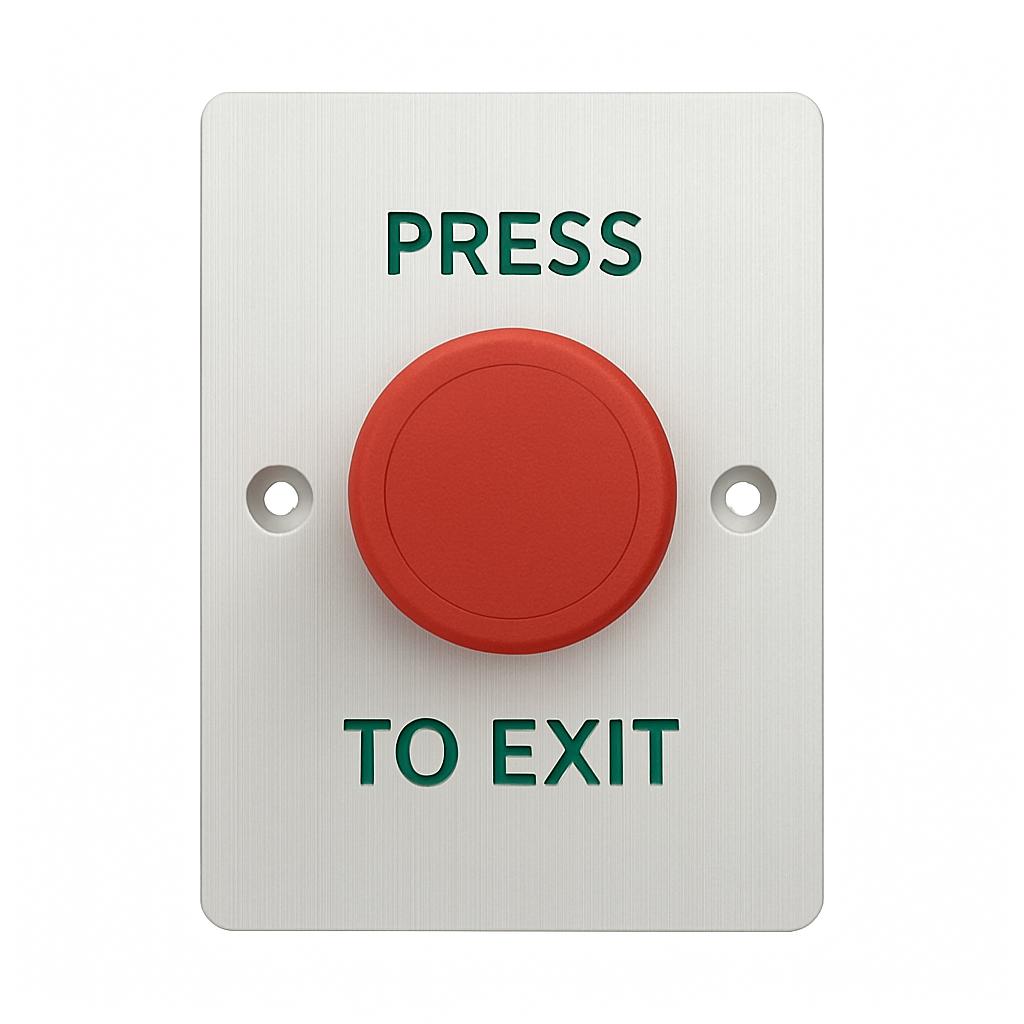

EL-S870-M9 Latching Emergency Exit Button

EL-S886R is casted by 304 stainless steel with drawing panel processing. Using in emergency situations. It is elegant style with long time usage.

Specifications:

  • Dimension: 86*86*20mm
  • Standard Structure: Stainless Steel Panel, Stainless Steel switch
  • Panel Material: 304 Stainless Steel
  • Current: 3A@36VDC Max
  • Output Contact: NO/COM
  • Optional Accessories: M86
  • Mechanical Life: 500,000 tested
  • Operating Temperature: 10‐55℃ (14-131F)
  • Operating Humidity: 0-95% (non-condensing)
  • Weight: 0.15kg
