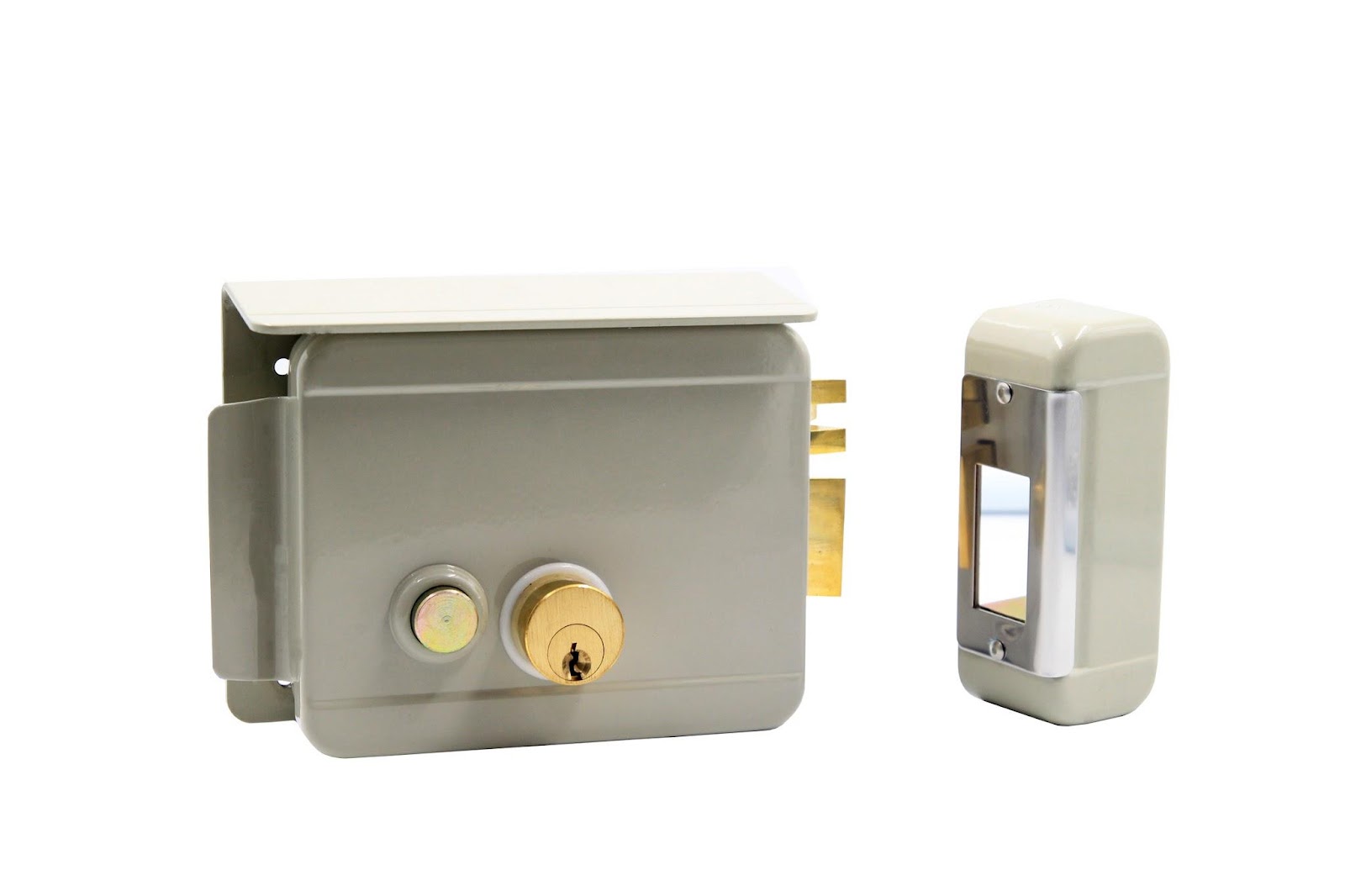

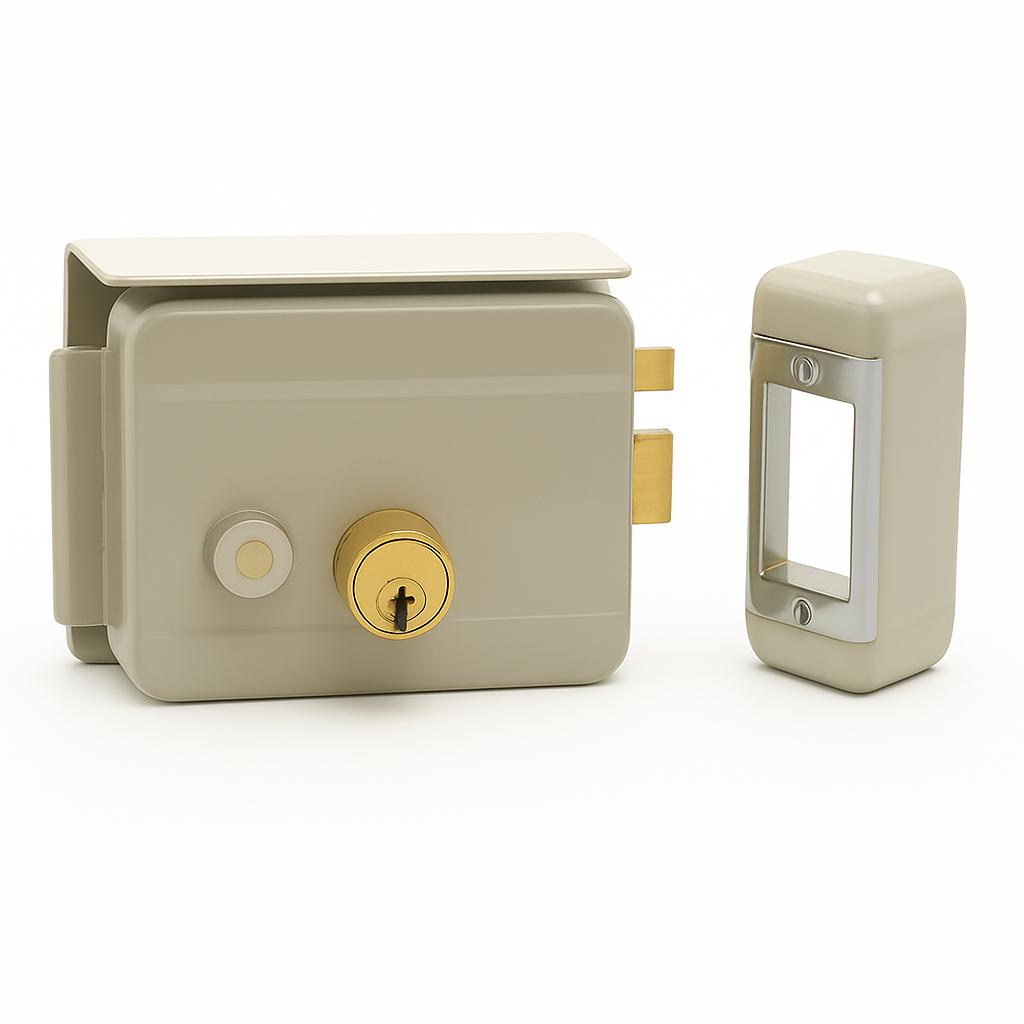

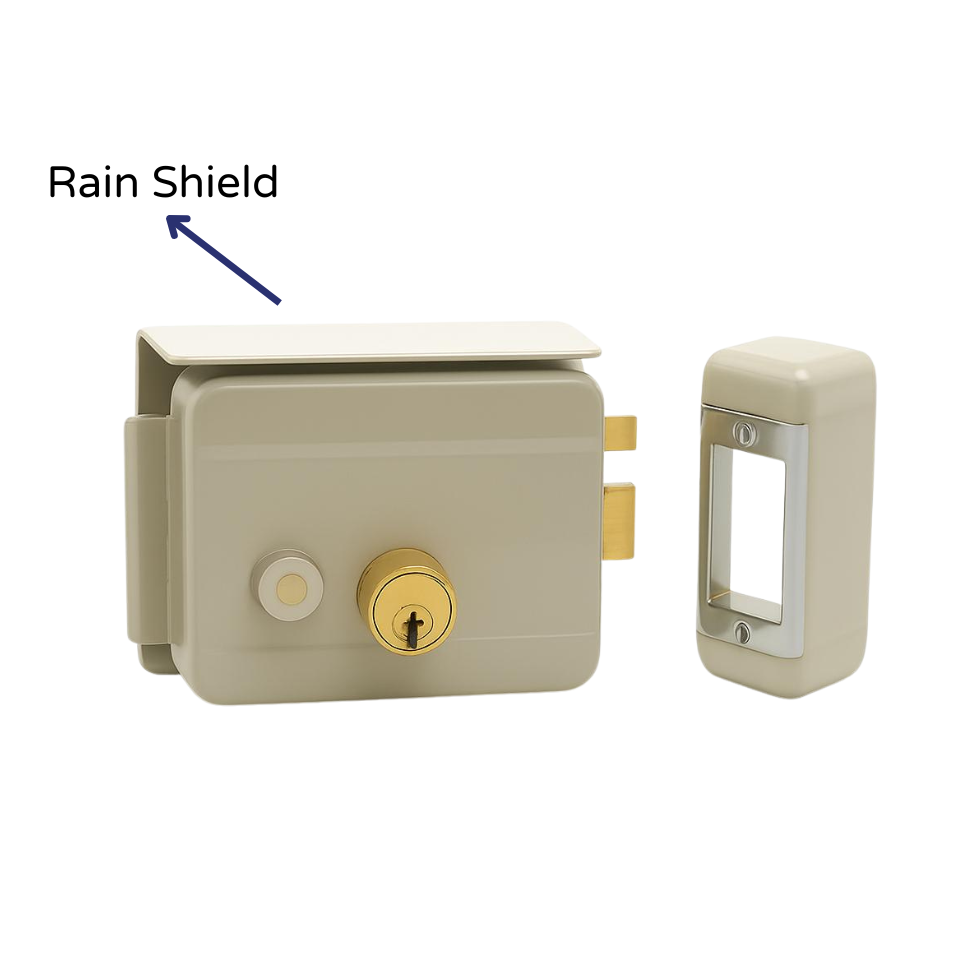

EL-RL200 Electric Rim Lock
The RL200 Electric Rim Lock is a fail-secure locking solution designed for secure entry control in warehouses, small shops, and locations where mortise locks cannot be installed. With a holding force of 440 lbs (200kg), it operates on DC12V with a low current draw of 190mA and is suitable for dry indoor environments (IP40 rating).
This model is unmonitored (no door signal or lock signal) and has no time delay, ensuring immediate locking when power is off. It is compatible with metal or wooden doors and provides reliable security where a surface-mounted lock is required.
• Holding Force: 440 lbs (200kg)
• Power Supply: DC12V
• Current: 190 mA
• IP Rating: IP40 (Dry Indoor)
• Door Status Sensor: N/A
• Door Signal: NO (Unmonitored)
• Time Delay: NO
• Security Type: Power Off Lock (Fail-Secure)
• Suitable For: Warehouse & small shops, metal or wooden doors without mortise lock capability
• Dimensions: 106 (H) x 44 (D) x 130 (W) mm
