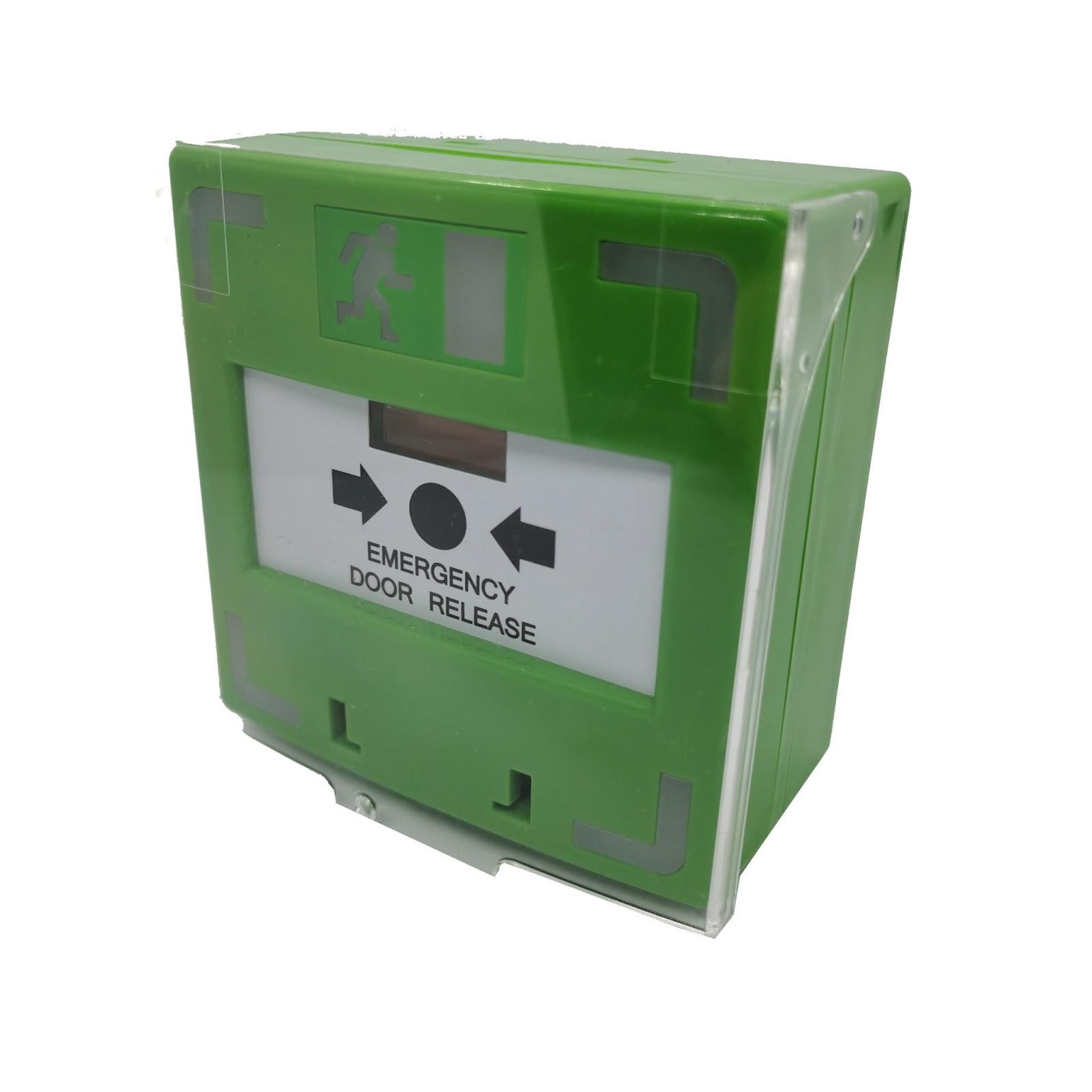

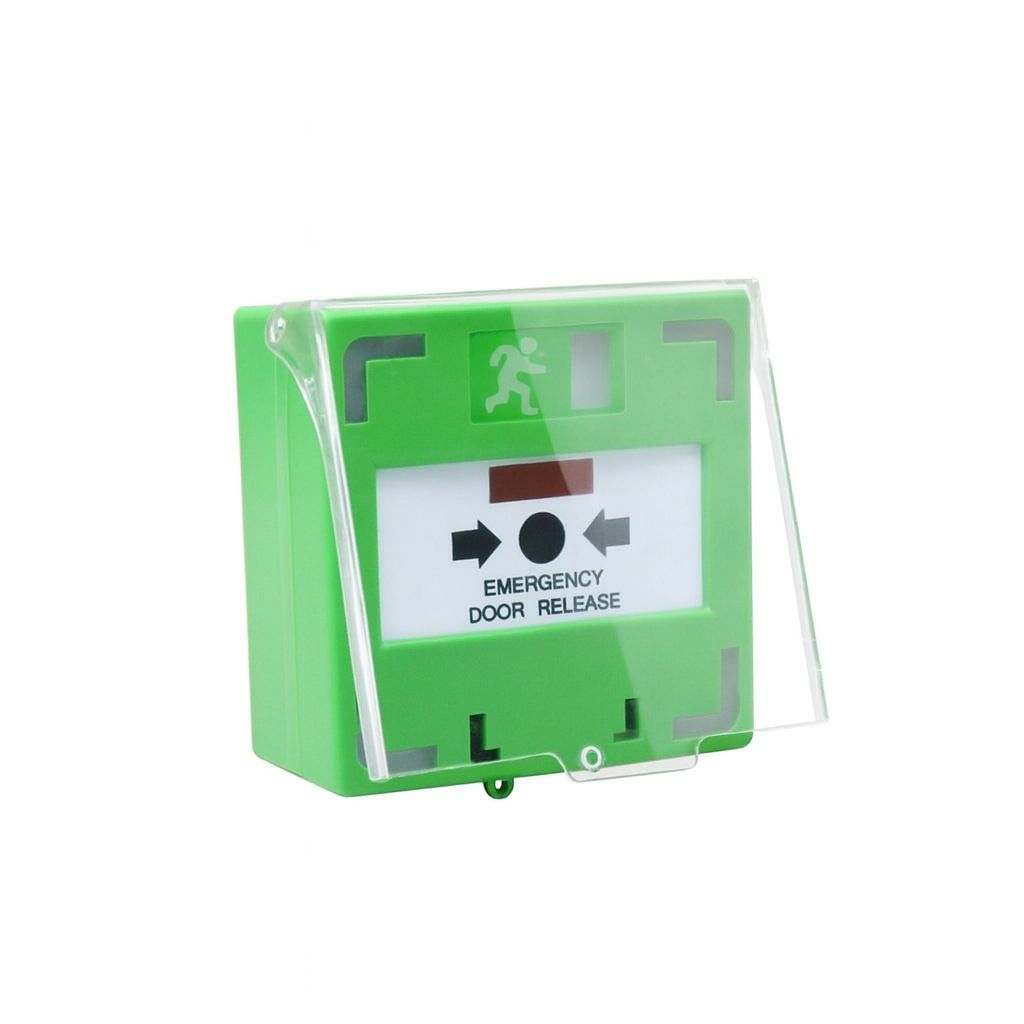

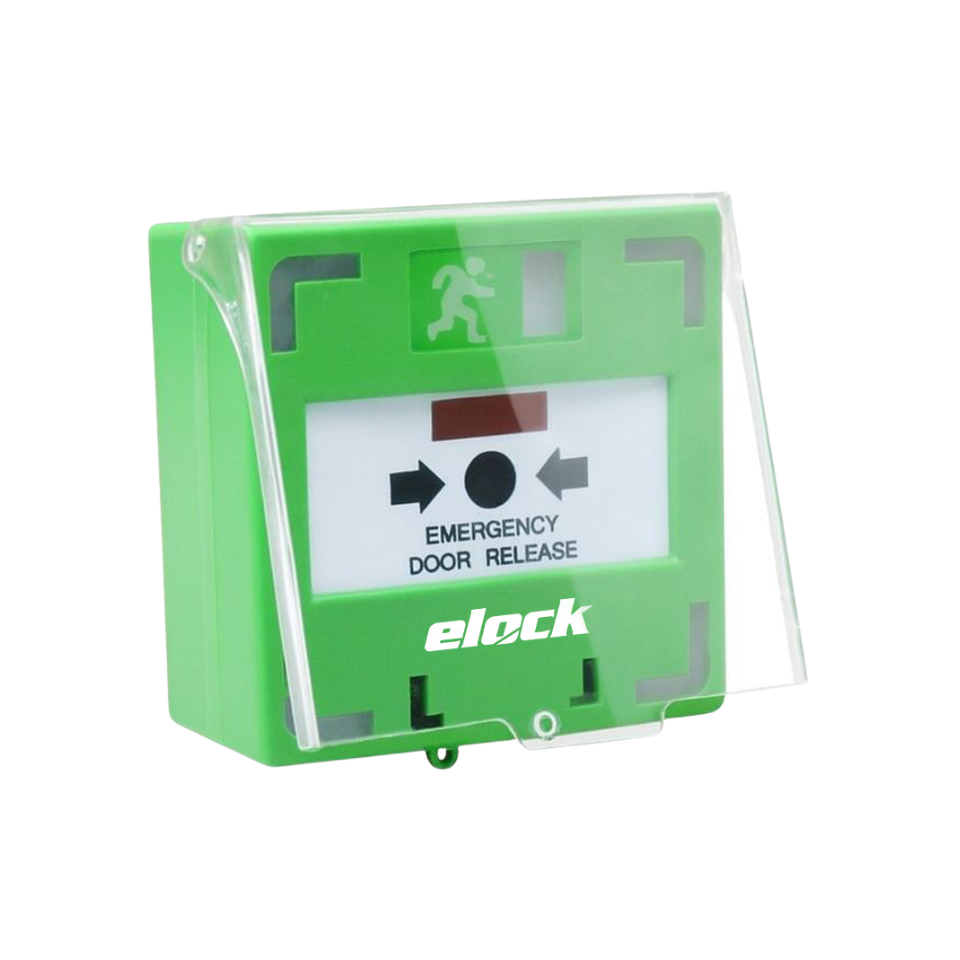

EL-MCP110 Resettable Call Point

Specification:

  • Power Supply : DC 12V ~ DC 24V

Operation Current :

  • DC 12V : 18mA (Standby) / 75mA (Operation)
  • DC 24V : 11mA (Standby) / 41mA (Operation)
  • Buzzer : Set as silent, interval wailing or continuous wailing

Indicator :

  • Dual color (Red and Green)
  • Red indicator to set blinking, off or on
  • Output : N.O / N.C / COM (maximum load 125V/3A)
  • Material : ABS, PC
  • Dimension : 90L x 93W x 45H (mm)
  • Weight : 208g (including wrapping)

Key Features:

  • Resettable design. EL-MCP110 obvious indicators around the edges of the unit.
  • Press the pressing plate to enable the output function.
  • Pressing plate with status (green and red) shown.
  • Reversionary key with non-slip design.
  • Built-in buzzer status.
  • Input power range from DC12-24V to connect with all types of fire alarm system.
  • Easy to assemble, outer case without screws, 3 set of output points to connect other equipment, embedded or surface installations to select.
