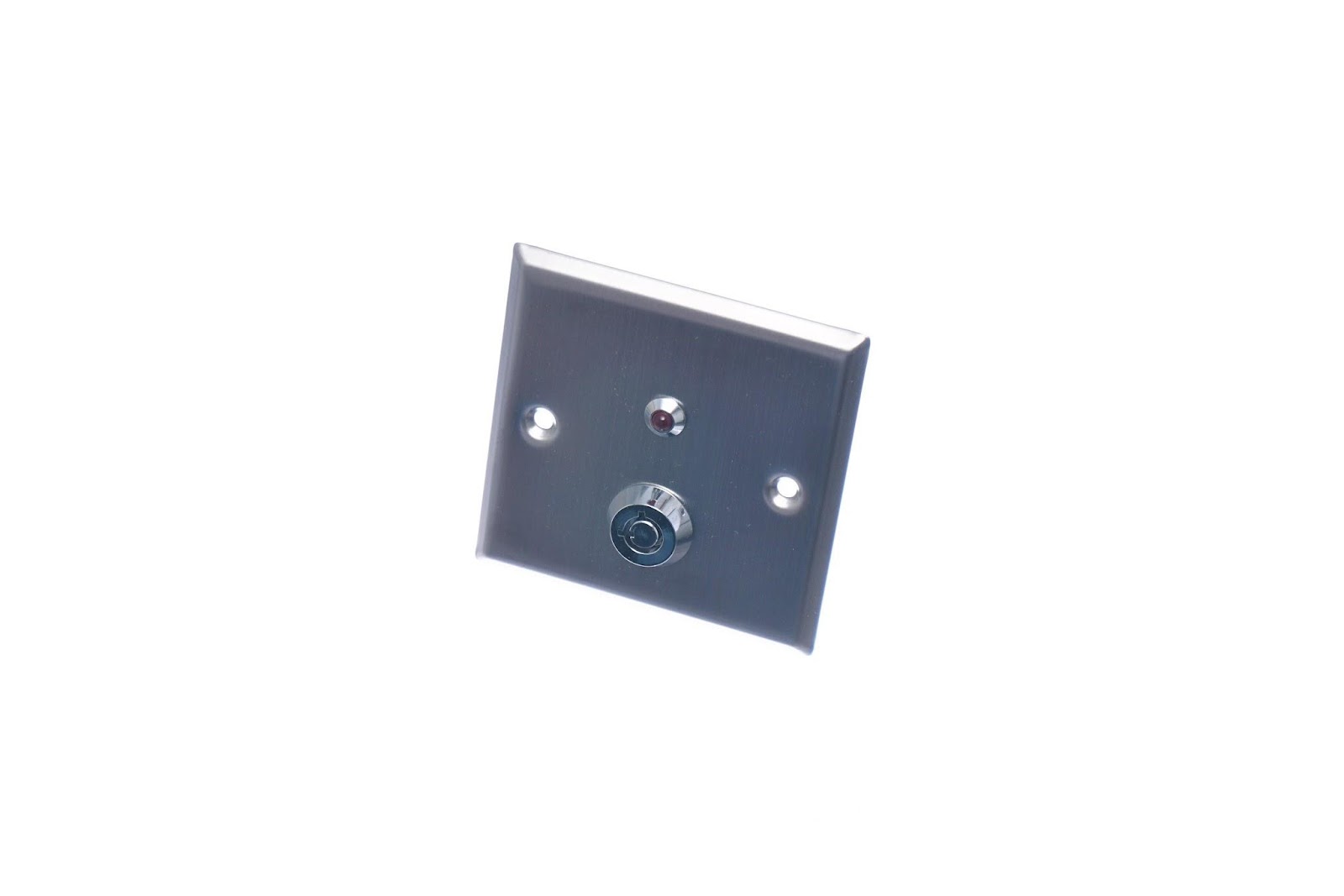

EL-KS3L Stainless Steel Door Release Key Switch (LED)

The EL-KS3L is a door release key switch with LED indication. Use key to release door in case of panic/emergency.

Specification:

  • Size : 86mm(L) x 86mm(W) x 20mm(H)
  • Current Rating : 3A@36VDC
  • Max Operating Temp : 10 ⁰C~ +55 ⁰C
  • Panel Material : Stainless Steel Panel
  • Standard Structure : Stainless Steel Panel with Key
  • Contact : COM, NC, NO, Tamp, -LED+
  • Operating Humidity : 0 – 95%
  • Weight : 0.18Kg
  • Product Code: EL-KS3L
