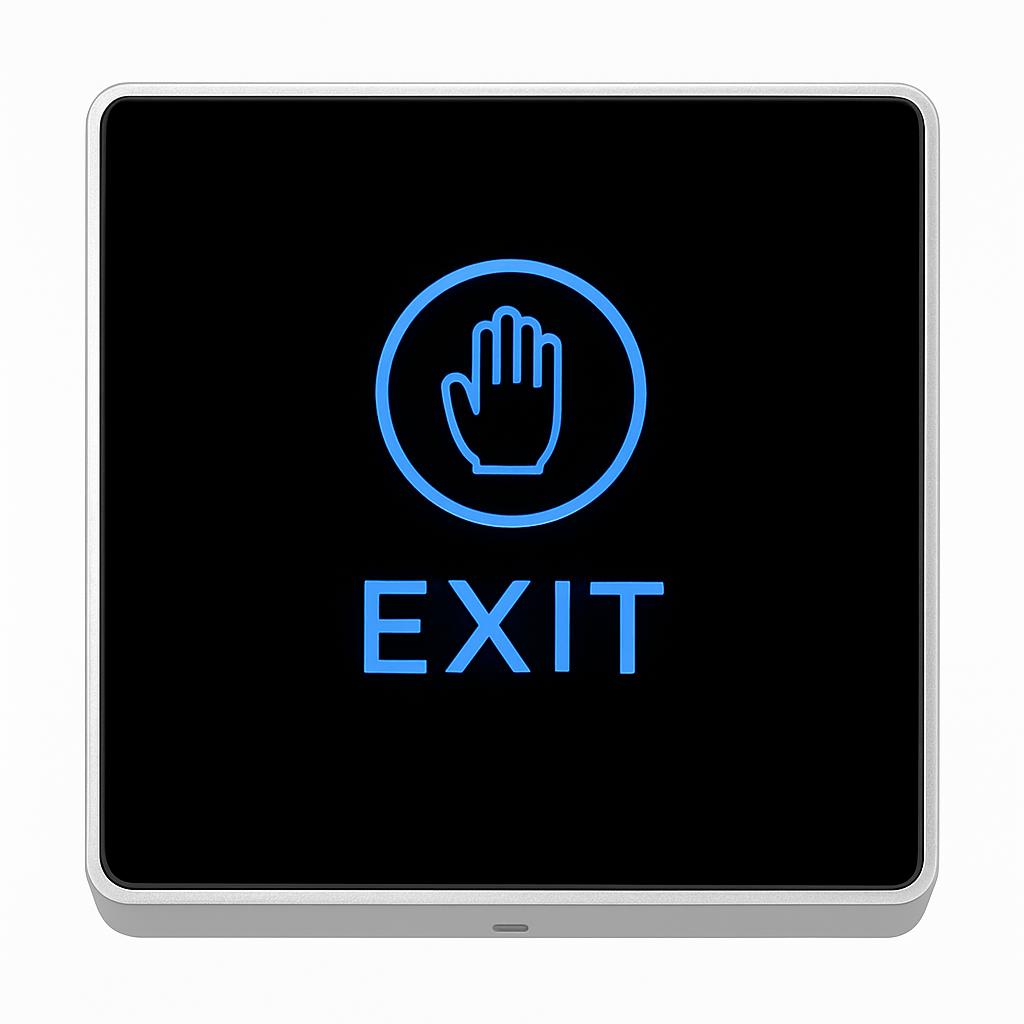

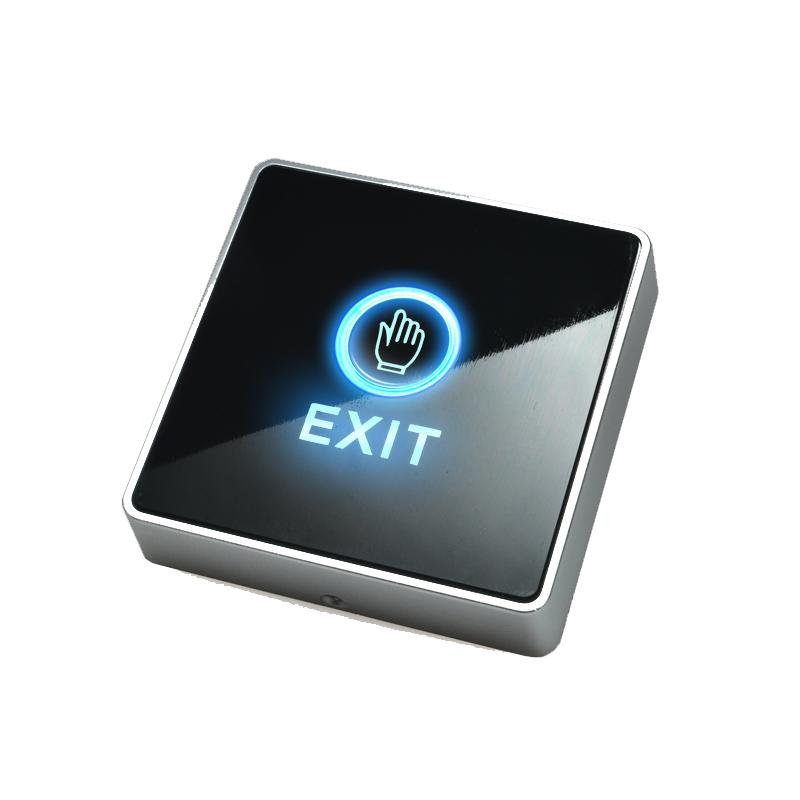

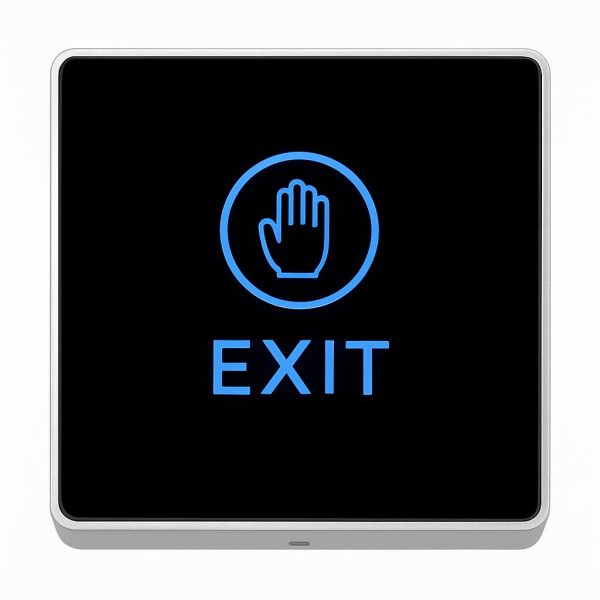

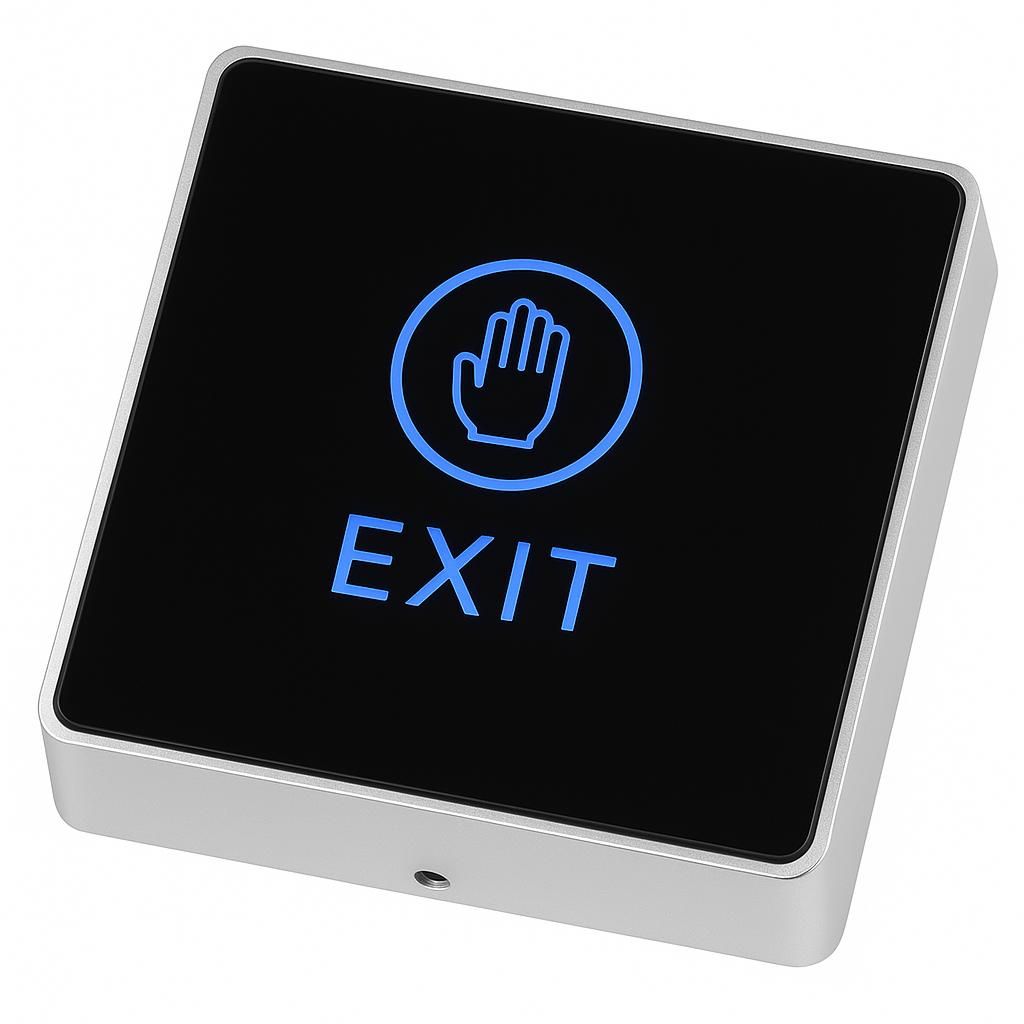

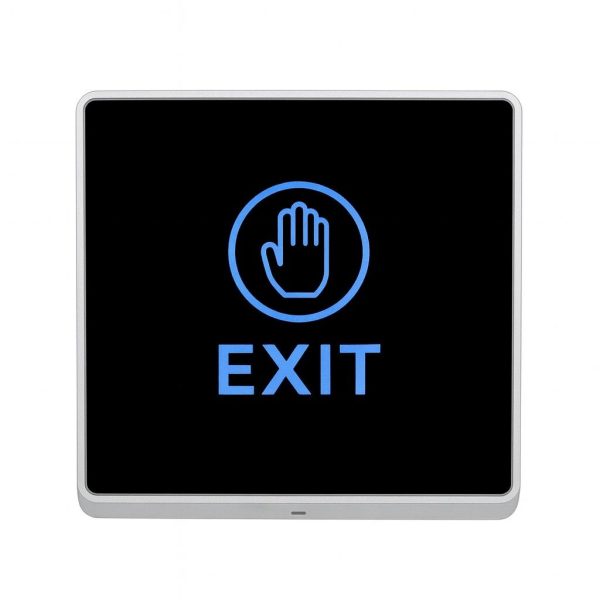

EL-EC2 Touch Exit Button

The EL-EC2 is a modern and durable touch-to-exit button designed for indoor use. Utilizing capacitive touch technology, it offers a smooth and responsive user experience. It is fully compatible with any access control system, functioning as a reliable door release solution.

Built with a 304 stainless steel panel, the EL-EC2 is not only sturdy but also aesthetically refined. It features a static LED indicator for clear visibility and operation status. With an IP40 rating, this model is suitable for dry indoor environments only.

The device supports N.O., N.C., and COM output contacts, ensuring flexible integration options. It has been tested for 100,000 mechanical cycles, meeting durability expectations for frequent use.

– Power Supply: DC12V / DC24V
– Contact Type: N.O. / N.C. / COM
– Material: 304 Stainless Steel Panel
– LED Indicator: Static LED
– IP Rating: IP40 (Dry Indoor Use)
– Mechanical Life: 100,000 cycles (Aging test qualified)
– Dimensions: 86 (H) x 20 (D) x 86 (W) mm

Ideal for indoor environments that require a sleek, reliable, and easy-to-use door release solution.
