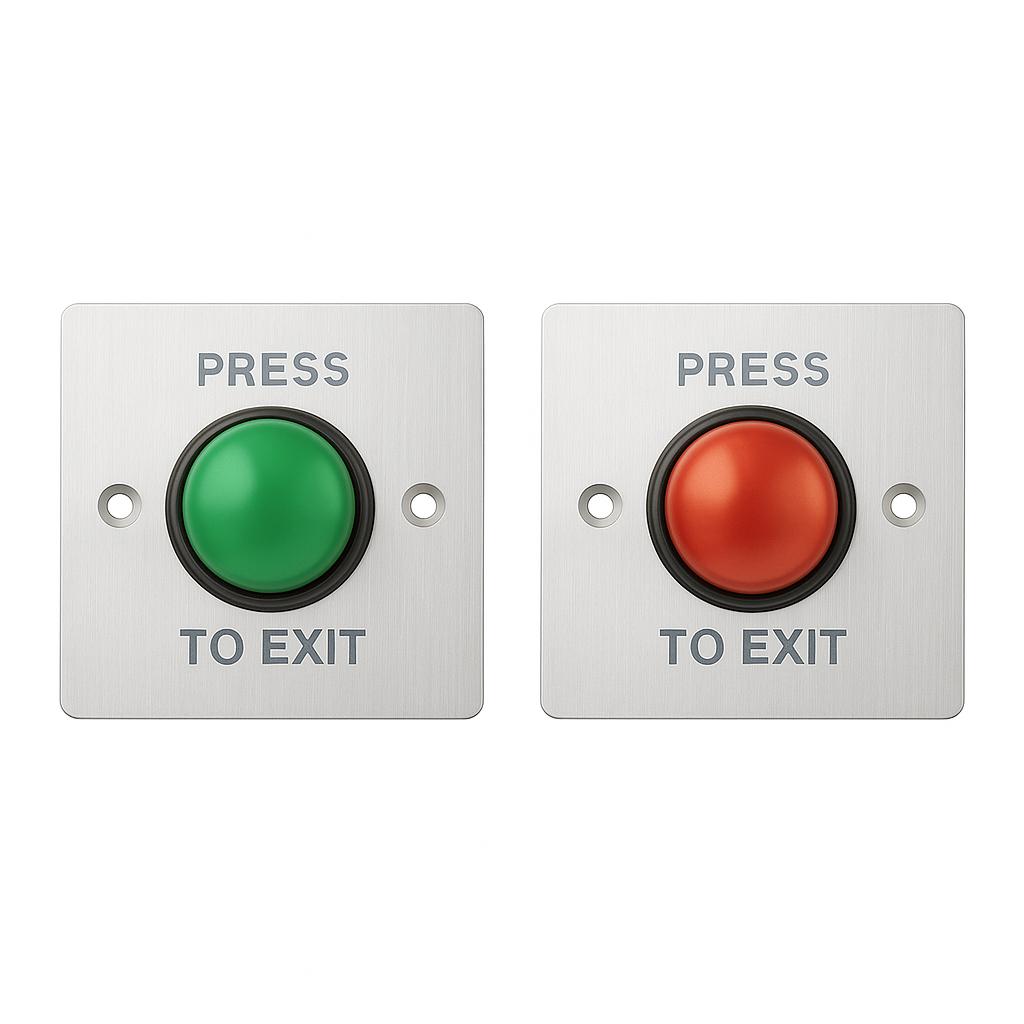

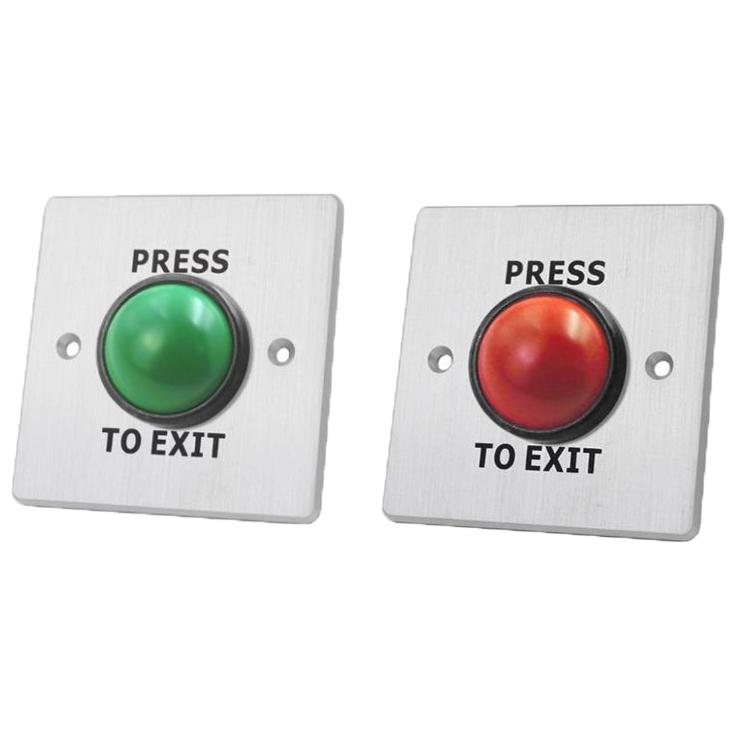

EL-A870M5 Alumimum Alloy Exit Button

EL-A870M5 series button is casted by aluminum alloy. 22mm φ dome mushroom plastic switch is easy-to-install. The superior design of the buttons and quality construction offer good market feedback.


  • Dimension: 115*70*25m (A870M5)
  • Standard Structure: Aluminum Alloy Panel, Plastic Button
  • Panel Material: Aluminum Alloy Panel, Sandblast Finished
  • Current: 3A@36VDC Max
  • Output Contact: NO/NC/COM
  • Mechanical Life: 500,000 tested
  • Weatherproof Rating: IP65
  • Operating Temperature: 10‐55℃ (14-131F)
  • Operating Humidity: 0-95% (non-condensing)
  • Weight: 0.13kg
