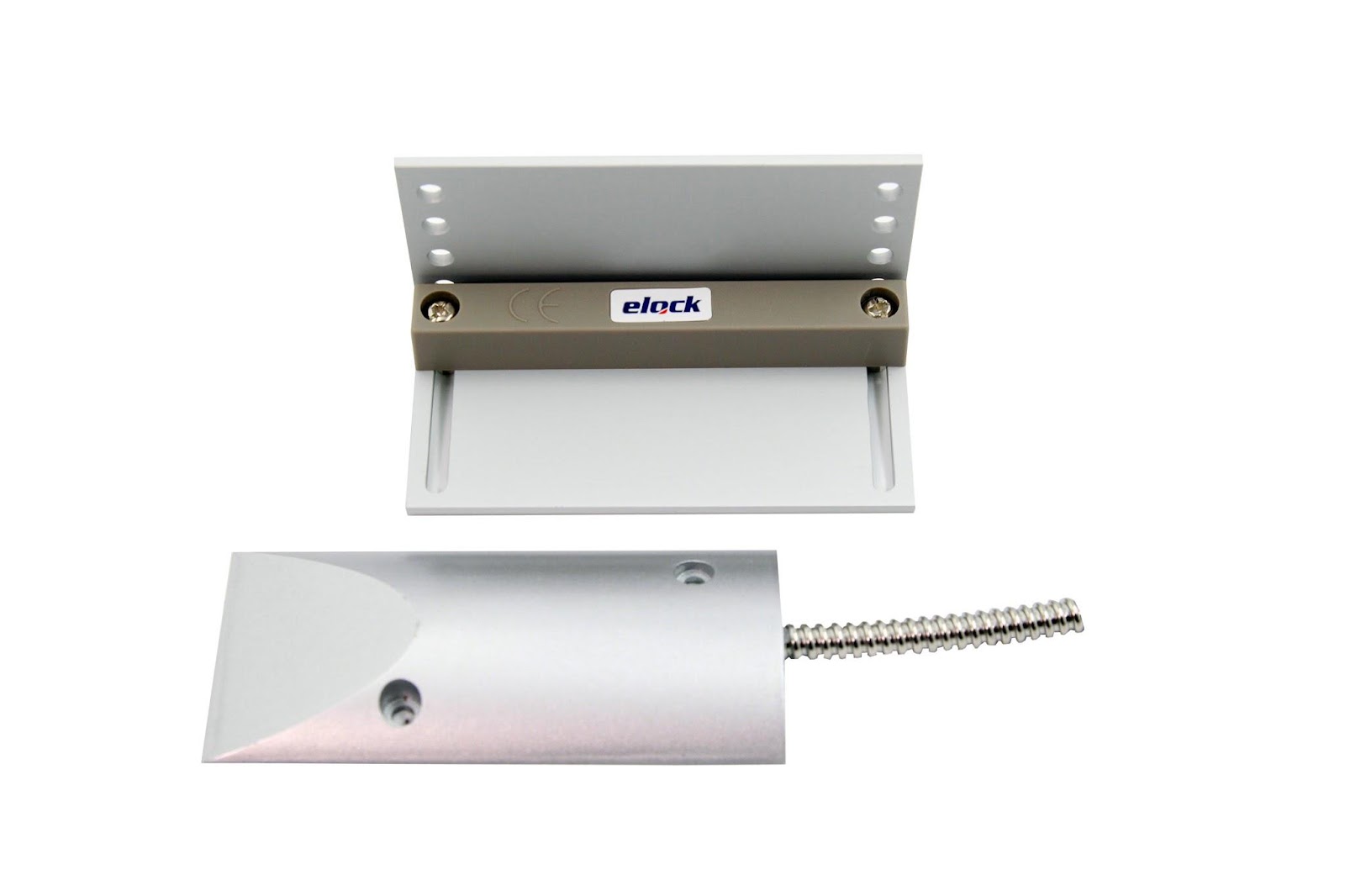

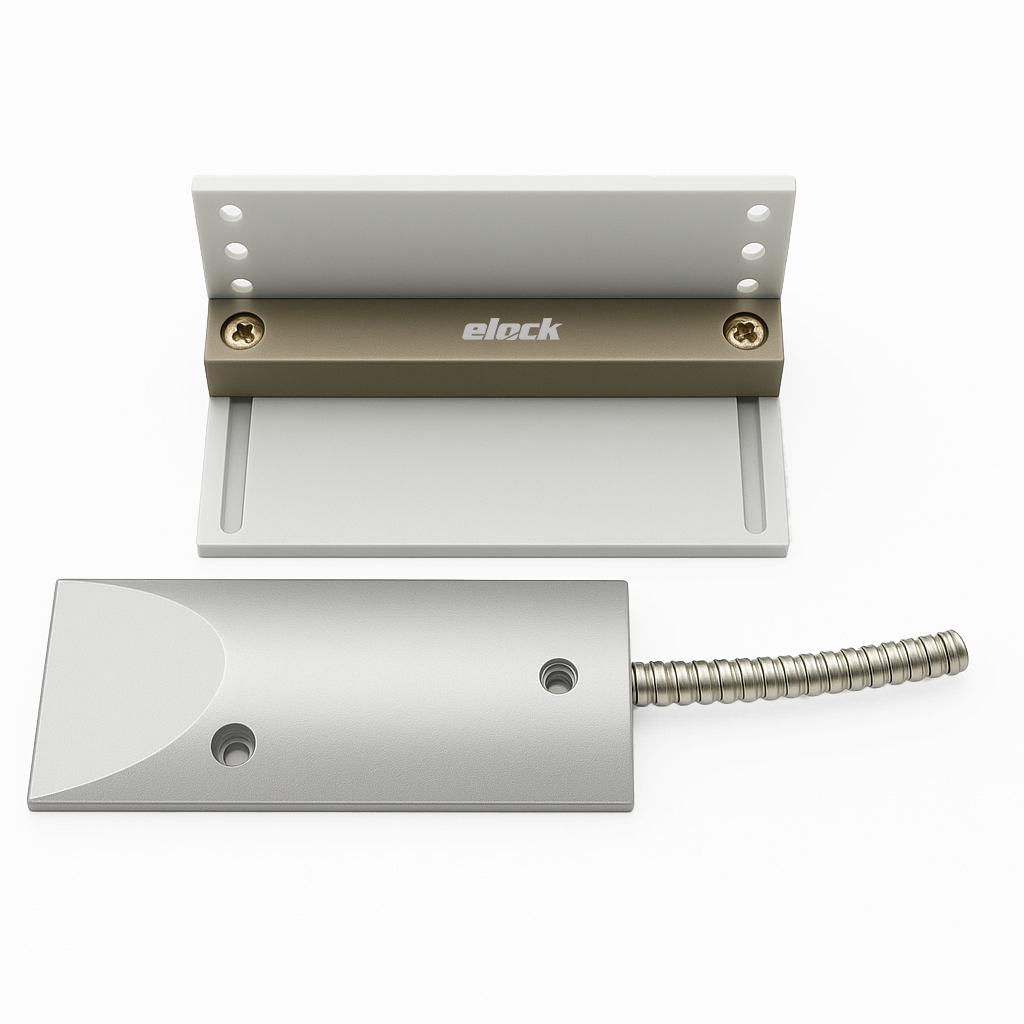

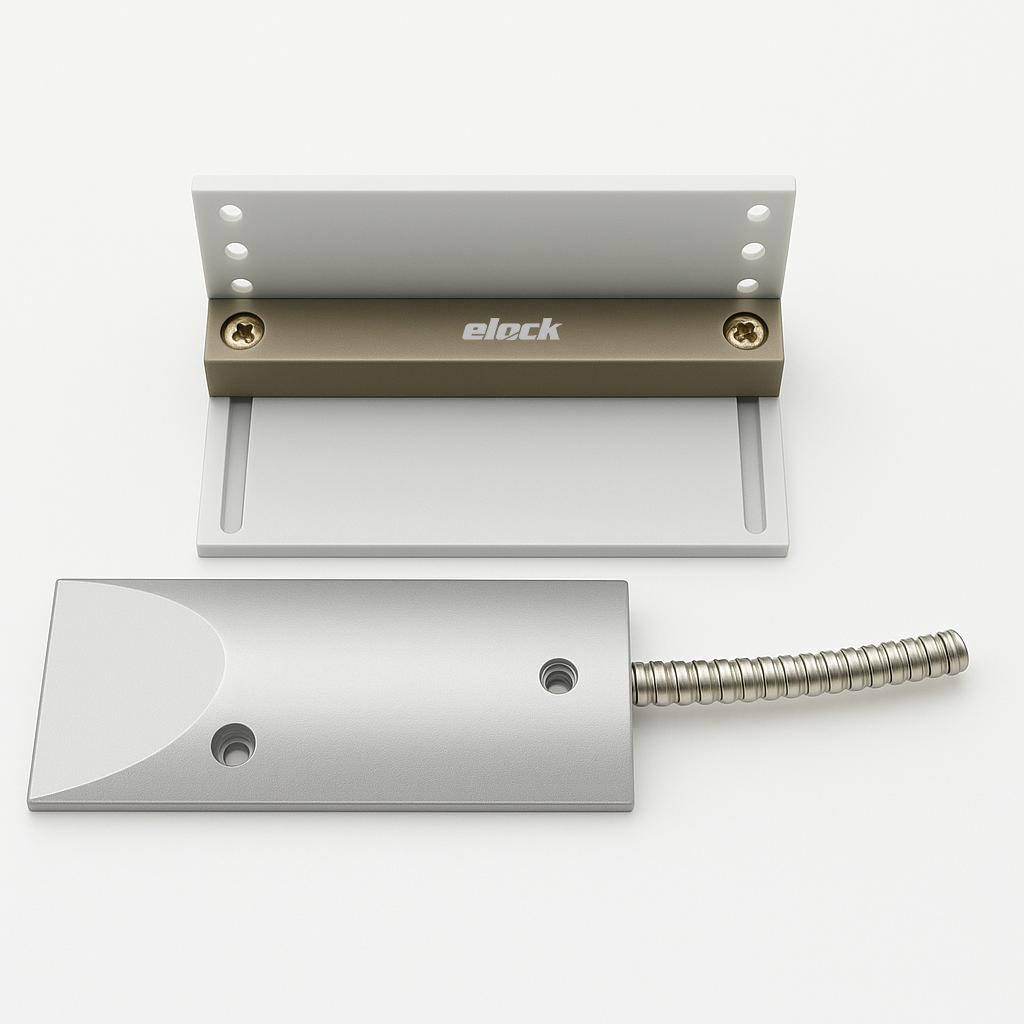

EL-820R Roller Shutter Sensor

The EL-820R is a floor mount sensor device used for roller shutter system.


  • Maximum Contact Rating: 100VDC 0.5A 10W
  • Dimension:
    • Housing: 106mm x 47mm x 10mm
    • Bracket: 100mm x 50mm x 50mm
    • Magnet: 100mm x 12.7mm x 13.3mm

Key Features:

  • Universal magnet for flexible mounting
  • Cast aluminum casing for harsh environment
  • 16” armored cable
  • Standard gap 3” for close loop
  • Standard gap 2 1/2” for open loop
  • Optional L bracket

Download Our Data Sheet Here
