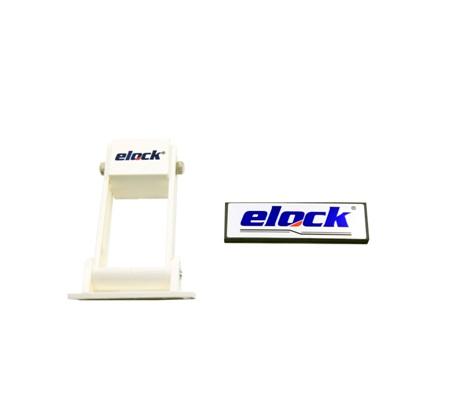

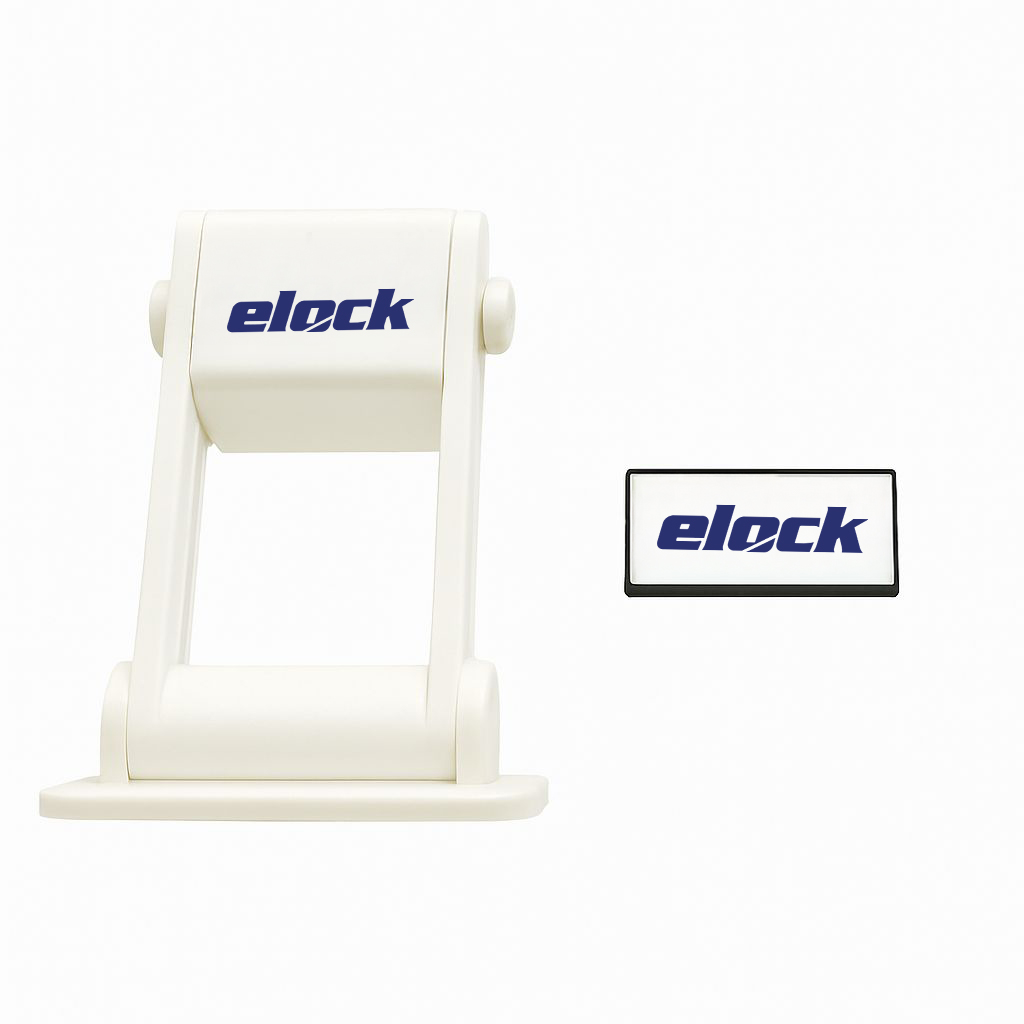

EL-810R Overhead Roller Shutter Sensor
The EL-810R is a specialized roller shutter sensor designed for secure monitoring of industrial and commercial shutter doors. With a maximum gap of 90 mm, it provides accurate detection between the reed sensor and magnet. The device features a passive design (powered via alarm system), offering instant response upon door opening. Built with ABS plastic housing and rated IP44 (splash resistant), the EL-810R ensures reliable performance in a variety of environments.
• Contact Rating: 0.5A @ 100V DC / 10W max
• Maximum Gap: ≤ 3.54 inches (90 mm) between reed sensor and magnet
• Connection: Wired output to alarm system
• Power: Passive sensor (powered via alarm system)
• Response: Instant detection upon door opening
• Mounting Location: Reed sensor on ground, magnet on roller shutter door
• IP Rating: IP44 (Splash Resistant)
• Material: ABS Plastic
