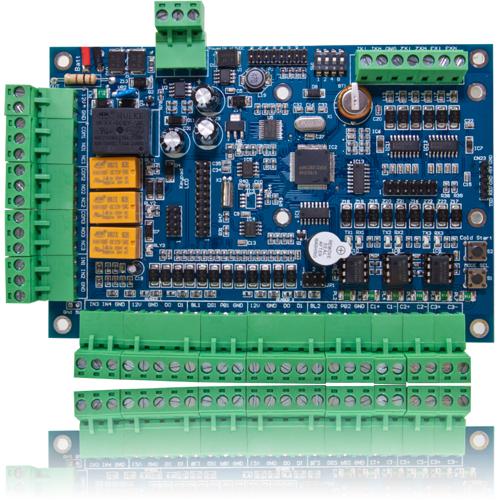

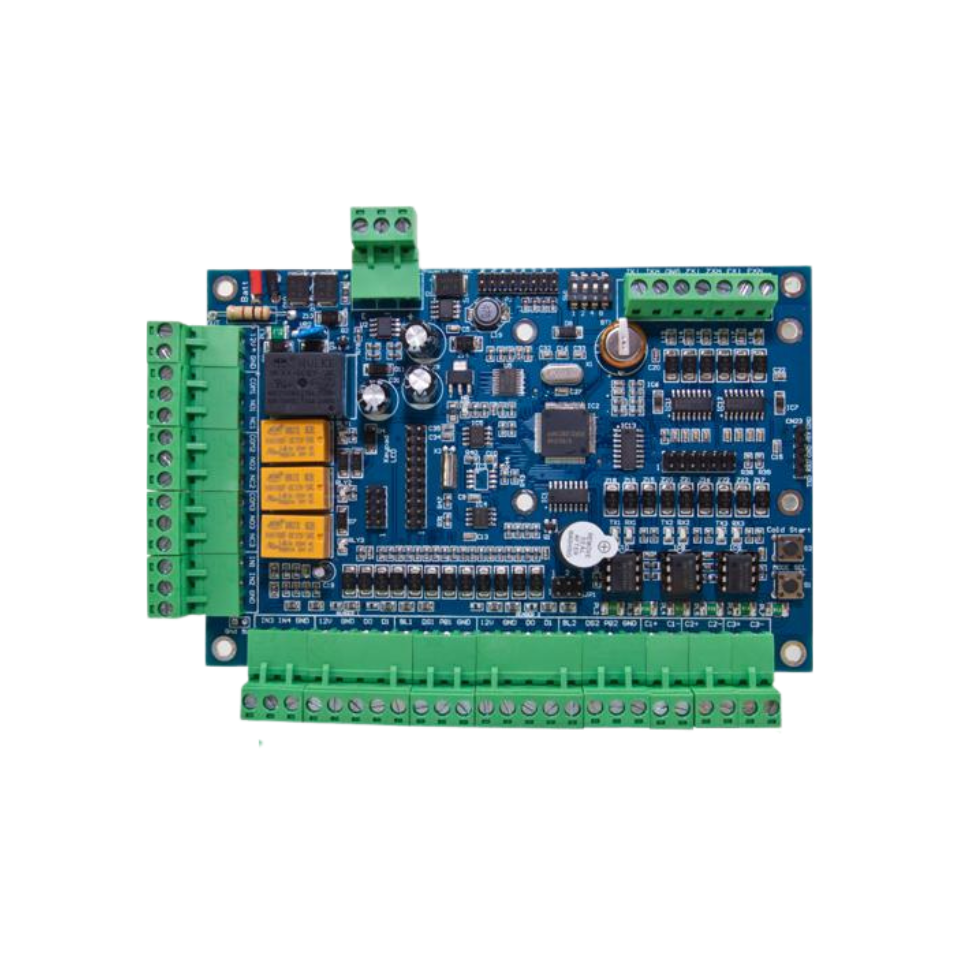

EL-2000 AxSys Access Control

EL-2000 is a door access control solution system. The system support RS232, RS485 and TCP/IP network connection.

EL-2000 controller support only 2 readers, which can easily to configure as single door with IN & OUT reader connection, two doors with reader as IN and exit push button as OUT and Two door emergency / fire controls.

EL-2000 controller is designed base on open platform concept, it allows seamless integration with RFID proximity readers, Mifare Smart Card readers, Integrated Keypad readers, Biometric readers.

EL-2000 Access Control Management Software (AxSys) allows system user to manage pass card database and maintenance of database, reporting and monitoring of pass card transaction events.

System Features:

  • Support up to 10,000 card users Support up to 30,000 off-line transaction events
  • Support 2 wiegand interface card reader inputs
  • Support integrated keypad reader (Rosslare, HID)
  • Support up to 10 sets of facility code definition
  • Support up to 128 sets of time interval, time zone and access level definition
  • Definable bits setting on wiegand reader inputs
  • Door exit push button with Time zone controls
  • On board buzzer for audible sound alert and on board real time clock to maintain accuracy of system date time.
  • LED and Buzzer controls on standard wiegand interface reader etc. (Can be viewed through the Datasheet link given below)

Download Our Data Sheet Here
